One Drum Marine Hydraulic Winch With Class Approved certificates

Place of Origin: China
Driven: Hydraulic
Working Load: 20-650KN
Norminal Speed: 6-15m/min
Rope dia.: φ5-56mm
Package: Export standard
Certificate: CCS, BV, ABS, DNV, KR, NK, RINA, GL, LR
  • Deyuan Marine

Availability:

Product Description

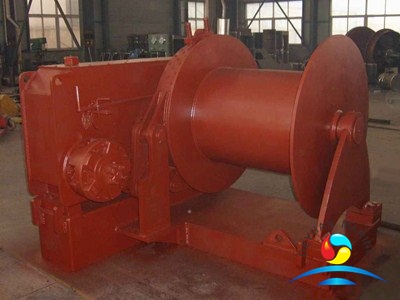

One Drum Marine Hydraulic Winch


Marine winch is an important equipment which with lifting and pulling function that used on ship, dock or shore, in the port, on offshore platforms etc.

What’s more, the marine winch can also bring large fishing nets and cages up from the depths of the sea and onto the deck of a vessel.

The most common location for the winch to be mounted is on the rear of the deck, and typically behind the control or Captain's house.

The winch is usually divided into electric and hydraulic winch.

Hydraulic winch is the one with large rated road, in general, more than 10T to 500T winches can bed designed as hydraulic winch. In order to meet the needs of lifting, traction and rotary operation, there are also double drum and multi drum winches.

Deyuan marine can provide you with all kinds of hydraulic winches with different marine certificates.


One Drum Marine Hydraulic Winch Technical parameters :

NameRated Pull (kn)Rated Speed (m/min)Drum Capacity (m)Motor Power (kw)
20KN 20 ≥12 Φ15*150 11
40KN 40 ≥15 Φ17.5*150 22
50KN 50 ≥15 Φ20.5*180 30
75KN 75 ≥15 Φ26*200 45
100KN 100 ≥112 Φ30*200 45
160KN 160 ≥12 Φ30*250 75
200KN 200 ≥9.6 Φ41*250 75
250KN 250 ≥9.6 Φ44.5*250 90
315KN 315 ≥7.8 Φ52*250 90
400KN 400 ≥7.8 Φ56*250 110
450KN 450 ≥7.8 Φ56*250 132
500KN 500 ≥7.8 Φ56*250 132
560KN 560 ≥6 Φ56*250 132
600KN 600 ≥6 Φ56*250 132
650KN 650 ≥6 Φ56*250 132

More hydraulic winch can be offered,pls contact us for more details.
