Product Description

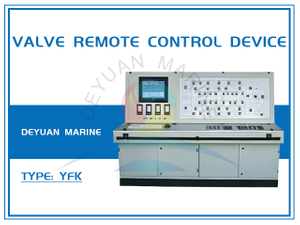

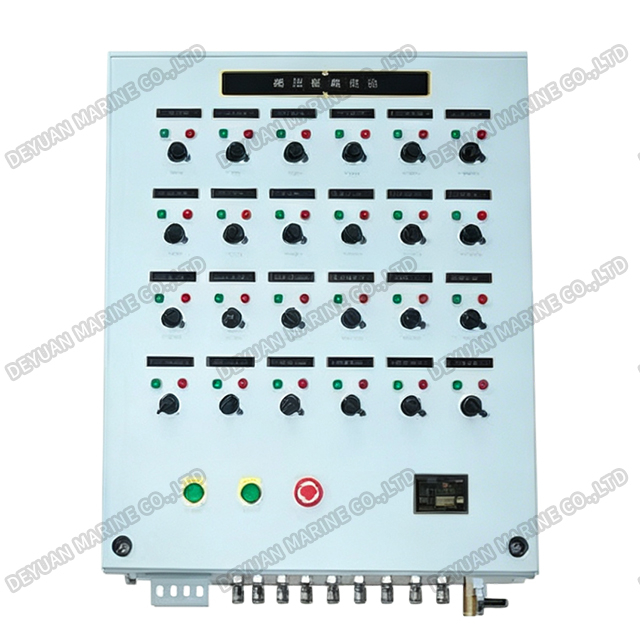

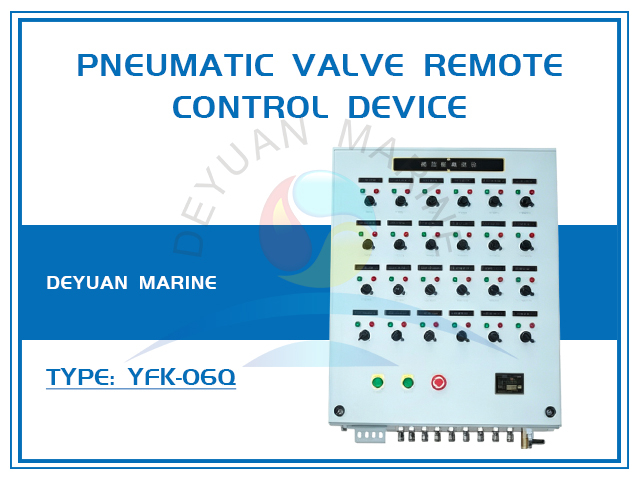

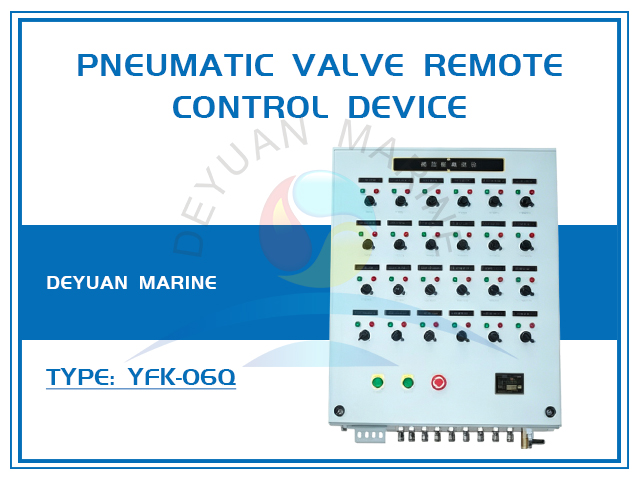

Marine Pneumatic Valve Remote Control Device
Product Introduction:
Pneumatic valve remote control device consists of control console, solenoid valve box, pneumatic valve, air supply etc. The device carries out remote collective control to the valves by taking compressed air as power. The device has the simple structure, easy operation, safe and reliable etc. It is suitable for control the piping valves on/off in the ships, such as bulk carrier, container vessel.
Main Technical Specification:
| Model | YFK-06Q |
| Power supply | AC220V 50Hz |
| Working temp. | -10~55℃ |
| Relative humidity | ≤95% |
| Air pressure | 0.5~0.7MPa |
| Protection | IP22 (control console); IP55/68(Electric valve) |
| Controlling points | no limit |
| Nominal diameter | DN50~350mm |

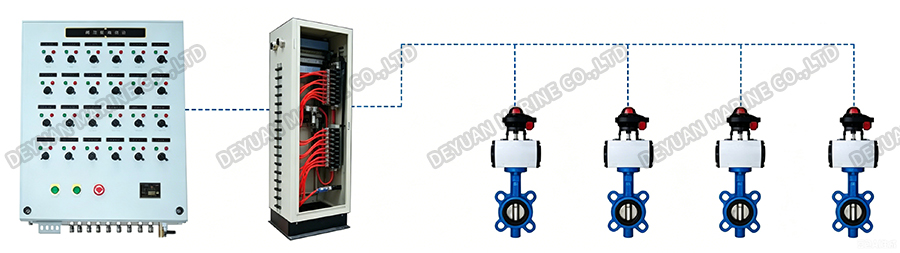

General Diagram:
