Product Description
Marine Manual Hydraulic Valve Remote Control Device
Product Introduction:

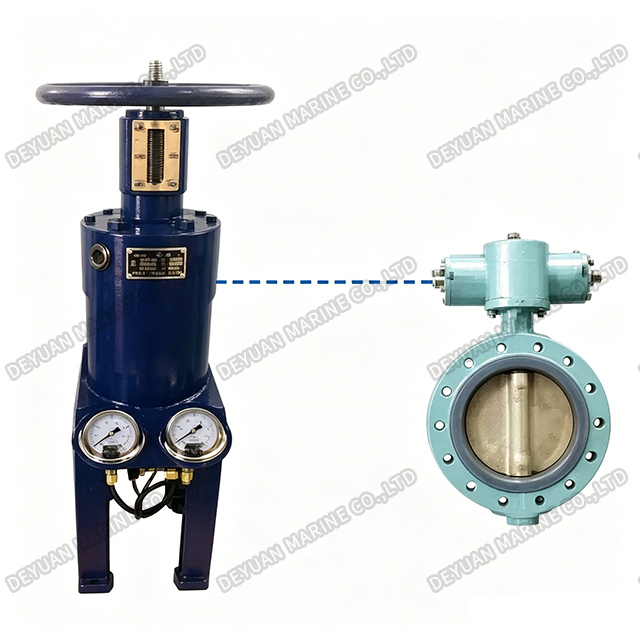

The manual valve remote control device is composed of a fixed Hand pump, a hydraulic actuator and a butterfly valve. The device is operated by a single valve as a remote control object. It has compact structure, simple operation and operation.Maintenance is convenient. It is suitable for the remote opening and closing control of special position valves in oil tankers, chemical tankers, oil platforms and other ships.
Main Technical Specification:
| MAINTECHNICALSPECIFICATION | |
| Model | YFK-06S |
| Working temp. | -20~70℃ |
| Working pressure | 6.3MPa |
| Nominal diameter | DN50~800mm |
| FIXEDMANUAL HYDRAULICPUMP | |
| Model | SYB-01 |
| Working pressure | 6.3MPa |
| Discharge capacity of pump | 20ml/r |
| Effective volume | 3.6L |
| Mounting type | Fixedtype |

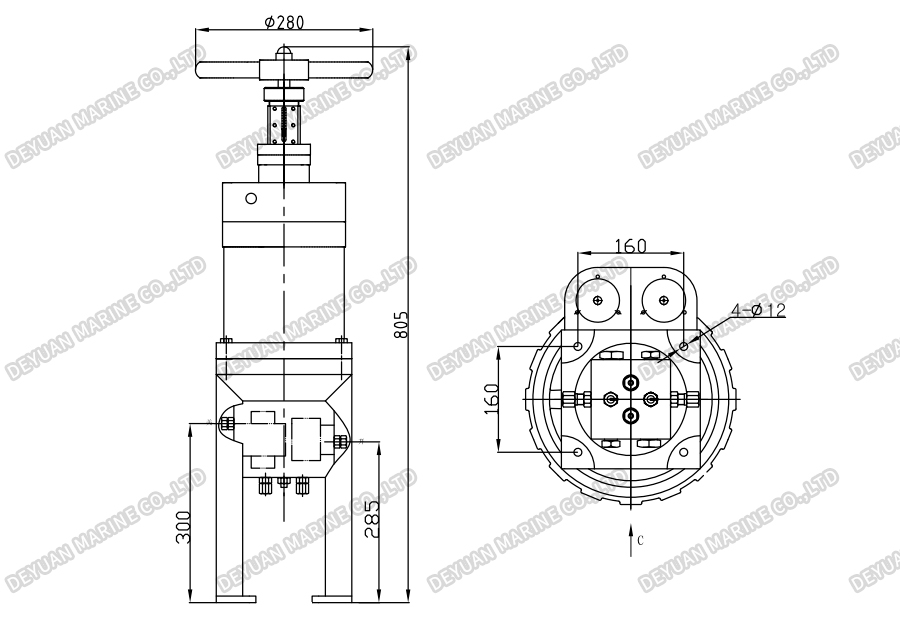

Drawing:
