Product Description

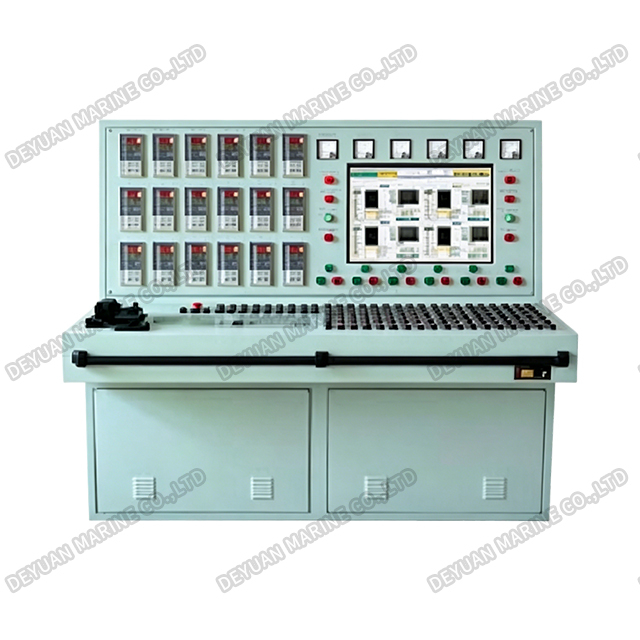

Marine Electric Valve Remote Control Device
Product Introduction:
Electric valve remote control device consists of remote control console, electric driving head, valve, power etc. The device carries out remote collective control to the valves by taking alternating current as power. The device has the characteristics of flexible configuration, easy installation and convenient operation etc. It is suitable for control the pipeline valves on/off in the ships, such as dock, bulk carrier, container vessel, engineering vessel, barge etc.
Main Technical Specification:
| Model | YFK-06D |
| Power supply | AC380V/440V 50/60Hz |
| Working temp. | -10~55℃ |
| Relative humidity | ≤95% |
| Protection | IP22 (control console); IP55/68(Electric valve) |
| Controlling points | no limit |
| Nominal diameter | DN50~1200mm |
| Type of actuator | JQ or QW or PSQ or UM3 type |

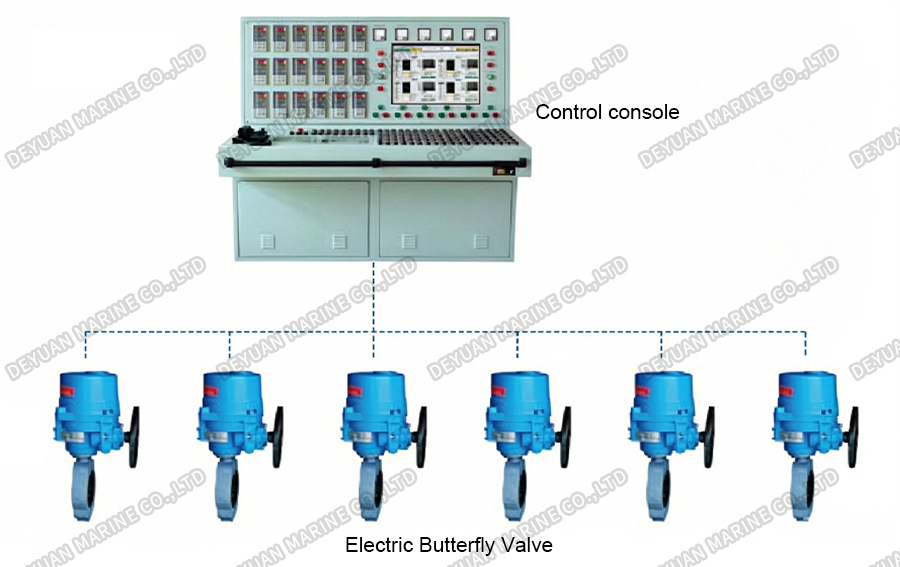

General Diagram:
