Marine Aluminum Anodes for Hull

  • Deyuan Marine
  • Material: Aluminium alloy(Al-Zn-In)
  • Standard: U.S.Mil-A-1800K/W
  • Application : cathodic protection, Anti-corrosion
  • Certificate: CCS,BV,ABS etc
  • Shape: As Customer Required
  • Payment terms: TT,LC,Paypal,Credit card,western union

Product Description

Marine Aluminum Anodes for Hull
Our  aluminum anodes  are fabricated as per the standard of   GB 4948 or America standard.If required,CCS,BV,ABS certificate can be provided.
With the features of light weight,high capacity ,simple and economic,
Aluminum Anodes were widely used  for Hull, Ballast tanks, offshore engineering, Harbor Structures, Sea water cooling system, and submerged pipelines.
Deyuan marine offer a variety sizes &shapes of Aluminum Anodes for option,OEM service also accepted,just send us your drawing and logo.If you
are interested,pls feel free to contact our sales team for further discuss.

Aluminum Anode for hull(welding type,single steel core)
Model Size/㎜ Dimension of steel core Net weight(kg) Gross
Weight/ kg
A×B×C D E F G
AH-1 800×140×60 900 45 5--6 8--10 15.4 17
AH-2 800×140×50 900 45 5--6 6--8 13.4 15
AH-3 800×140×40 900 45 5--6 5--6 10.5 12
AH-4 600×120×50 700 40 5--6 6--8 9 10
AH-5 400×120×50 470 35 4--5 6--8 5.8 6.5
AH-6 500×100×40 580 40 4--5 5--6 4.6 5.5
AH-7 400×100×40 460 30 4--5 5--6 4.1 4.5
AH-8 300×100×40 360 30 3--4 5--6 3.2 3.5
AH-9 250×100×40 310 30 3--4 5--6 2.2 2.5
AH-10 180×70×35 230 25 3--4 5--6 1 1.2

Aluminum Anode for hull(welding type,double steel core)
Model Size/㎜ Dimension of steel core Net weight(kg) Gross
Weight/ kg
A×B×C D E F G
AH-11 300×150×50 360



5.8
AH-12 300×150×40 360



4.6

Aluminum Anode for hull(bolt-on type)
Model Size/㎜ Dimension of steel core Net weight(kg) Gross
Weight/ kg
A×B×C D E F G
AH-13 300×150×50 250 50 3--4 8--10 5.4 5.8
AH-14 300×150×40 250 50 3--4 8--10 4.4 4.8
Drawing for reference:

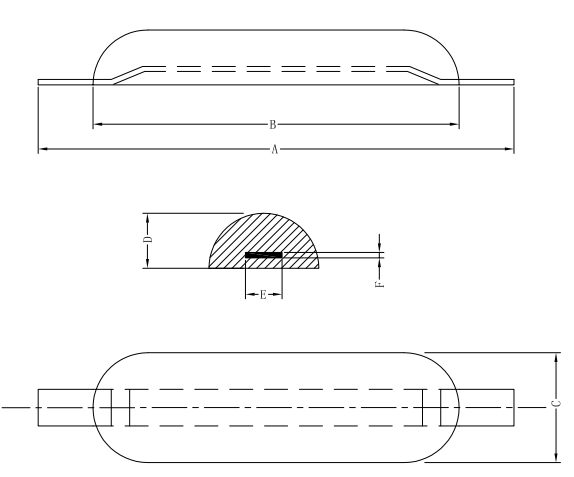

a.welding type,single steel core,Aluminum Anode
Aluminum Anode single steel core

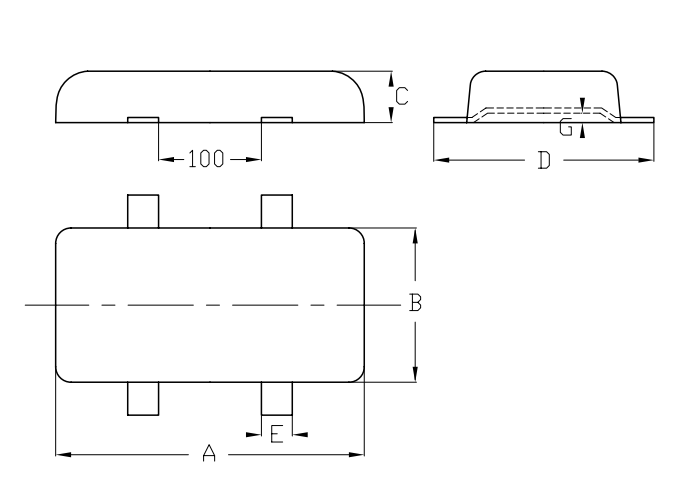

b.welding type,double steel core,Aluminum Anodes
Aluminum Anode double steel core

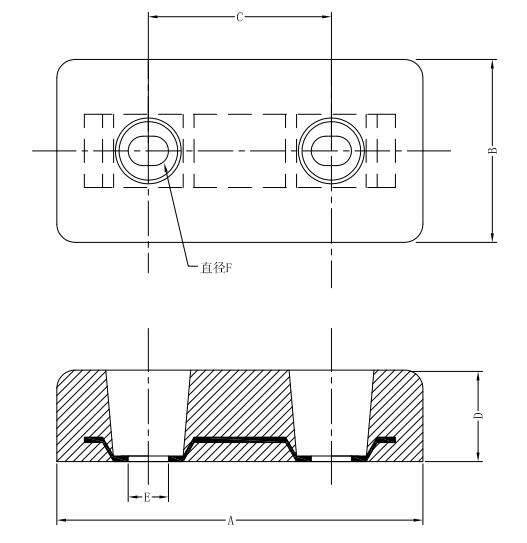

c.bolt-on type,Aluminum Anode
Aluminum Anode bolt on type
