Aluminum Anode for Seawater Cooling System

  • Deyuan Marine
  • Material: Aluminium alloy(Al-Zn-In)
  • Application: Cathodic Protection for Seawater Cooling System
  • Certificate: CCS,BV,ABS etc
  • Packing: on pullet
  • Payment terms: TT,LC,Paypal,Western Union,credit card

Product Description

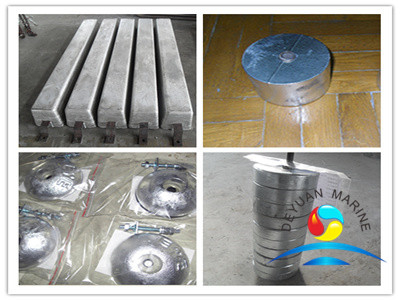

Aluminum Anode for Seawater Cooling System
Deyuan marine offer full range of aluminium anodes which are cast in alloys of aluminium and indiumindium plus additions.
Al-Zn-In and Al-Zn-Hg series are the most common aluminum alloy that used for cathode protection for  seawater cooling system,as usual,we fabricate strip type and disc type aluminum alloy for seawater cooling system,we also can make other types as per your specific drawing based on various uses.
Except for seawater cooling system,anodes also can be deployed on subsea structures,pipelines,platforms,jetties&pontoons,ships and boats hulls etc.

Aluminum Anode for Seawater Cooling System strip type:
model size/mm Dimension of Steel Core net weight(kg) Gross weight/
 kg
A×(B1+B2)×C D E F G
AE-1 1200×(200+280)×150 1400 70 10 8--10 112 120
AE-2 800×(200+280)×150 1000 60 8 8--10 76.2 80
AE-3 1000×(115+135)×130 1200 50 6 8--10 43.2 46
AE-4 500×(115+135)×130 620 50 6 8--10 21.5 23
AE-5 1000×(80+100)×80 1200 30 4 6--8 19 20
AE-6 500×(105+135)×100 620 40 4 8--10 15.2 16
AE-7 500×(80+100)×80 620 30 4 6--8 9.4 10
AE-8 400×(110+120)×50 500 35 3 5--6 6.4 7
AE-9 300×(140+160)×40 360 60 3 5--6 4.5 5
AE-10 200×(90+110)×40 250 30 3 5--6 2.8 3

Aluminum Anode for Seawater Cooling System disc type
model size/mm
Dimension of Steel Core net weight(kg) Gross weight/
 kg
A×(B1+B2)×C C D E F G H
AE-11 300×60 40 80 50 12 6--8 4 11.3 11.5
AE-12 360×40  50 100 70 14 5--6 4 8.8 9
AE-13 300×40   40 80 50 12 5--6 4 7.3 7.5
AE-14 200×50   35 75 45 10 5--6 4 3.8 4
AE-15 180×50  35 75 45 10 5--6 4 3.3 3.5
AE-16 120×100   30 75 45 10 8--10 4 2.3 2.5
