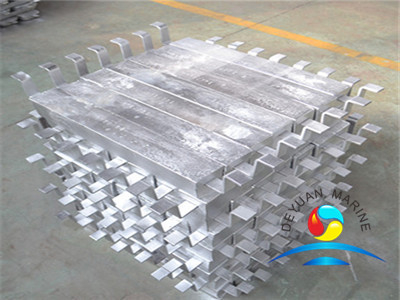

Aluminum Anodes for Ballast Water Tank
Our aluminum anodes are fabricated with high purity Aluminum materia as per ASTM standard,anodes in trapezoid shape are suitable for new vessels, or used to replace existing anodes in old vessels. if needed,CCS,BV,ABS can be provided.To save installation cost and time,we suggest welding type aluminum anodes,of course,we also can design other anodes such as bolt-on type anodes as per customer's requirement.
Aluminum anode chemical composition type for option are as follow:
Al-Zn-In, Al-Zn-In-Cd, Al-Zn-In-Sn, Al-Zn-In-Si, Al-Zn-In-Sn-Mg, Al-Zn-In-Mg-Ti.
Aluminum Anode for Ballast Water Tank:
Type | Size/mm | Dimension of steel cores | net weight(kg) | Weight/ kg |
A×(B1+B2)×C | D | E | F | G | H |
AT-1 | 500×(115+135)×130 | 800 | 50 | 6 | 40 | 60 | 20.5 | 23 |
AT-2 | 1500×(65+75)×70 | 1800 | / | 12 | 20 | 40 | 19.8 | 21.5 |
AT-3 | 500×(110+130)×120 | 800 | 50 | 6 | 40 | 60 | 18 | 20 |
AT-4 | 1000×(58.5+78.5)×68 | 1300 | / | 12 | 20 | 40 | 12 | 13.2 |
AT-5 | 800×(56+74)×65 | 1100 | / | 12 | 20 | 40 | 9 | 10 |
AT-6 | 1150×(48+54)×51 | 1450 | / | 12 | 15 | 35 | 7.6 | 9 |
AT-7 | 250×(80+100)×85 | 310 | 25 | 4 | 6--8 | 0 | 4.8 | 5 |
AT-8 | 200×(70+90)×70 | 260 | 25 | 4 | 6--8 | 0 | 2.8 | 3 |

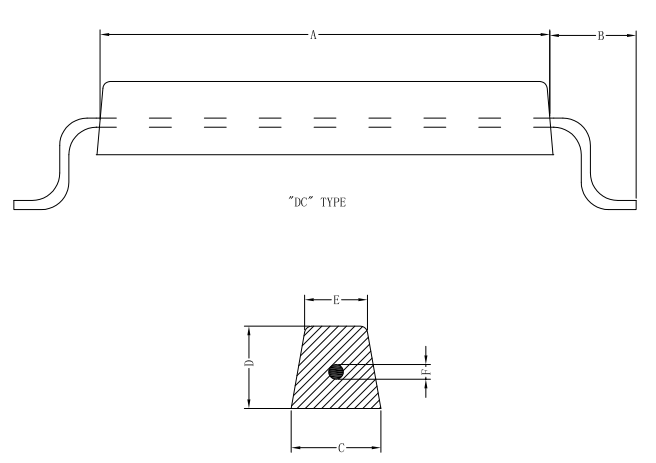

a.DC type Anodes for Ballast Water Tank:
b.FS type Aluminum Anode

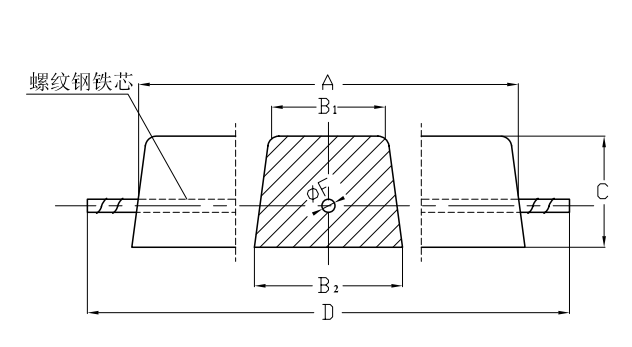

c.SC type anodes for ballast water tank
d.C type marine anodes for ballast water tank
