All monitors in our range are inspected and tested to I.M.O. requirements at our factories prior to
delivery.
In normal use the units should operate correctly and without fault over a long period of time
requiring only small amounts of maintenance to be carried out as outlined in the instruction
manuals.

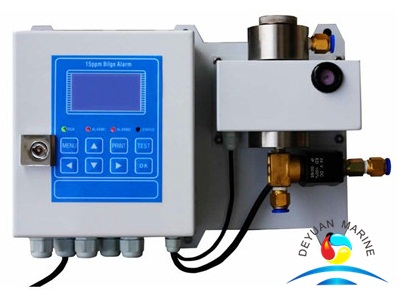

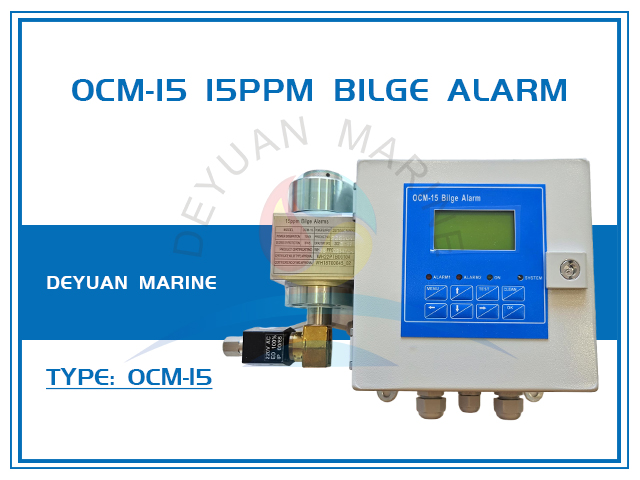

15ppm Bilge Alarm Main performance indicators:
1) Measuring range 0-30ppm (display range 0-80ppm)
2) Measurement precision (15ppm alarm) ± 5ppm (meet the IMO standard)
3) Display type : LED digital tube
4) 15ppm bilge Alarm Alarm indication: 4 red LED
5) 2-way alarm relay
6) Rated capacity of relay contact 250VAC 3A (non-emotional)
7) 15ppm bilge Alarm Response time ≤ 5 seconds
8) Output signal 4-20mA
9) Environment temperature 0 ℃ - 55 ℃
10) bilge Alarm Relative humidity≤ 93%
11) Sample liquid temperature 1 - 55 ℃
12) Sample liquid pressure 0.1-0.6MPa
13) Sample liquid flow of 0.1-4L / min
14) Protection class IP55
15) Main power supply 220/110VAC 50Hz/60Hz
16) Power Consumption ≤ 20VA

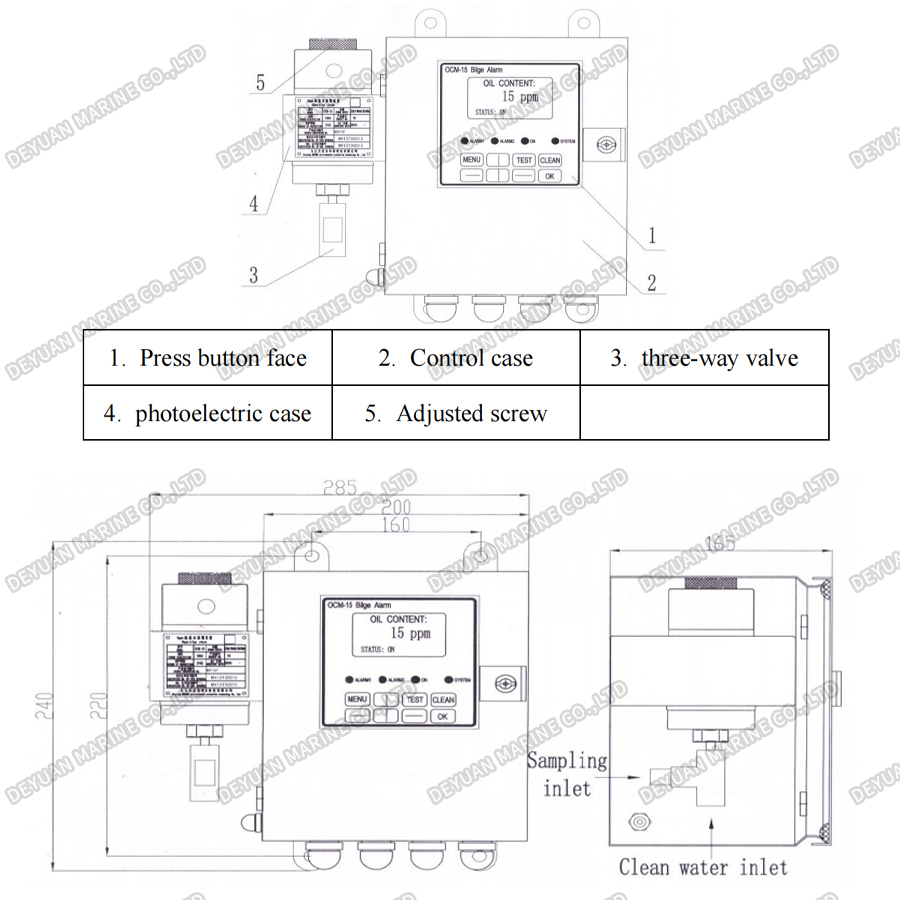

17) Overall dimension 400mm × 300mm × 160mm
18) Meet the standard IMO. Res. MEPC. 107 (49) resolution
