15ppm Bilge Alarm (small type)

  • Deyuan Marine

  • Item: 15ppm Bilge Alarm (small type)
  • Usage: marine
  • Certificate : CCS
  • Standard: IMO MEPC 107(49)
  • Delivery time: in stock
  • Payment terms: TT,LC,Western union,Paypal,Credit card

Product Description

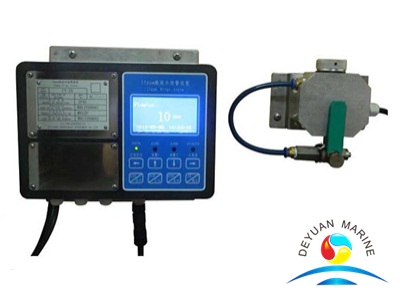

15ppm Bilge Alarm (small type)
  15ppm Bilge Alarm Main performance indicators:
  1) Measuring range 0-30ppm (display range 0-80ppm)
  2) Measurement precision (15ppm alarm) ± 5ppm (meet the IMO standard)
  3) Display type : LED digital tube
  4) 15ppm bilge Alarm Alarm indication: 4 red LED
  5) 2-way alarm relay
  6) Rated capacity of relay contact 250VAC 3A (non-emotional)
  7) 15ppm bilge Alarm Response time ≤ 5 seconds
  8) Output signal 4-20mA
  9) Environment temperature 0 ℃ - 55 ℃
  10) bilge Alarm Relative humidity≤ 93%
  11) Sample liquid temperature 1 - 55 ℃
  12) Sample liquid pressure 0.1-0.6MPa
  13) Sample liquid flow of 0.1-4L / min
  14) Protection class IP55
  15) Main power supply 220/110VAC 50Hz/60Hz
  16) Power Consumption ≤ 20VA
  17) Overall dimension 400mm × 300mm × 160mm
  18) Meet the standard IMO. Res. MEPC. 107 (49) resolution
More 15ppm Bilge Alarm (small type) can be offered,pls contact us for more details.
