15PPM Oil Content Meter

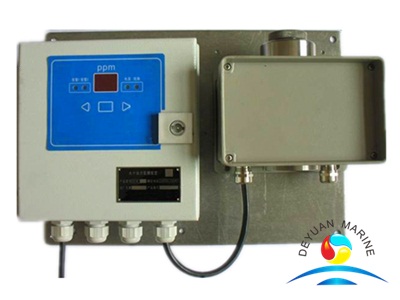

The OCM-15 type Oil Content Meter, bilge water alarm device has been designed specifically for use in continuous
monitoring of oil-in-bilge water, 15 ppm alarm and control of discharge, detection, memory and
enquiry of alarm status. It is applicable to detect boiler condensate water. And it applies to oil and chemical industries as well. The certificate of type approval test has been obtained through comprehensive tests. This device is in accordance with the IMO-Resolution MEPC.107 (49).
Main Technical Index:
Oil Content Meter Measurement range: 0～199PPm
Precision: 0---20PPM±2PPM, 20—199PPM±10%
Oil Content Meter Alarm indication: Red LED
Pressure of sample water: 0.01～0.6Mpa
Runoff of sample water ：0.15---4L/min
Operation voltage: 220VAC, 50/60Hz
Oil Content Meter Power: 25W
Signal output: 4～20mA
