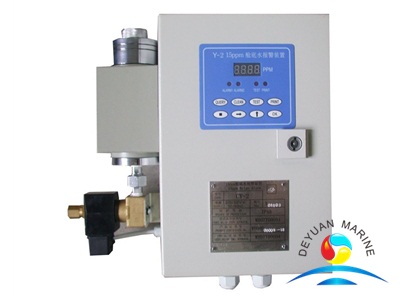

15ppm Bilge Water Alarm Device for Bilge Water Separator
Model CY-2 15ppm ballasting water alarm unit is a kind of on line inspection instrument measuring minor oil content in the ballasting water. It is suitable to measure ballasting water continually ,15 ppm alarm and discharge control, recording and printing. It can also be used in oil and chemical industries and other fields
The instrument meets relevant specification requirement of IMO.RES.MEPC.107（49）. The instrument has passed full tests and has got certificate of type test..
Main performance indicators:
1) Measuring range 0-30ppm (display range 0-80ppm)
2) Measurement precision (15ppm alarm) ± 5ppm (meet the IMO standard)
3) Display type : LED digital tube
4) 15ppm bilge water Alarm Alarm indication: 4 red LED
5) 2-way alarm relay
6) Rated capacity of relay contact 250VAC 3A (non-emotional)
7) 15ppm bilge water Alarm Response time ≤ 5 seconds
8) Output signal 4-20mA
9) Environment temperature 0 ℃ - 55 ℃
10) bilge water Alarm Relative humidity≤ 93%
11) Sample liquid temperature 1 - 55 ℃
12) Sample liquid pressure 0.1-0.6MPa
13) Sample liquid flow of 0.1-4L / min
14) Protection class IP55
15) Main power supply 220/110VAC 50Hz/60Hz
16) Power Consumption ≤ 20VA
17) Overall dimension 400mm × 300mm × 160mm
18) Meet the standard IMO. Res. MEPC. 107 (49) resolution
