Product Description

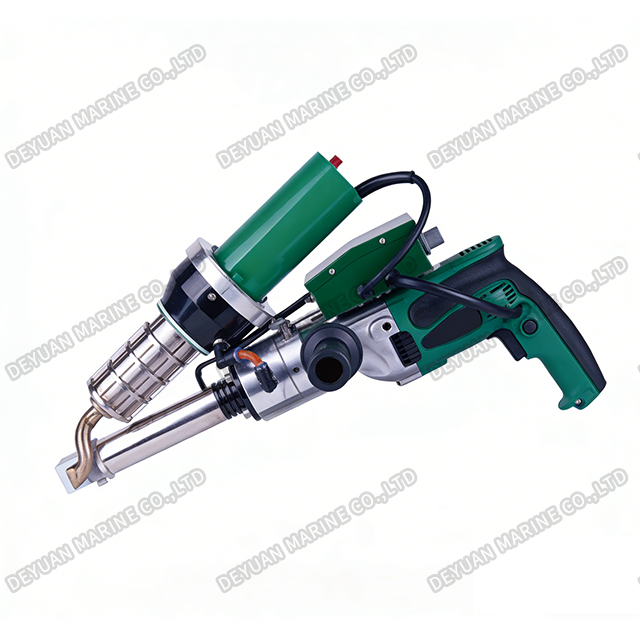

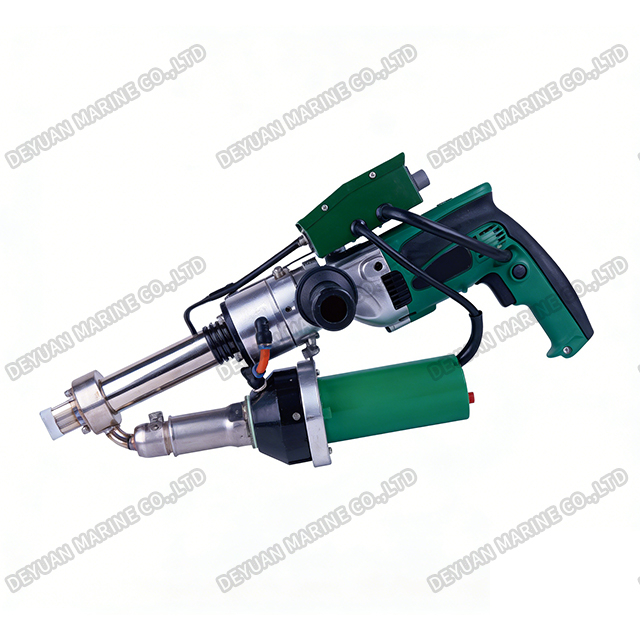

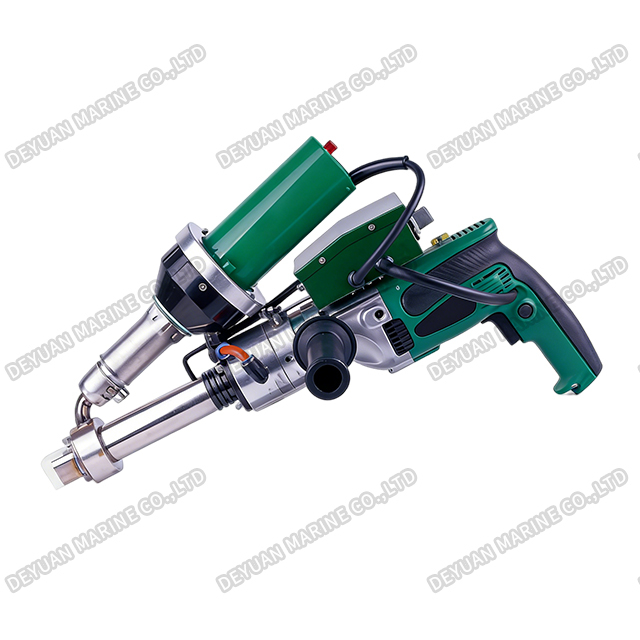

LST600 Dual Heating Extrusion Welder Series
Product Introduction
Introducing our advanced Dual Heating Extrusion Welder Series, a revolutionary solution designed for high-performance plastic welding. This series sets a new standard in the industry by integrating an innovative dual heating zone system that significantly enhances material throughput and melt quality.
Unlike traditional single-stage extruders, our Dual Heating Extrusion Welders feature a two-stage heating process. The material is first pre-softened in a primary heating chamber before entering the high-temperature extrusion barrel. This ensures a more homogeneous melt, reduces the risk of material degradation, and allows for higher extrusion speeds even with large welding rods.

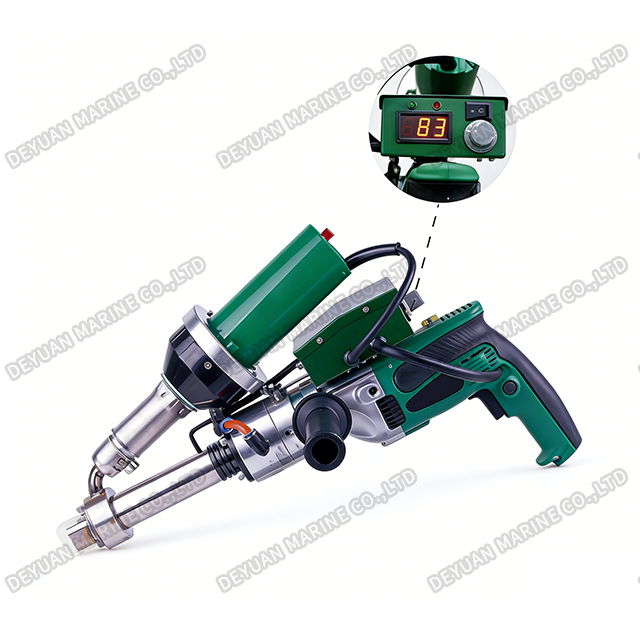

This extrusion welding torch features independent heating for both the base material and the electrode, digital temperature control display, a 360-degree rotatable nozzle, and motor cold start protection. Its design, resembling an extrusion drill, allows for rapid welding even in confined spaces. This torch is primarily used for welding HDPE and PP plastic pipes, sheets, decks, water tanks, and films.
Product Parameters

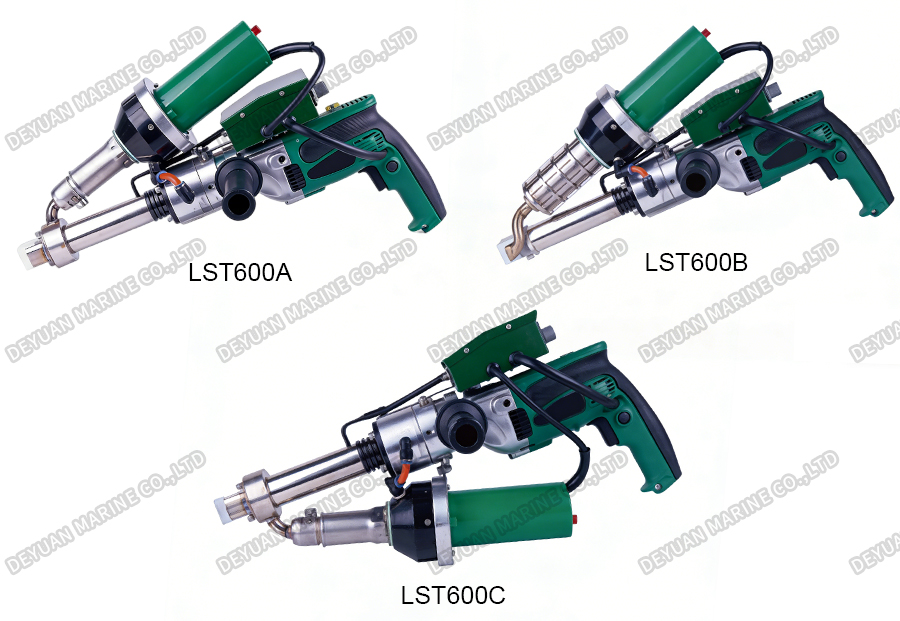

| Model | LST600A | LST600B | LST600C |
| Rated Voltage | 230V | 230V | 230V |
| Frequency | 50/60Hz | 50/60Hz | 50/60Hz |
| Extruding Motor Power | 800W | 800 W | 800 W |
| Hot Air Power | 1600 W | 3400 W | 1600 W |
| Welding Rod Heating Power | 800 W | 800 W | 800 W |
| Hot Air Temperature | 20～620℃ | 20～620℃ | 20～620℃ |
| Plastic Extruding Temperature | 50～380℃ | 50～380℃ | 50～380℃ |
| Extruding Volume | 2.0～2.5 Kg/h | 2.0～2.5 Kg/h | 2.0～2.5 Kg/h |
| Welding Rod Diameter | φ3.0～4.0 mm | φ3.0～4.0 mm | φ3.0～4.0 mm |
| Net Weight | 6.9 Kg | 6.9 Kg | 6.9 Kg |
| Driving Motor | HIKOKI | HIKOKI | HIKOKI |
| Digital Display | Extruding Temperature | Extruding Temperature | Extruding Temperature |
| Trouble Display | Code Warning | Code Warning | Code Warning |
| Certificate | CE | CE | CE |
| Warranty | One year | One year | One year |
Key Features
*Dual Heating Zone Technology: Ensures uniform melting and consistent weld seams, providing superior bond strength compared to standard welders.
*High-Speed Extrusion: Capable of processing a large volume of welding rod per hour, significantly reducing project completion times for large-scale fabrication.
*Robust Build Quality: Constructed with durable components to withstand the rigors of continuous industrial use, ensuring long service life and reliability.
*Versatile Material Compatibility: Engineered to handle a wide range of thermoplastics including HDPE, PP, and PVC, making it adaptable for various applications from geomembrane lining to chemical tank fabrication.
*User-Friendly Operation: Ergonomic design with adjustable speed controls and temperature settings, allowing operators to easily adapt to different material requirements.

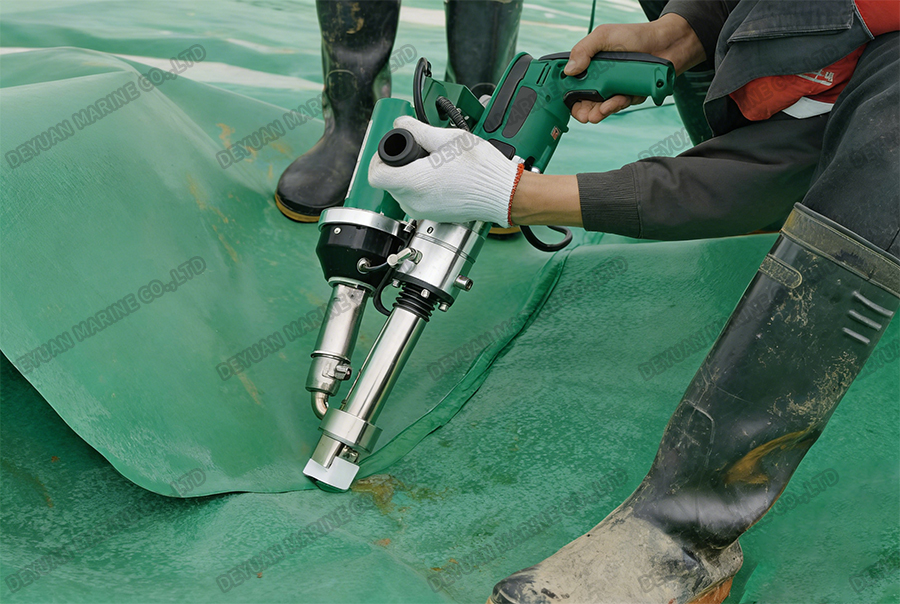

Ideal for environmental protection projects (landfill lining), civil engineering (waterproofing), and industrial storage solutions, the Dual Heating Extrusion Welder Series delivers efficiency and reliability where it matters most.
