Product Description
LST1600 Hot Air Gun
Product Introduction
This hot air welding gun adopts ergonomic design, which is more portable, practical and comfortable. It is mainly used for welding various hot melt plastics such as PE, PP, EVA, PVC, TPO, PVDF, etc. It can also be used for thermoforming, heat shrinking, and drying. , Lighting and other operations. In addition to the advantages of hot air welding gun double insulation, two-pole overheating protection, constant temperature control, and continuous temperature adjustment, the visualized real-time temperature display makes it easier for users to adjust the appropriate temperature and improve work efficiency.
Product Parameters
| Model | LST1600A | LST1600S | LST1600D | LST1600E |
| Rated Voltage | 120/230V | 120/230V | 120/230V | 120/230V |
| Frequency | 50/60 Hz | 50/60Hz | 50/60 Hz | 50/60 Hz |
| Power | 1600 W | 1600 W | 1600 W | 1600 W |
| Temperature | 20～620℃ | 20～620℃ | 20～620℃ | 20～620℃ |
| Air Volume | Max 180 L/min | Max 180 L/min | Max 180 L/min | Max 180 L/min |
| Noise | ≤65 Db | ≤65 Db | ≤65 Db | ≤65 Db |
| Net Weight | 1.1 Kg | 1.05 Kg | 1.05 Kg | 1.05 Kg |
| Motor | Brush | Brush | Brush | Brush |
| Handle Dia | φ65 mm | φ58mm | φ58 mm | φ58 mm |
| Digital Display | · | |||
| Overheat Protection | · | · | · | · |
| Temperature Control | Open loop | Open loop | Closed loop | Open loop |
| Certificate | CE | CE | CE | CE |
| Warranty | One Year | One Year | One Year | One Year |
Advantage

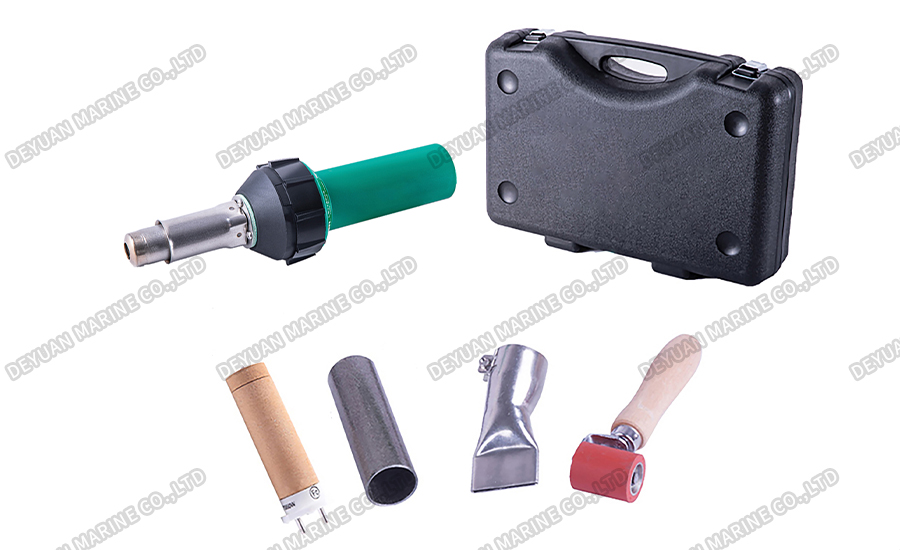

1. Welding nozzle:A variety of stainless steel welding tips can be freely selected according to application requirements.
2. Heating core:Imported heating wire, high temperature resistant ceramics and silver-plated terminals are selected, which can work continuously for a long time under high temperature environment.
3. Dynamic balance:All welding torches have undergone dynamic balance testing to ensure stable air flow and no vibration during use.
4.The temperature is adjustable:The temperature can be adjusted freely between 20-620℃, which is safe and reliable.

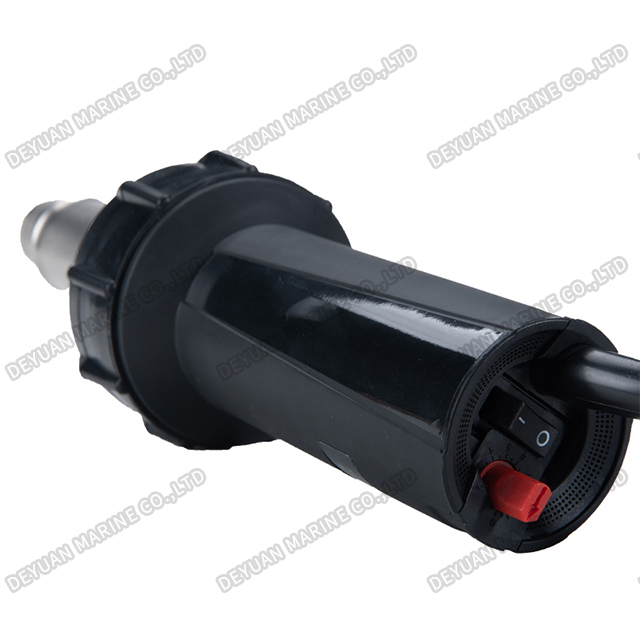

5.Handle:Ergonomically designed, it is convenient to hold, more comfortable to use for a long time, and effectively improves construction efficiency.
