Product Description

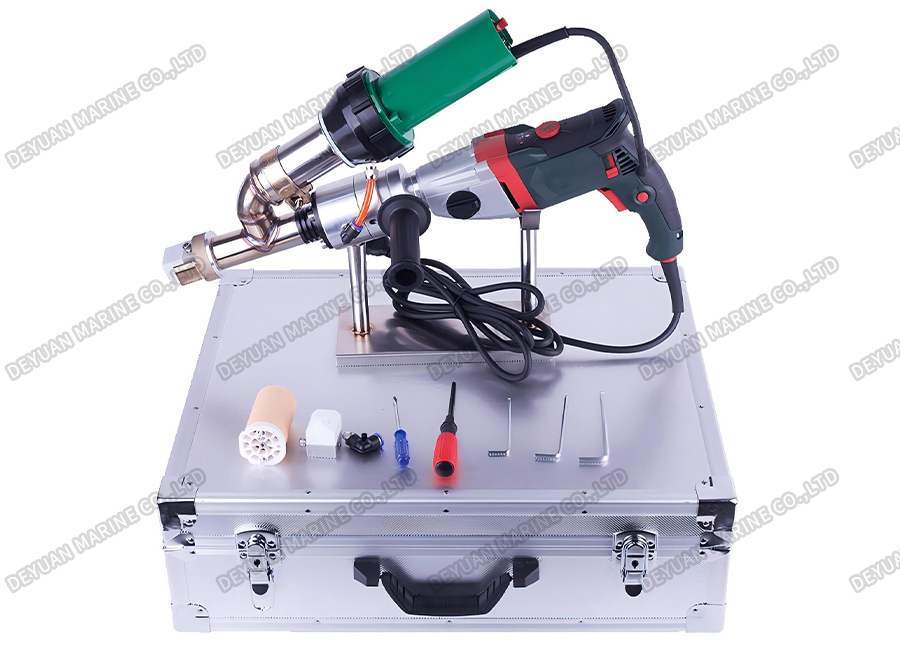

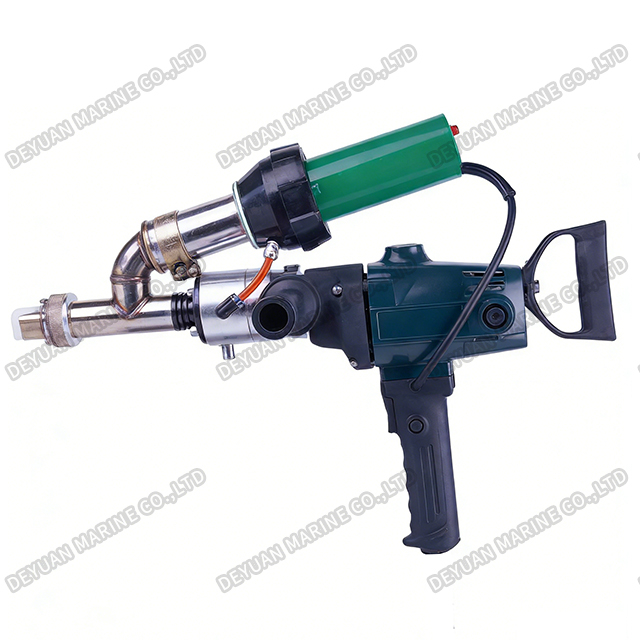

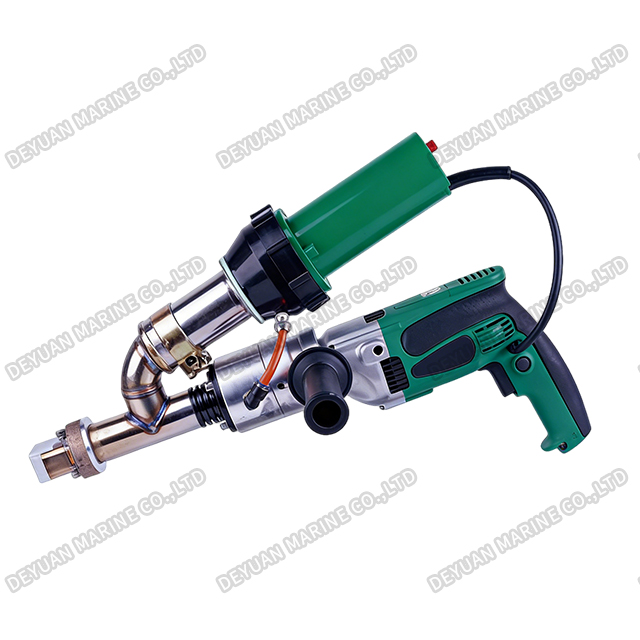

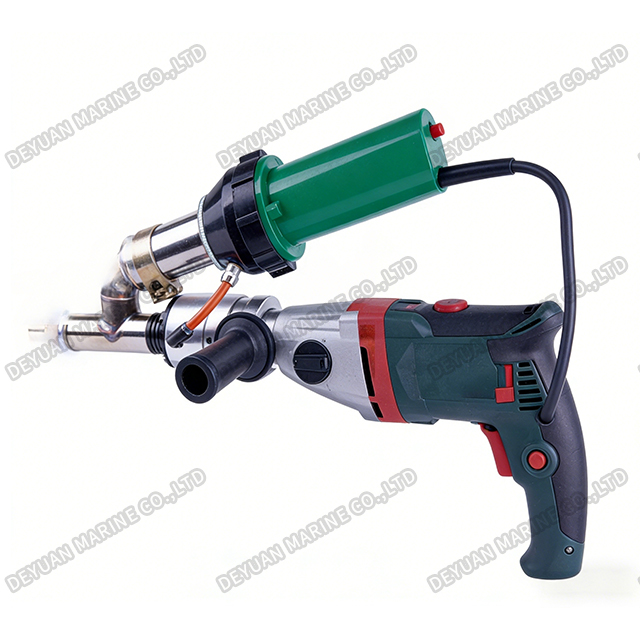

LST600E/600F/610E Single Heating Extrusion Welder Series
Product Introduction
Introducing our Single Heating Extrusion Welder Series – a reliable and cost-effective solution for standard plastic welding applications. Designed for simplicity and durability, this series provides consistent performance for workshops, on-site installations, and light to medium industrial fabrication.
The Single Heating Extrusion Welder Series utilizes a straightforward yet effective single-stage heating system. Plastic welding rods are fed into a heated barrel where they are melted uniformly before being extruded onto the workpiece. This proven technology delivers strong, homogeneous welds without unnecessary complexity, making it an ideal choice for operators seeking ease of use and low maintenance.
Product Parameters

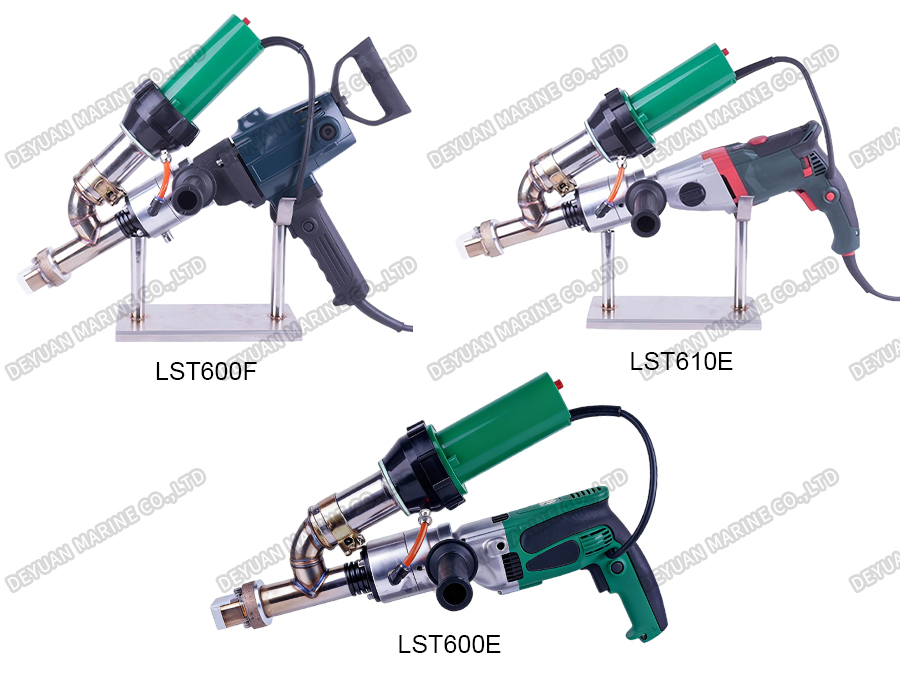

| Model | LST600E | LST600F | LST610E |
| Rated Voltage | 230V | 230V | 230V |
| Frequency | 50/60Hz | 50/60 Hz | 50/60 Hz |
| Extruding Motor Power | 800 W | 1200 W | 1300 W |
| Hot Air Power | 3400 W | 3400 W | 3400 W |
| Welding Rod Heating Power | / | / | / |
| Hot Air Temperature | 20～620℃ | 20～620℃ | 20～620℃ |
| Plastic Extruding Temperature | / | / | / |
| Extruding Volume | 2.0～2.5 Kg/h | 2.5～3.0 Kg/h | 2.5～3.0 Kg/h |
| Welding Rod Diameter | φ3.0～4.0 mm | φ3.0～4.0 mm | φ3.0～4.0 mm |
| Net Weight | 6.0 Kg | 7.5 Kg | 6.3 Kg |
| Driving Motor | HIKOKI | FEIJI | METABO |
| Motor Overload Protection | ● | ||
| Certificate | CE | CE | CE |
| Warranty | One year | One year | One year |
Key Features:
*Efficient Single Heating Zone: Direct heating element ensures rapid heat-up and consistent melt temperatures, producing reliable weld seams for a variety of thermoplastics.
*Compact and Lightweight Design: Ergonomically engineered for comfortable handling, reducing operator fatigue during extended use in confined spaces or vertical applications.
*User-Friendly Controls: Simple temperature and speed adjustments allow for quick adaptation to different material thicknesses and rod diameters, minimizing setup time.
*Durable Construction: Built with high-quality materials to withstand daily use in demanding environments, ensuring long-term reliability and minimal downtime.
*Versatile Application Range: Compatible with common thermoplastics including HDPE, PP, and PVDF, suitable for tasks such as tank lining, ductwork fabrication, and pond sealing.
Whether you are performing routine maintenance, fabricating chemical storage tanks, or installing waterproofing membranes, the Single Heating Extrusion Welder Series delivers the perfect balance of performance, affordability, and ease of use.
