Product Description

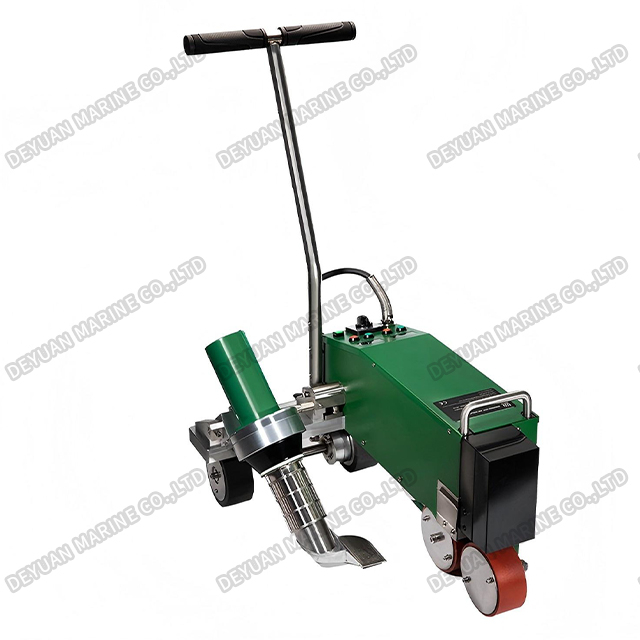

LST-WP1 Roofing Hot Air Welder
Product Introduction
The newly designed roof hot air welding machine WP1 adopts advanced hot air heating technology, convenient operation, stable performance, high power, and has a wide range of industrial application prospects. It can quickly realize the construction and welding of high-quality thermoplastic waterproofing membranes such as PVC, TPO, EPDM, etc. in industrial plants, public places, underground projects, swimming pools and other fields.
➢ First choice for large area roof welding, stable operation and higher use efficiency.
➢ WP1 BL enhanced brushless motor
➢ WP1 BL enhanced version endows it with high performance and durability, and its overall performance is far superior to similar products.
➢ The maintenance-free brushless motor does not need to replace the carbon brushes, and the service life can reach 6000 hours.
➢ Closed loop control
This machine can not only display the welding temperature and welding speed, the control system adopts closed-loop control, regardless of the external voltage change, or the welding direction up or down under the change of the external environment, such as negative feedback automatically adjusts the set temperature and speed to make welding The parameters are more stable and the welding quality is more reliable.
Product Parameters
| Model | LST-WP1 | LST-WP1A |
| Rated Voltage | 230/380V | 230/380V |
| Rated Power | 4200/5200 W | 4200/5200 W |
| Welding Temperature | 50～620℃ | 50～620℃ |
| Welding Speed | 1～10 m/min | 1～10 m/min |
| Seam Width | 40 mm | 40 mm |
| Dimensions(LxWxH) | 555×358×304 mm | 555×358×304 mm |
| Net Weight | 38 kg | 38 kg |
| Motor | Brush | Brushless |
| Air Volume | Not Adjustable | Stepless adjustable |
| Certificate | CE | CE |
| Warranty | One Year | One Year |
Advantage

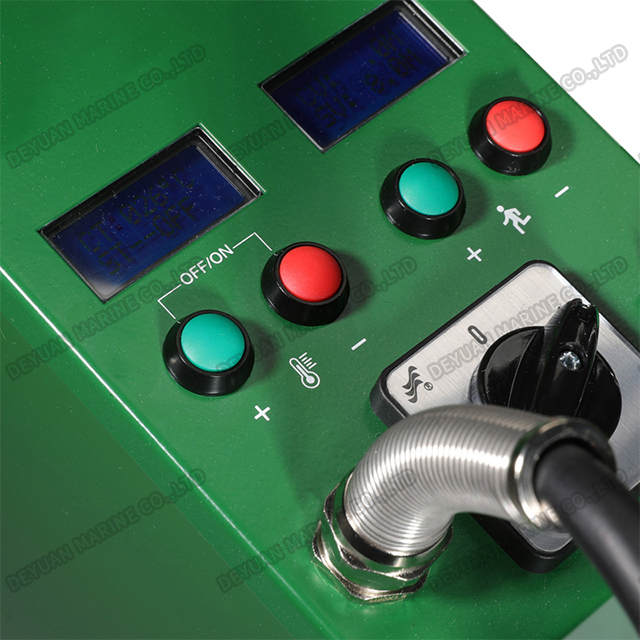

1.Intelligent control system
*The operation is simple and intuitive.
*Excitation voltage 180-240V can still be used normally.
*Closed loop control temperature and speed, with parameter setting memory and fault alarm function

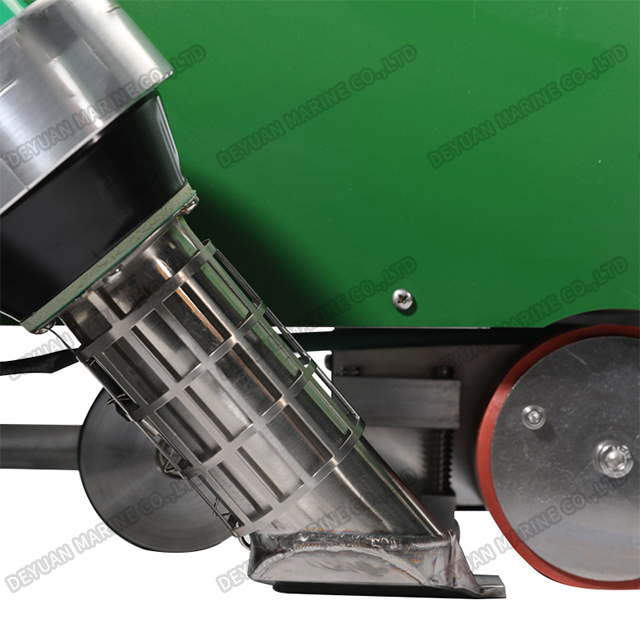

2.High-efficiency welding nozzle
The anti-scald protection design that maximizes heat and air volume ensures welding quality and improves construction efficiency.

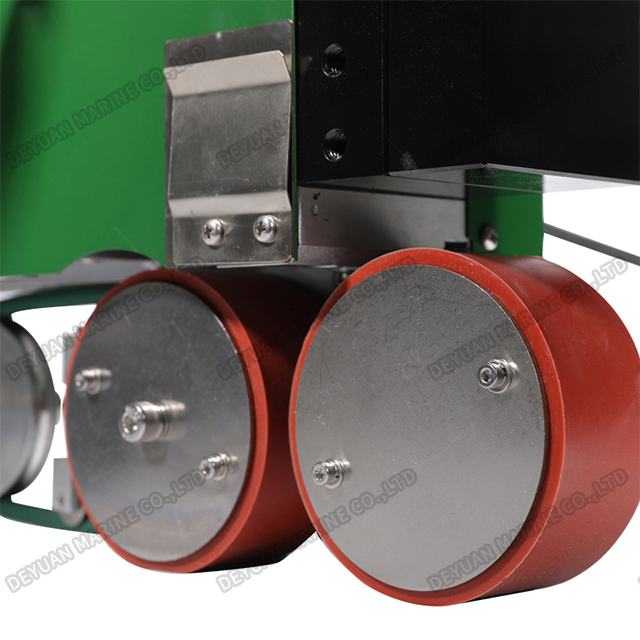

3.Advanced belt and roller system combined
The belt and pressure roller are simple and convenient to replace, the pressure is balanced, and the walking is stable, which can well suppress the bulging phenomenon and ensure the uniform and reliable welding seam
4.Precision positioning system
Through the positioning of the guiding and positioning wheel, the welding machine is guaranteed to walk straight and unbiased.
