Product Description

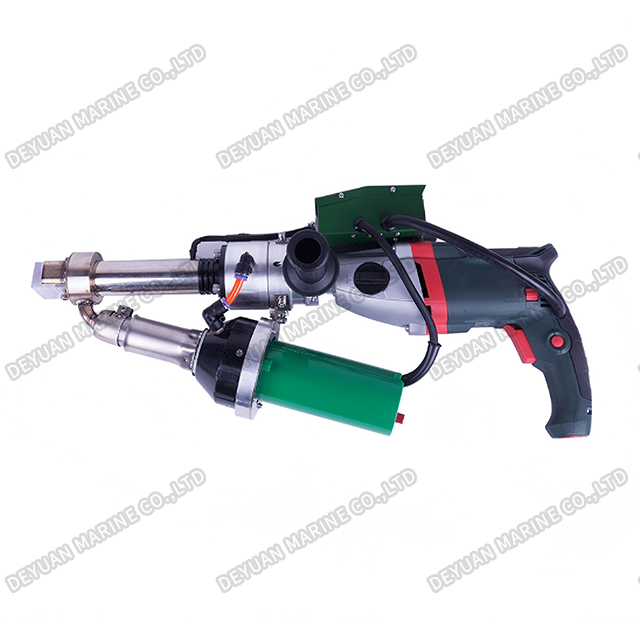

LST610 Dual Heating Extrusion Welder Series
Product Introduction
The LST610 Series represents the pinnacle of engineering in the field of thermoplastic extrusion welding. Designed for heavy-duty continuous operation, this series incorporates a sophisticated dual heating mechanism that optimizes energy efficiency while maximizing welding output.
At the core of the LST610 is its advanced thermal management system. The dual-stage heating technology separates the preheating and final melting processes, ensuring that plastic welding rods are completely plasticized without cold spots or burning. This results in a flawless molecular bond between the welding rod and the base material, guaranteeing leak-proof and pressure-tight seams.
Product Parameters

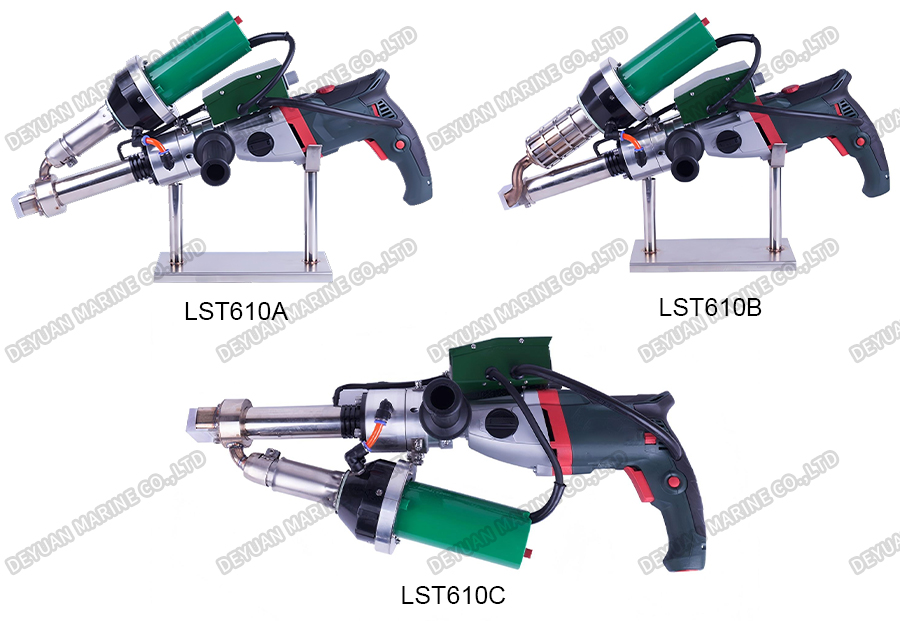

| Model | LST610A | LST610B | LST610C |
| Rated Voltage | 230V | 230V | 230V |
| Frequency | 50/60 Hz | 50/60Hz | 50/60 Hz |
| Extruding Motor Power | 1300W | 1300W | 1300 W |
| Hot Air Power | 1600W | 3400W | 1600 W |
| Welding Rod Heating Power | 800 W | 800W | 800 W |
| Hot Air Temperature | 20～620℃ | 20～620℃ | 20～620℃ |
| Plastic Extruding Temperature | 50～380℃ | 50～380℃ | 50～380℃ |
| Extruding Volume | 2.0～3.0 Kg/h | 2.0～3.0 Kg/h | 2.0～3.0 Kg/h |
| Welding Rod Diamete | φ3.0～4.0 mm | φ3.0～4.0 mm | φ3.0～4.0 mm |
| Net Weight | 7.2 Kg | 7.2 Kg | 7.2 Kg |
| Driving Motor | METABO | METABO | METABO |
| Digital Display | Extruding Temperature | Extruding Temperature | Extruding Temperature |
| Trouble Display | Code Warning | Code Warning | Code Warning |
| Certificate | CE | CE | CE |
| Warranty | One year | One year | One year |
Technical Advantages:
*LST610 Dual Heating Core: Utilizes two independent heating elements to gradually raise material temperature, preventing thermal shock and ensuring a consistent melt flow rate for superior structural integrity.
*Enhanced Torque Drive System: Equipped with a powerful, variable-speed motor designed to handle high-viscosity materials, providing consistent extrusion pressure even in vertical or overhead welding positions.
*Smart Temperature Control: Features precise digital temperature controls with real-time monitoring, allowing operators to fine-tune parameters for materials ranging from soft polyolefins to rigid engineering plastics.
*Modular Welding Nozzle Kit: Comes with a quick-change nozzle system adaptable for various weld geometries, including fillet, V-joint, and overlap seams.
*Durable Ergonomic Design: Built with a lightweight yet rugged aluminum housing, reducing operator fatigue during long shifts while maintaining durability in harsh job site conditions.
The LST610 Series is the preferred choice for contractors specializing in geomembrane liner installation, chemical containment, and large-scale thermoplastic fabrication, delivering consistent, high-strength welds that meet international quality standards.
