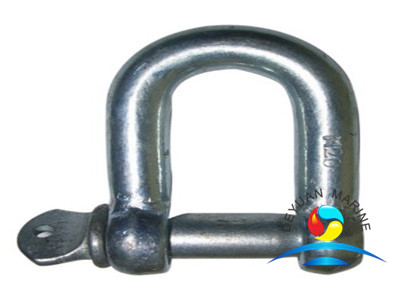

JIS Type Hammer Forging Dee Shackle with Collar For Lifting
JIS type dee shackle has the"D"shape design and comes with different pin options.A dee shackle is narrower than a bow or anchor shackle,it is suitable for straight pulling,but not good for muti-dimensional pulls.
Shackles can be with or without collar, available material is Q235 carbon steel or stainless steel,surface treatment can be self color,hot dipped galvanized, electro-galvanized, painted or dacromet.
Deyuan Marine offer a wide range of JIS type dee shackle with size of 4.8mm to 75mm,WLL from 0.09T to 20T.
If the JIS type Shackles you are looking for are not specified here,pls contact us for further discussion,custom-made shackle also available.
JIS type D shackles
| Size | Dimensions(mm) | WLL(t) | Weight (lbs) | ||||
| mm | in | B | D | L | d1 | ||
| 4.8 | 3/16 | 10 | 10 | 18.5 | 5 | 0.09 | 0.2 |
| 6 | 1/4 | 12 | 11 | 25 | 6.5 | 0.15 | 0.33 |
| 8 | 5/16 | 14 | 15 | 31 | 8.5 | 0.25 | 0.55 |
| 9 | 3/8 | 18 | 17 | 36 | 10 | 0.4 | 0.88 |
| 12 | 1/2 | 24 | 23 | 46 | 13 | 0.6 | 1.32 |
| 16 | 5/8 | 30 | 32 | 59 | 17 | 0.8 | 1.77 |
| 19 | 3/4 | 36 | 37 | 74 | 20 | 1 | 2.21 |
| 22 | 7/8 | 43 | 43 | 86 | 23 | 1.5 | 3.31 |
| 25 | 1 | 47 | 50 | 95 | 27 | 2 | 4.41 |
| 28 | 11/8 | 55 | 56 | 110 | 30 | 2.5 | 5.52 |
| 32 | 11/4 | 64 | 64 | 130 | 34 | 3.2 | 7.06 |
| 38 | 11/2 | 76 | 76 | 145 | 40 | 4.2 | 9.27 |
| 44 | 13/4 | 80 | 90 | 160 | 47 | 6.5 | 22 |
| 50 | 2 | 100 | 100 | 185 | 53 | 8 | 26 |
| 65 | 21/2 | 110 | 130 | 240 | 68 | 15 | 62 |
| 75 | 3 | 120 | 150 | 300 | 78 | 20 | 97 |
JIS type Shackles without Collar
| Size(mm） | Dimensions(mm） | WLL(t) | Weight(lbs) | |||||
| m/m | in | B | D | L | d1 | A | B | |
| 4.8 | 3/16 | 10 | 10 | 18.5 | 5 | 0.09 | 0.028 | 0.05 |
| 6 | 1/4 | 12 | 11 | 25 | 6.5 | 0.15 | 0.057 | 0.14 |
| 8 | 5/16 | 14 | 15 | 31 | 8.5 | 0.25 | 0.1 | 0.14 |
| 9 | 3/8 | 18 | 17 | 36 | 10 | 0.4 | 0.15 | 0.17 |
| 12 | 1/2 | 24 | 23 | 46 | 13 | 0.6 | 0.37 | 0.42 |
| 16 | 5/8 | 30 | 32 | 59 | 17 | 0.8 | 0.88 | 1.05 |
| 19 | 3/1 | 36 | 37 | 74 | 20 | 1 | 1.54 | 1.71 |
| 22 | 7/8 | 43 | 43 | 86 | 23 | 1.5 | 2.42 | 2.6 |
| 25 | 1 | 47 | 50 | 95 | 27 | 2 | 3.75 | 3.97 |
| 28 | 11/8 | 55 | 56 | 110 | 30 | 2.5 | 5.29 | 5.62 |
| 32 | 11/4 | 64 | 64 | 130 | 34 | 3.2 | 7.9 | 8.6 |
| 38 | 11/2 | 76 | 76 | 145 | 40 | 4.2 | 13.22 | 15.2 |
| 44 | 13/4 | 80 | 90 | 160 | 47 | 6.5 | 22.04 | / |
| 50 | 2 | 100 | 100 | 185 | 53 | 8 | 26.46 | / |
| 65 | 21/2 | 110 | 130 | 240 | 68 | 15 | 61.73 | / |
| 75 | 3 | 120 | 150 | 300 | 78 | 20 | 97 | / |
