Product Description

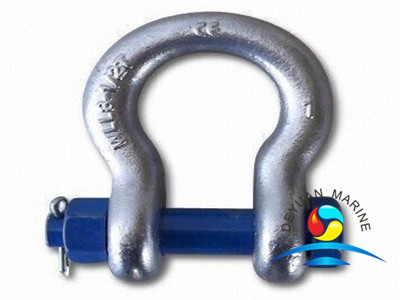

G2130 US Type Galvanized Safety Pin Anchor or Bow Shackles
Galvanized anchor shackles，a U-Shaped piece of rigging hareware secured with a clevis pin or bolt across with opening，are used in lifting operations and static systems to offer security of strong connection with ease of a quick release pin.
Our G2130 bow shackles come with a safety pin,also call bolt type shackles.These safety bolt shackles are used on multi-leg systems for long term or permanent applications.
All our US type shackles have a 6:1 safety factor as standard,drop forged,quenched and tempered,as a protective coating,the shackle body is normally hot dip galvanized.
If you need any US type shackles for your job,pls feel free to contact our sales team for further discussion.
| Size(in.) (p) | working load limit(t) | Dimension(inch) | Weigth(lbs) | ||||||
| Inside Length | Inside Width(A) | Diameter | Tolerance Plus or Minus | ||||||
| Chain type (G) | Pin(B) | Outside of Eye(F) | Length | Width | 2130 | 2150 | |||
| 1/2 | 2 | 1 5/8 | 13/16 | 5/8 | 1 3/16 | 1/8 | 1/16 | 0.79 | 0.75 |
| 5/8 | 3 1/4 | 2 | 1 1/16 | 3/4 | 1 9/16 | 1/8 | 1/16 | 1.68 | 1.47 |
| 3/4 | 4 3/4 | 2 3/8 | 1 1/4 | 7/8 | 1 7/8 | 1/4 | 1/16 | 2.72 | 2.52 |
| 7/8 | 6 1/2 | 2 13/16 | 1 7/16 | 1 | 2 1/8 | 1/4 | 1/16 | 3.95 | 3.85 |
| 1 | 8 1/2 | 3 3/16 | 1 11/16 | 1 1/8 | 2 3/8 | 1/4 | 1/16 | 6.12 | 5.55 |
| 1 1/8 | 9 1/2 | 3 9/16 | 1 13/16 | 1 1/4 | 2 5/8 | 1/4 | 1/16 | 8.27 | 7.6 |
| 1 1/4 | 12 | 3 15/16 | 2 1/32 | 1 3/8 | 3 | 1/4 | 1/16 | 11.71 | 10.81 |
| 1 3/8 | 13 1/2 | 4 3/8 | 2 1/4 | 1 1/2 | 3 5/16 | 1/4 | 1/8 | 15.83 | 13.75 |
| 1 1/2 | 17 | 4 13/16 | 2 3/8 | 1 5/8 | 3 5/8 | 1/4 | 1/8 | 20.8 | 18.5 |
| 1 3/4 | 25 | 5 3/4 | 2 7/8 | 2 | 4 1/8 | 3/4 | 1/8 | 33.91 | 31.4 |
| 2 | 35 | 6 3/4 | 3 1/4 | 2 1/4 | 5 | 3/4 | 1/8 | 52.25 | 46.75 |
| 2 1/2 | 55 | 8 | 4 1/8 | 2 3/4 | 6 | 3/4 | 1/4 | 98.25 | 85 |
| 3 | 85 | 8 1/2 | 5 | 3 1/4 | 6 1/2 | 1/4 | 1/4 | 154 | 124.25 |
| 3 1/2 | 120 | / | 5 1/4 | 3 3/4 | 8 | 1/4 | 1/4 | 265 | / |
| 4 | 150 | / | 5 1/2 | 4 1/4 | 9 | 1/4 | 1/4 | 338 | / |
