Product Description

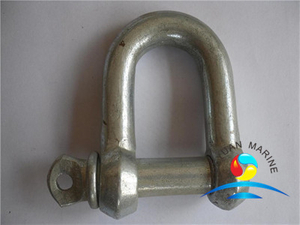

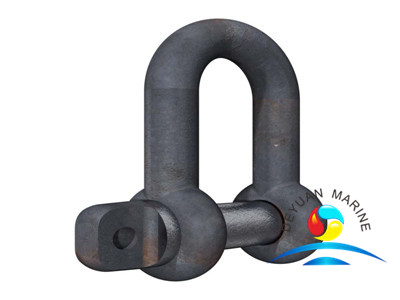

BS3032 Hot dipped Galvanised Screw Collar Pin Large Dee Shackles
Deyuan Marine offer two types of BS3032 shackles,one is large bow shackles,the other is large dee shackles.Both types of BS3032 standard shackles are produced out of higher tensile steel,self colour or hot dipped galvanised as a protective coating.
A dee shackle is narrower than a bow or anchor shackle,it is suitable for straight pulling,but not good for muti-dimensional pulls.bow shackles also call bolt type shackles，are used on multi-leg systems for long term or permanent applications.
D shackles' WLL is from2.5kg to16002.5kg,a variety size of dee shackles for option.If you are looking for any d shackles for your job,pls feel free to contact us.
| WLL（kg) | Dimensions(in) | Weight(lbs) | ||||
| d | D | W | S | e | ||
| 2.5 | 1/4 | 3/8 | 1/2 | 1 | 3/4 | 0.24 |
| 5 | 3/8 | 1/2 | 3/4 | 1 1/2 | 1 | 0.38 |
| 7.5 | 1/2 | 5/8 | 1 1/8 | 2 1/8 | 1 1/4 | 0.77 |
| 1005 | 5/8 | 3/4 | 1 1/4 | 1 1/2 | 1 1/2 | 1.46 |
| 2000 | 3/4 | 7/8 | 1 1/2 | 2 7/8 | 1 3/4 | 2.25 |
| 3000 | 7/8 | 1/1 | 1 3/4 | 3 1/4 | 2 | 3.46 |
| 3007.5 | 1 | 1 1/8 | 2 | 3 3/4 | 2 1/4 | 5.07 |
| 5000 | 1 1/3 | 1 1/4 | 2 1/8 | 4 1/8 | 2 1/2 | 7.06 |
| 6000 | 1 1/4 | 1 3/8 | 2 3/8 | 4 1/2 | 2 3/4 | 9.49 |
| 7000 | 1 3/8 | 1 1/2 | 2 5/8 | 5 | 3 | 11.92 |
| 9005 | 1 1/2 | 1 3/4 | 2 3/4 | 5 3/8 | 3 1/2 | 15 |
| 11002.5 | 1 5/8 | 1 7/8 | 3 | 5 3/4 | 3 3/4 | 19.2 |
| 13000 | 1 3/4 | 2 | 3 1/4 | 6 1/8 | 6 1/8 | 24.27 |
| 14002.5 | 1 7/8 | 2 1/8 | 3 5/8 | 7 | 7 | 31.55 |
| 16002.5 | 2 | / | / | 7 3/8 | 7 3/8 | 44.13 |
