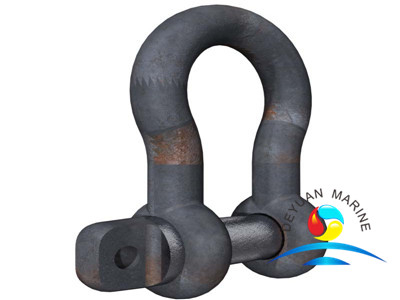

British Standard Higher Tensile Steel BS3032 Galvanised Large Bow Shackles

Standard:British Standard
Type: BS3032 Bow Shackles
Material:Higher Tensile Steel
Surface:Galvanized
Safety factor:6:1 or 7:1 or on request
Pin Material: 40Cr Alloy Steel
Delivery time:in stock
Availability:

Product Description

British Standard Higher Tensile Steel BS3032 Galvanised Large Bow Shackles

This British BS3032 large bow shackles  is made as per the standard of BS3032:1958,they are very popular in marine mooring applications,industrial and construction market,act as a load rated lifting rigging shackle.

Bow shackle body and pin used higher tensile steel,srew pin and safety pin are for option,WLL of shackle range from 150KG to 15000KG.Normally,this BS3032 bow shackle will be finished by self colour or hot dipped galvanised.size, ID mark, W.L.L & CE marking can embossed on shackle.

If the british standard large bow shackles are not listed here,pls contact us to custom-made.

WLL(kg)Dimensions(mm)
dDW2rSe
15061013192919
450101216254125
750121622325432
1250162029417038
2000202235518644
2750222541579851
37502528446410857
47502832517312464
57503235578313770
85003844709816889
11500455186121206102
15000505798140238114
