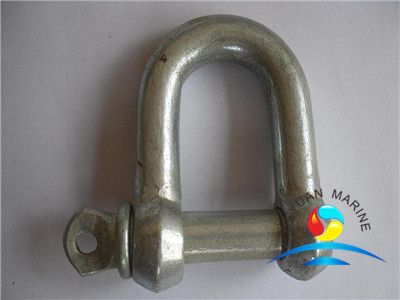

European Standard Galvanized or Black Painted Hammer Forging Large Shackles

Our hammer forging large shackles is designed as per European standard,large shackles are produced out of Q235 carbon steel with size from M5-M50,WLL range from80kg to8000kg.

hammer forging workmanship were used in the production,all European standard large shackle can be finished by self color,hot dipped galvanized, electro-galvanized, painted or dacromet.

European Type large bow shackles,large dee shackles,trawling shackles with square head screw pin,trawling shackles with round head screw pin are available.If you are looking for any european standard large shackles,pls donot hesitate to contact us.

European Type Large Bow shackles

WLL(kg)	Dimensions(mm)						Weight 100pcs(lbs)
WLL(kg)	D	d	a	c	r	b	Weight 100pcs(lbs)
80	5	5	10	19	8	11	5
100	6	6	13	25	10	14	9
200	8	8	16	32	12	18	18
320	10	10	19	38	16	20	33
520	12	12	25	51	19	26	67
800	16	16	32	64	28	33	127
1100	20	20	38	76	33	40	203
1500	22	22	44	89	37	50	330
2100	25	25	51	100	40	57	508
3000	28	28	57	115	47	68	787
3500	32	32	64	127	52	73	1091
5000	38	38	76	152	63	85	1776
7000	45	45	90	180	75	96	3172
8000	50	50	102	200	78	108	4441

European Type large Dee Shackles

WLL(kg)	Dimensions(mm)					Weight 100pcs(lbs)
WLL(kg)	D	d	a	c	b	Weight 100pcs(lbs)
80	5	5	10	19	11	4
100	6	6	13	25	14	8
200	8	8	16	32	18	15
320	10	10	19	38	20	29
520	12	12	25	51	26	57
800	16	16	32	64	33	110
1100	20	20	38	76	40	177
1500	22	22	44	89	50	287
2100	25	25	51	100	57	441
3000	28	28	57	115	68	684
3500	32	32	64	127	73	949
5000	38	38	76	152	85	1545
7000	45	45	90	180	96	2758
8000	50	50	102	200	108	3861

European Type Trawling shackles with Square Head Screw Pin

Working Load Limit(t)	Dimensions(mm)					Weight (lbs)
Working Load Limit(t)	D	d	a	c	e	Weight (lbs)
0.2	8	8	16	32	18	15.4
0.3	10	10	20	38	20	29.6
0.5	12	12	25	51	26	55.2
0.8	16	16	32	63	33	117
1.1	20	20	38	76	40	203
1.5	22	22	45	88	50	309
2	25	25	51	102	57	474.4
2.6	28	28	57	114	68	662
3.8	32	32	63	127	73	1004
4.5	38	38	76	152	85	1677

trawling shackles with round head screw pin

WLL(kg)	Dimensions(mm)					Weight(lbs)
WLL(kg)	D	d	a	c	b	Weight(lbs)
80	5	5	10	19	11	4.2
100	6	6	13	25	14	7.5
200	8	8	16	32	18	15.45
320	10	10	19	38	20	28.68
520	12	12	25	51	26	53
800	16	16	32	64	33	110
1100	20	20	38	76	40	177
1500	22	22	44	89	50	286.8
2100	25	25	51	100	57	441
3000	28	28	57	115	68	662
3500	32	32	64	127	73	948.8
5000	38	38	76	152	85	1489.4
7000	45	45	90	180	96	2758
8000	50	50	102	200	108	3861.4
