Cargo Oil Tank Vertical Ladder

  • Deyuan Marine

Product Description

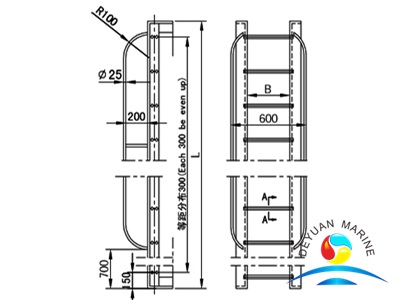

Cargo Oil Tank Vertical Ladder

We are leading supplier of marine outfitting equipment,such as marine steel doors,
marine aluminum door,marine windows,marine hatch cover,marine pilot rope ladder,
embarkation rope ladder,gangway ladder ,bulwark ladder ,Steel Straight Ladder,cargo oil tank vertical ladder etc.

Model Title Ladder Material Specification Width
A Oil Tank
Vertical Ladder
 ∟
100X80X10
300、400
B Cargo Hold Angle
Steel Vertical Ladder
 ∟
80X50X8
300、400
C Bulb-flat Steel Cargo Hold Vertical Ladder   Γ
140X35X9
400

Step Quantity Length Weight(kg)
A B C
L B=300 B=400 B=300 B=300 B=300
4 1200 50.3 53.3 29.1  30.6  -
5 1500 67.3 70.8 35.0  36.9  -
6 800 79.7 84.3 39.9  42.6  -
7 2100 92.1 97.4 42.8  49.5  74.1
8 2400 104.5 110.6 52.8  55.8  84.1
9 2700 122 128.8 61.3  64.8  97.5
10 3000 134.4 142 67.3  70.6  107.0
11 3300 146.5 154.9 73.2  77.4  116.7
12 3600 159.2 168.3 79.1  83.7  126.2
13 3900 171.3 181.2 85.0  90.0  135.9
14 4200 183.8 194.4 91.0  96.2  145.4
15 4500 196.1 207.5 96.9  102.6  155.1
16 4800 208.5 220.7 102.8  108.8  164.6
17 5100 226 238.9 113.4  119.9  175.7
18 5400 238.2 251.9 119.4  126.2  185.1
19 5700 250.7 265.1 125.3  132.5  194.8
20 6000 262.9 278.1 131.2  138.8  204.3
