Product Description

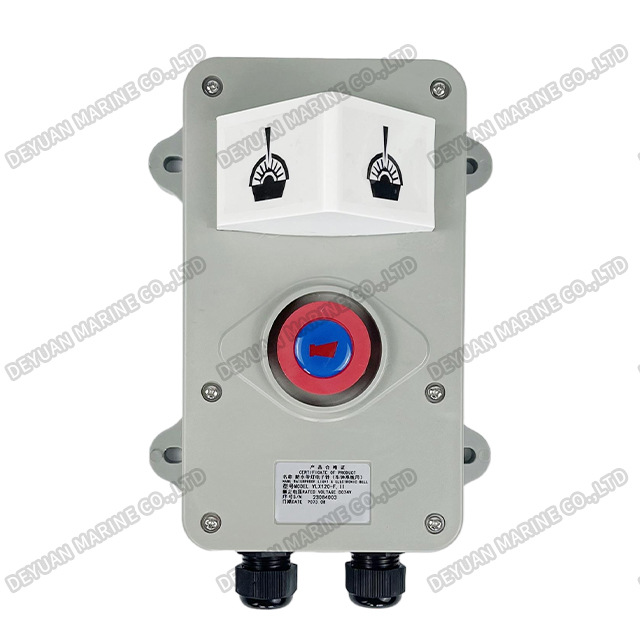

YLX120-F ,II Waterproof Light &Electronic Bell for Engine Telegraph System
Product Introduction
The Waterproof Illuminated Electronic Bell is an advanced marine signaling device engineered to deliver reliable audible and visual alerts in demanding maritime environments. This integrated unit combines a high-output electronic sounder with a bright visual indicator, ensuring critical alarms and signals are effectively communicated to crew members across various vessel areas.

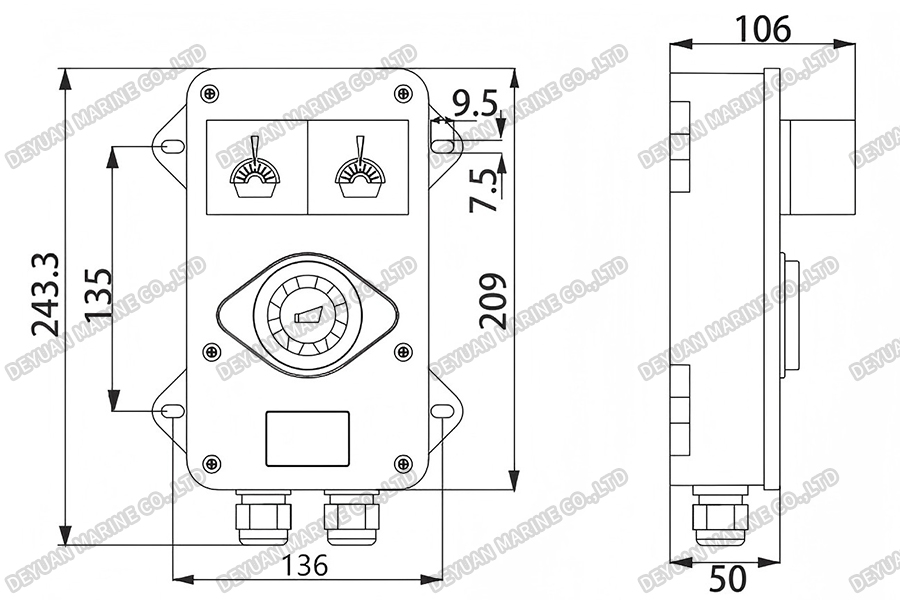

Drawing
Technical Data
| Power Supply | AC220V±10%，DC24V(+30%~-25%) |
| Environment Temperatur | -10～50℃ |
| Relative Humidity | <RH95% |
| Contact Capacity | AC250V/1A or DC30V/3A |
| Alarm Output | Passive Contact |
Key Features and Benefits
Robust Marine Construction
Clear Dual-Mode Signaling
Advanced Technical Specifications
Versatile Installation & Applications
Operational Reliability
The electronic bell provides immediate, unambiguous alerts during emergencies, operational changes, or routine notifications. The simultaneous audible and visual signals ensure notification reaches personnel even in noisy environments or when visual obstructions exist. The waterproof construction guarantees consistent performance in exposed locations subject to weather and washdown.
Engine Telegraph System1
Engine Telegraph System Connection Diagram1
Engine Telegraph System 2
Engine Telegraph System Connection Diagram 2
