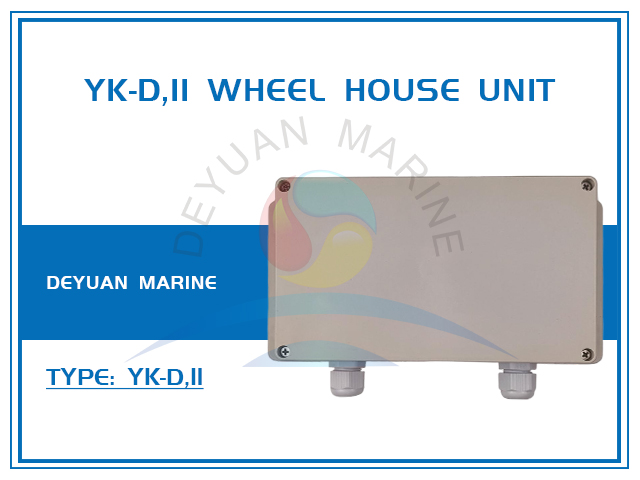

YK-D,II Wheel House Unit for Engine Telegraph System

YK-D,II Wheel House Unit for Engine Telegraph System

Product Introduction

The Marine Wheelhouse Control Unit serves as the central command hub and primary human-machine interface on modern vessel bridges. This integrated system consolidates critical navigation, propulsion, and monitoring functions into a unified, ergonomically optimized console, enabling officers to operate the vessel safely, efficiently, and with enhanced situational awareness.

Designed for the demanding marine environment, the unit features a rugged, corrosion-resistant housing rated to IP66 or higher, ensuring reliable performance under conditions of salt spray, vibration, moisture, and extreme temperatures. Its modular design incorporates high-brightness, sunlight-readable displays that simultaneously present real-time data from ECDIS, radar, conning, steering, propulsion, and power management systems. An intuitive layout of touch-screen panels, programmable buttons, and dedicated physical controls—for steering, thruster, and telegraph functions—allows for rapid, precise operation even in high-stress scenarios.

Beyond hardware resilience, the unit excels in digital integration. It functions as a data aggregation and distribution center, connecting seamlessly to onboard networks (NMEA 2000/0183, Ethernet, CAN bus) and third-party systems via standardized protocols. This centralization reduces operator workload, minimizes the risk of human error, and supports intelligent decision-making through features like alarm management, data logging, and system diagnostics. Suitable for both newbuilds and retrofit projects, the Wheelhouse Control Unit is a scalable, future-proof solution essential for achieving a streamlined, automated, and compliant bridge in the era of digital navigation.

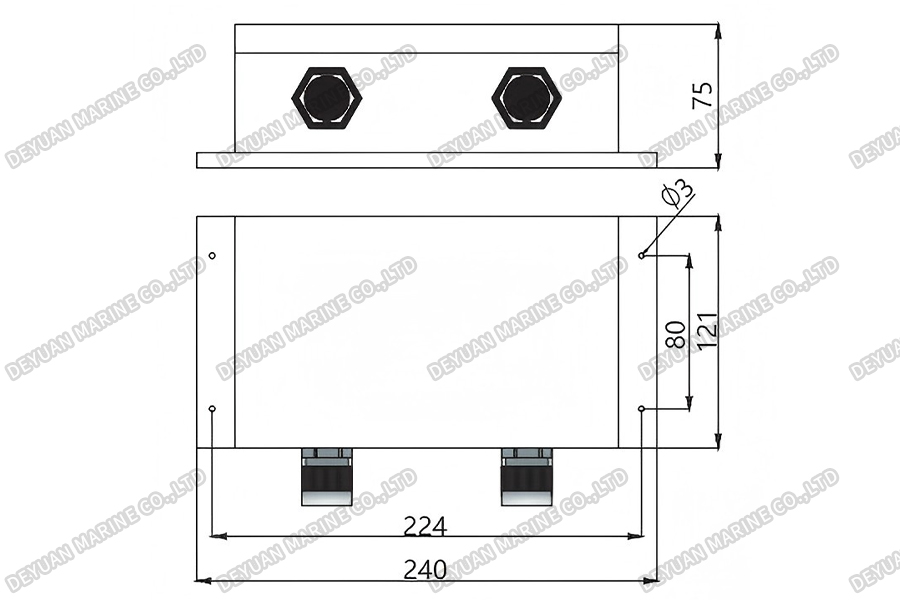

Drawing

Technical Data

Engine Telegraph System1

Engine Telegraph System Connection Diagram1

Engine Telegraph System 2

Engine Telegraph System Connection Diagram 2
