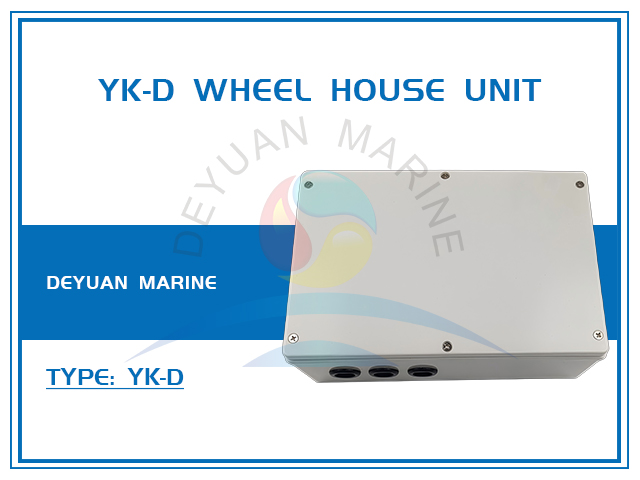

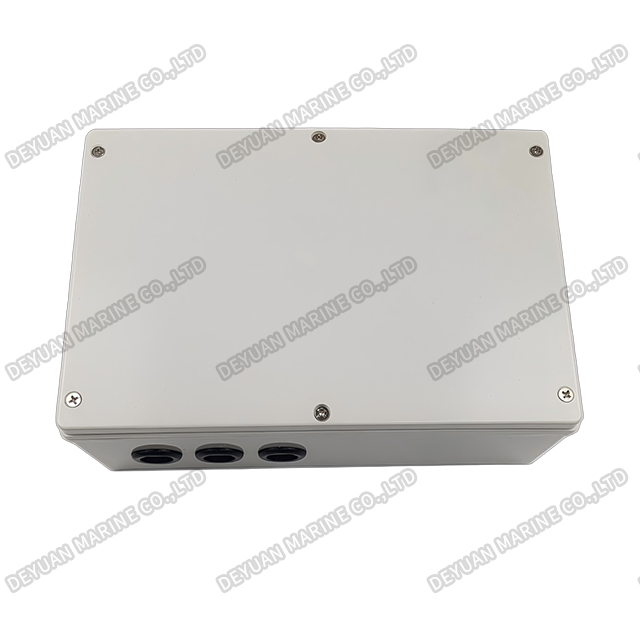

YK-D Wheel House Unit for Engine Telegraph System

YK-D Wheel House Unit for Engine Telegraph System

Product Introduction

The Wheelhouse Control Unit serves as the intelligent command center of a modern vessel's bridge, integrating navigation, control, and monitoring functions into a single, ergonomically designed interface. It is engineered to provide officers with comprehensive situational awareness and precise vessel command, enhancing operational safety and efficiency.

Constructed with marine-grade materials and featuring a robust, corrosion-resistant design, this unit withstands harsh maritime environments including salt spray, vibration, and extreme temperatures. Its core features include high-resolution, sunlight-readable displays that present real-time data from integrated systems such as ECDIS, radar, conning, propulsion, and dynamic positioning controls. The intuitive layout provides immediate access to critical functions like steering, engine telegraph, and thruster management through dedicated tactile controls and touch-screen interfaces.

A key advantage is its superior integration capability. The unit acts as a central hub, seamlessly connecting with onboard networks (NMEA 2000/0183, Ethernet) and external systems to unify data flow. This centralized access reduces cognitive workload, minimizes human error, and supports informed decision-making. Designed for both new builds and retrofits, the Wheelhouse Control Unit is a future-proof solution for achieving a streamlined, digitalized, and intelligent bridge operation, meeting the evolving demands of the maritime industry.

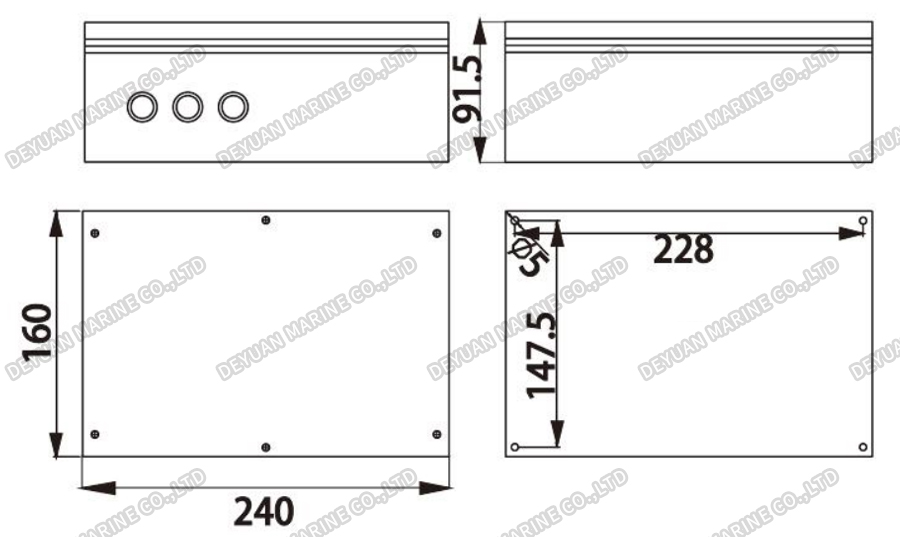

Drawing

Technical Data

Engine Telegraph System1

Engine Telegraph System Connection Diagram1

Engine Telegraph System 2

Engine Telegraph System Connection Diagram 2
