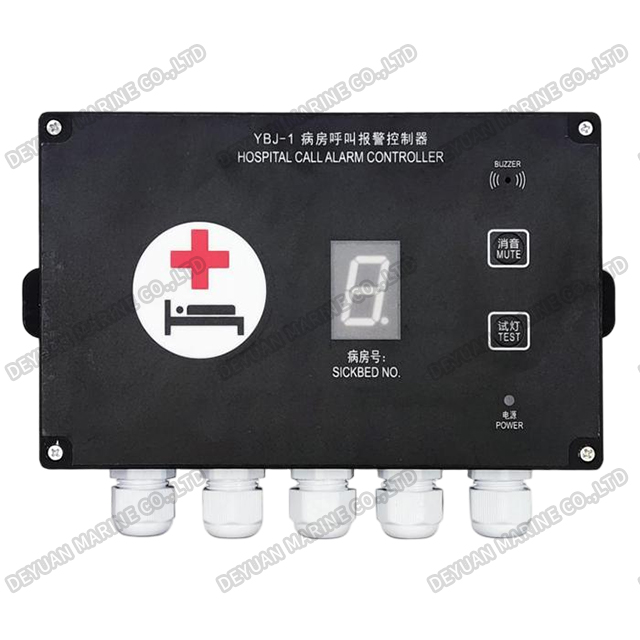

YBJ-1G Wall Type Hospital Call Alarm Controller

YBJ-1G Wall Type Hospital Call Alarm Controller

Product Introduction

The Wall-Mounted Marine Hospital Call Alarm Controller is a critical surface-installed emergency communication device engineered specifically for onboard medical facilities. Designed as the primary interface between patients and medical personnel, this robust controller provides immediate emergency alert capability in ship infirmaries, isolation rooms, and crew medical centers. With its marine-optimized construction and intuitive operation, it ensures reliable performance even during severe sea conditions when rapid medical response is most crucial.

Technical Features and Design

Constructed with heavy-duty 316L stainless steel housing and IP66-rated protection, this controller withstands corrosive saltwater environments and high-pressure washdowns. The unit features an oversized, backlit emergency call button with tactile feedback for easy activation by distressed patients. Integrated two-way hands-free communication enables clear dialogue between patients and medical staff, while multicolor LED indicators provide immediate visual status confirmation. The vandal-resistant polycarbonate fascia and UV-stable components ensure long-term durability in demanding marine applications.

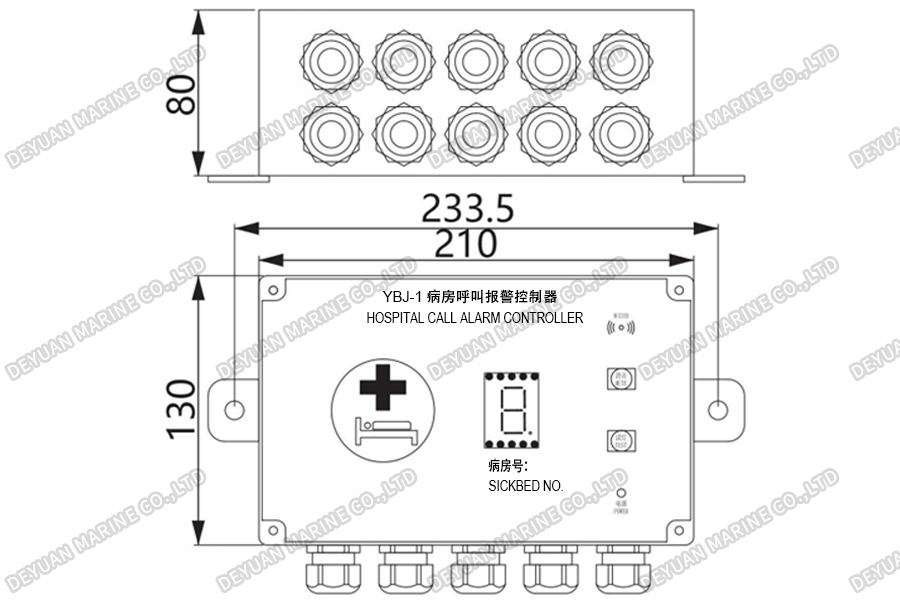

Drawing

Technical Data

Compliance and Integration

Fully compliant with SOLAS medical facility requirements and IMO guidelines, the controller seamlessly integrates with existing shipboard alarm systems and bridge monitoring stations. Its configurable relay outputs support connection to central nursing stations, while optional wireless capability allows flexible system expansion. The unit operates on standard 24V DC shipboard power with emergency backup support, featuring wide voltage tolerance and extended temperature range operation from -25°C to +70°C for reliable performance in all climate zones.

Installation and Applications

Designed for rapid deployment, the controller utilizes a four-point mounting system with anti-vibration hardware for secure installation in medical bays, crew clinics, and high-risk areas. The surface-mount design accommodates both exposed conduit and concealed wiring installations, making it ideal for new builds and retrofit applications. Complete with installation template and waterproof cable glands, this system represents a comprehensive solution for maritime medical emergency communication needs.

Hospital Call Alarm System

Hospital Call Alarm System Connection Diagram
