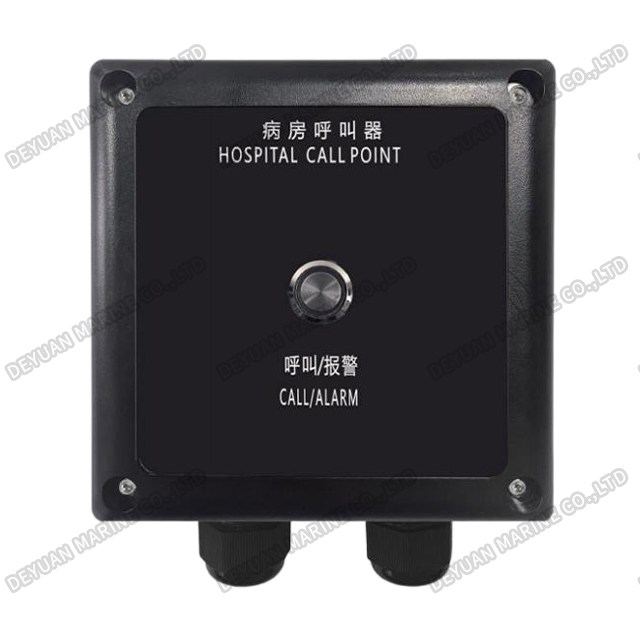

AN-1G Wall Type Hospital Call Point

AN-1G Wall Type Hospital Call Point

Product Introduction

The Marine Wall Type Hospital Call Point is a surface-mounted emergency medical alert device engineered for immediate patient-activated communication in maritime healthcare environments. Designed as a primary interface for medical emergencies, this robust unit enables patients and crew members to quickly summon assistance from ship infirmaries, medical cabins, and designated care areas. With its prominent positioning and intuitive operation, it serves as a vital lifeline during medical situations at sea, ensuring rapid response from onboard medical personnel.

System Integration & Operational Performance

Equipped with versatile dry contact outputs and configurable input voltages, this call point seamlessly integrates with existing marine hospital call systems and central monitoring stations. The device features a two-stage activation mechanism requiring deliberate pressure to prevent accidental triggers, along with an integrated test function for routine maintenance verification. Its low-power consumption design operates efficiently on standard 24V DC shipboard power with built-in surge protection and reverse polarity safeguards. The unit supports both momentary and maintained contact operation, with optional reset key functionality for controlled system management.

Certification & Installation Benefits

Certified according to SOLAS medical facility requirements and major classification society standards, this wall-mounted call point offers simplified installation with pre-drilled mounting patterns and clear terminal identification. The surface-mount design eliminates the need for complex cutting operations, making it ideal for retrofit applications and quick deployment in emergency medical scenarios. With its vandal-resistant construction, antimicrobial surface treatment, and minimal maintenance requirements, this hospital call point provides reliable long-term service while enhancing overall vessel medical response capabilities and crew safety protocols.

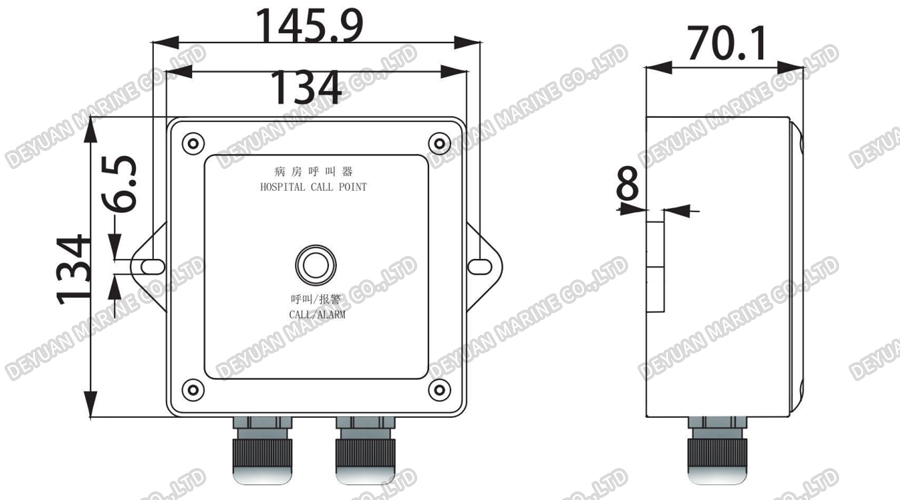

Drawing

Technical Data

Hospital Call Alarm System

Hospital Call Alarm System Connection Diagram
