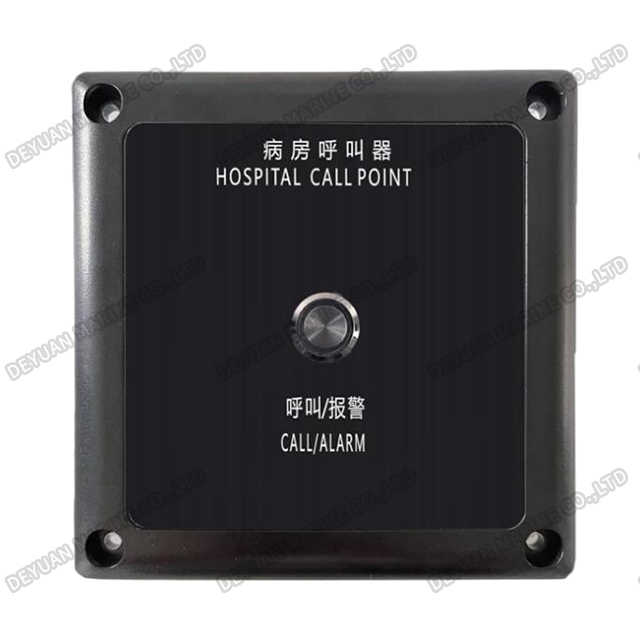

AN-1Q Flush Type Hospital Call Point

AN-1Q Flush Type Hospital Call Point

Product Introduction

The Marine Flush Type Hospital Call Point is a critical emergency communication device designed specifically for patient-initiated medical alerts in onboard healthcare facilities. Engineered for discreet yet accessible installation in ship infirmaries, isolation rooms, and medical cabins, this flush-mounted unit provides immediate emergency contact capability for patients and crew members requiring medical assistance. With its seamless integration into vessel interiors and marine-optimized construction, it ensures reliable emergency communication during medical crises at sea.

System Integration & Functional Advantages

Equipped with configurable normally-open/normally-closed contacts and voltage-free operation, this call point seamlessly interfaces with all major marine hospital call systems. The unit features integrated status indication with multicolor LED feedback (red for activated, green for ready, amber for fault) and optional reset key operation for authorized personnel. Its low-power design operates reliably on standard shipboard 24V DC systems with built-in surge protection and reverse polarity safeguards. The call point supports both momentary and latching activation modes, with programmable alert duration and automatic system testing capabilities.

Certification & Installation Excellence

Fully compliant with SOLAS medical facility requirements and international marine standards, this flush-mounted call point is certified by major classification societies for maritime use. The installation system includes precision mounting templates and adjustable depth settings for various bulkhead thicknesses, ensuring perfect alignment and secure mounting. With its vandal-resistant design, antimicrobial surface treatment, and minimal maintenance requirements, this hospital call point represents a reliable, long-term solution for maritime medical emergency communication needs in both newbuild and retrofit applications.

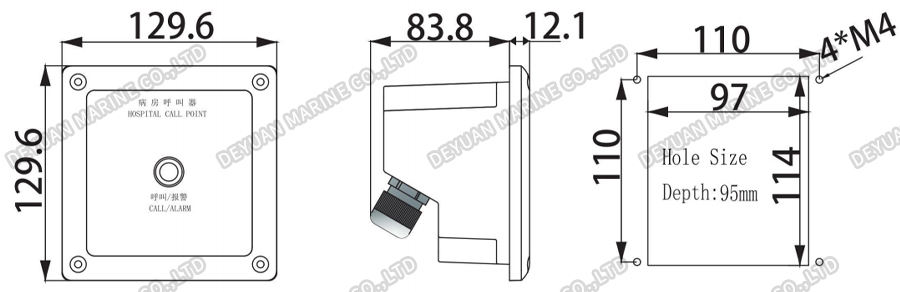

Drawing

Technical Data

Hospital Call Alarm System

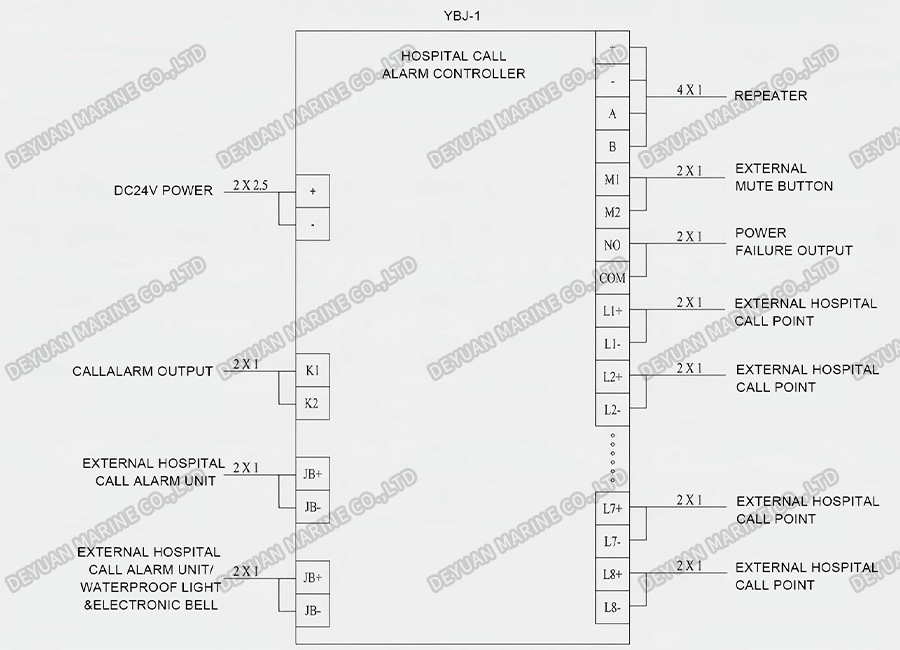

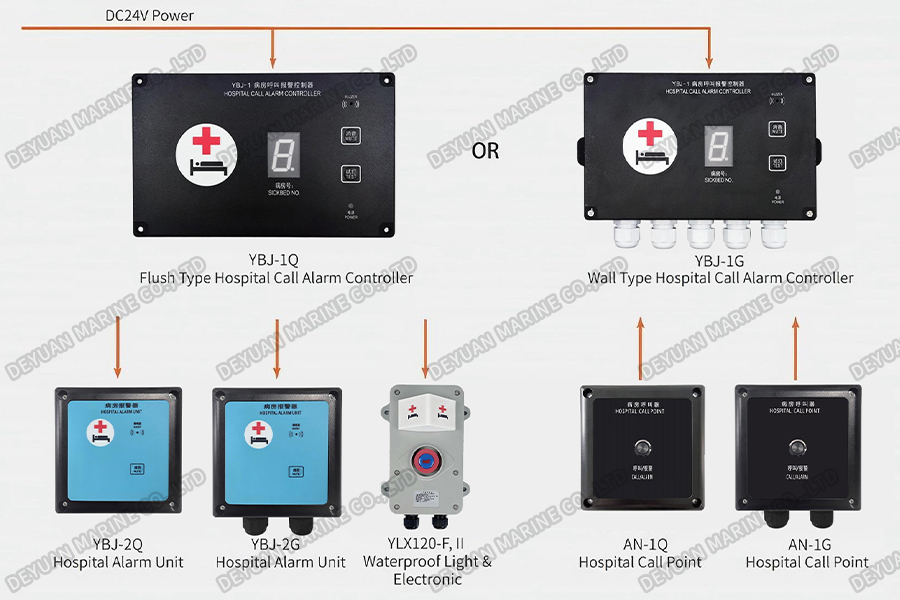

Hospital Call Alarm System Connection Diagram
