Product Description
WS-CR Marine Clear View Screen
Product Introduction

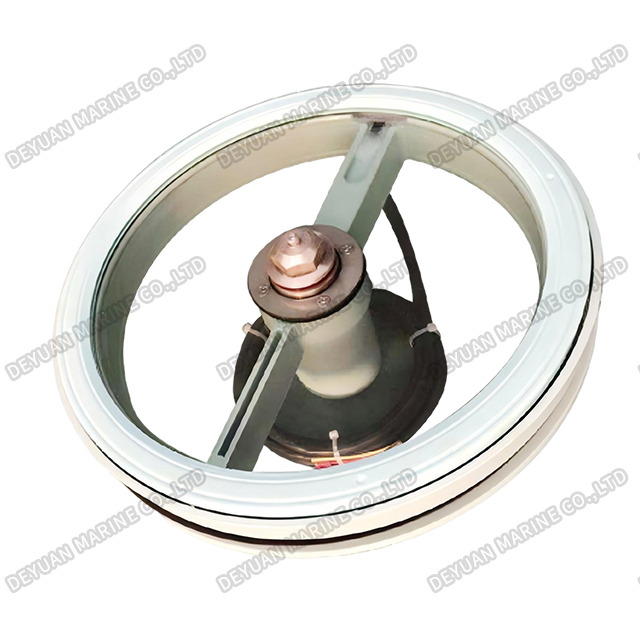

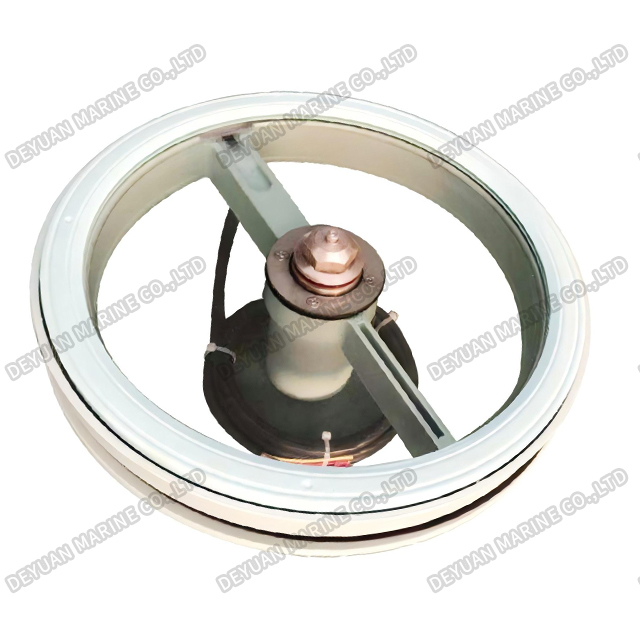

WS-CR Marine Clear View Screen is mainly composed of three parts: main frame, motor and glass disk. Rotary windows are installed on the window of the wheelhouse of a ship. When working, waves,rain, snow and hail are immediately thrown away by the centrifugal force of rotation, so as to ensure that water does not adhere to the glass and keep the vision clear. Marine Clear View Screen can be equipped with electric heating devices to melt ice and snow in low temperature and snow environment,to ensure that the glass pan and main frame of windows do not freeze, snow, reliable work.
Technological Parameters
| Ambient air humidity | -25℃~+55℃ |
| Power specification | AC220V 50Hz |
| Translucent diameter | WS-300CR Type φ300mm WS-350CR Type φ350mm |
| speed | ≥1400 rpm/min (50Hz) |
| Power Consumption of Windows | ≤90W |
| Electic Heater Power Consumption | ≤250W |
| Protection level | Electric Motor IP22 |
| weight | ≤12kg |
| Windows IP55 in Working State | |
Relevant Dimensional Parameters

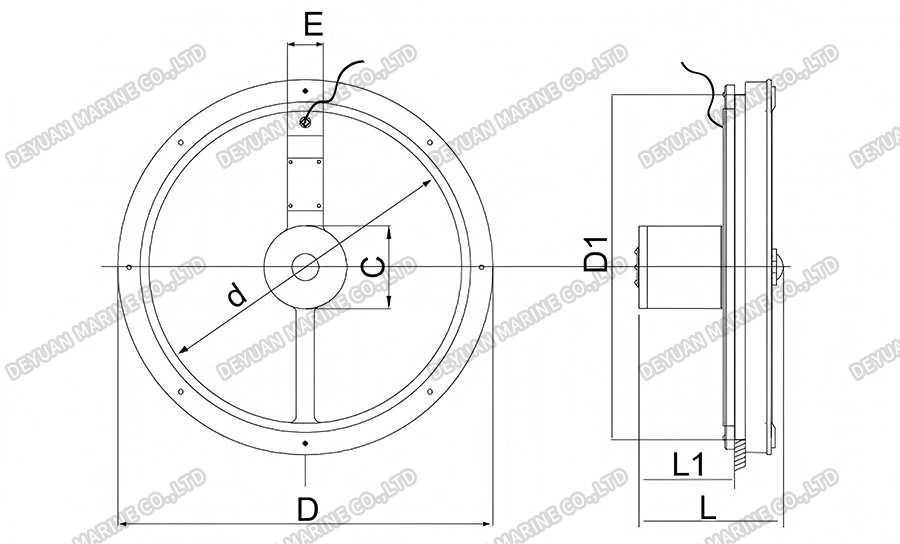

1.External Dimensions
| Type | WS-300CR | WS-350CR |
| Outer diameter D | Ø370mm | Ø420mm |
| Translucent diameter d | Ø300mm | Ø350mm |
| Motor outer diameter c | Ø93mm | Ø93mm |
| Line width E | 36mm | 36mm |
| Installation Dimension D1 | Ø339mm | Ø389mm |

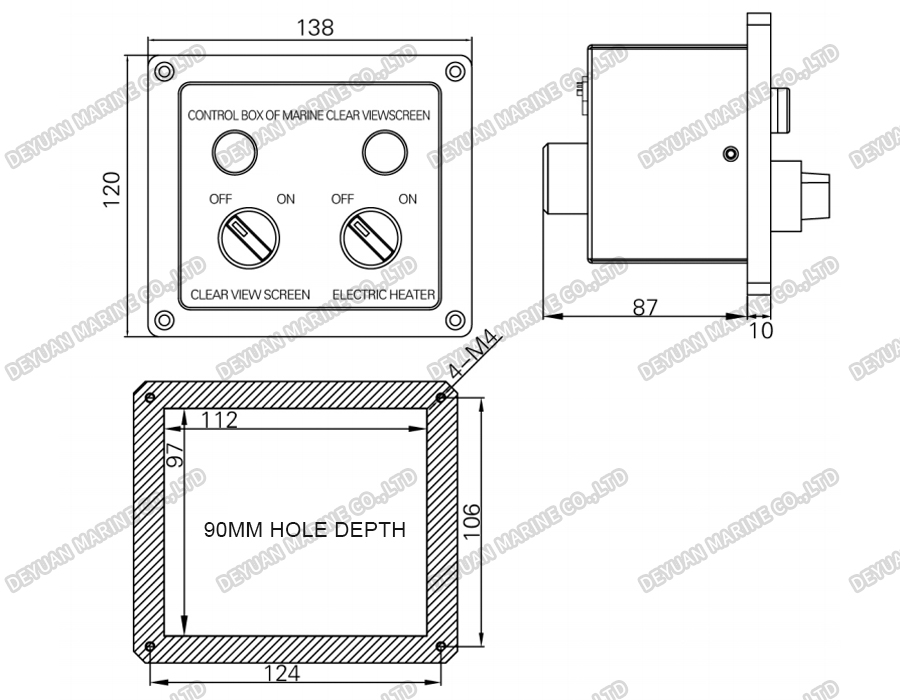

2.Control Box External Dimensions And Installation Dimensions

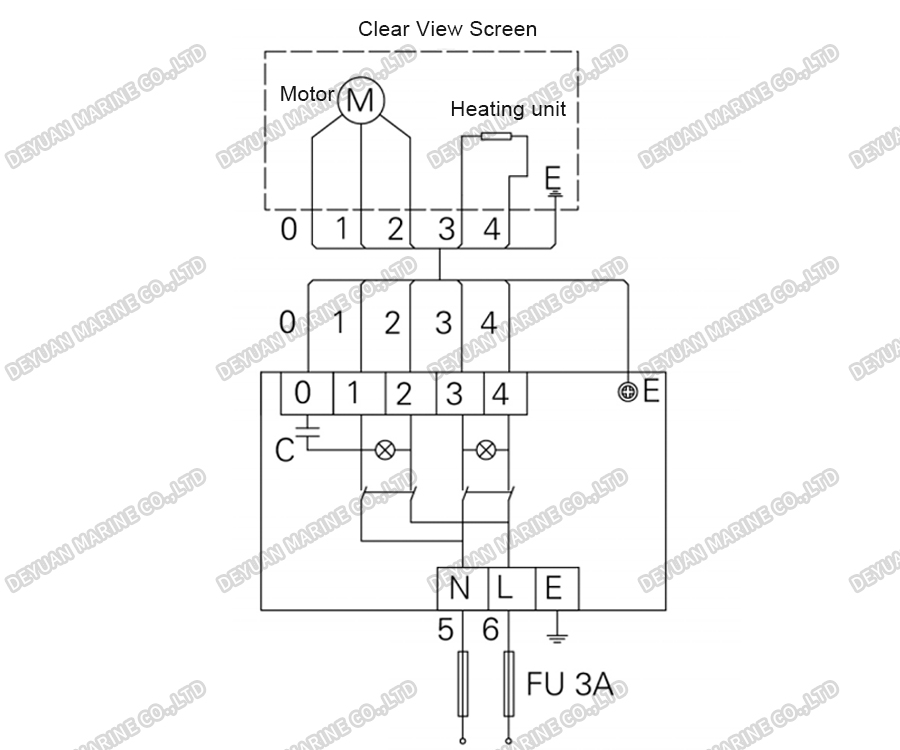

3.Electrical Wiring Diagram
Installation Parameters

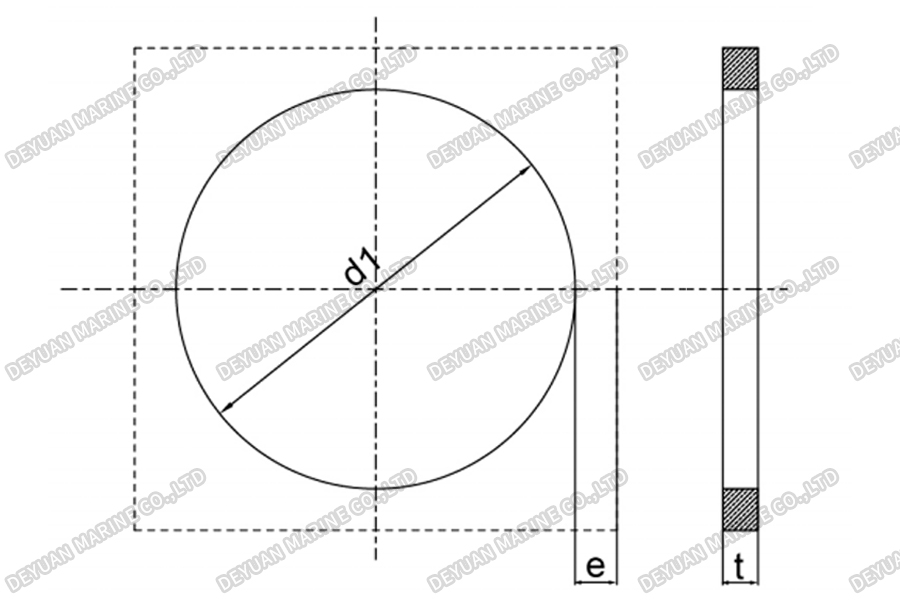

The equipment is installed on the tempered glass or metal wall of the wheelhouse of a ship,the diameter of the opening is d1;the minimum distance from the window edge to the transparent edge of the glass is e;and the thickness of the installation wall is t.
| Type | WS-300CR | WS-350CR |
| Mounting wall opening dimensions(d1) | Ø341+1mm | Ø391+1mm |
| Mounting hole edge distance(e) | ≥50mm | |
| Mounting wall thickness(t) | 10,12,15,(19)mm | |
