Product Description

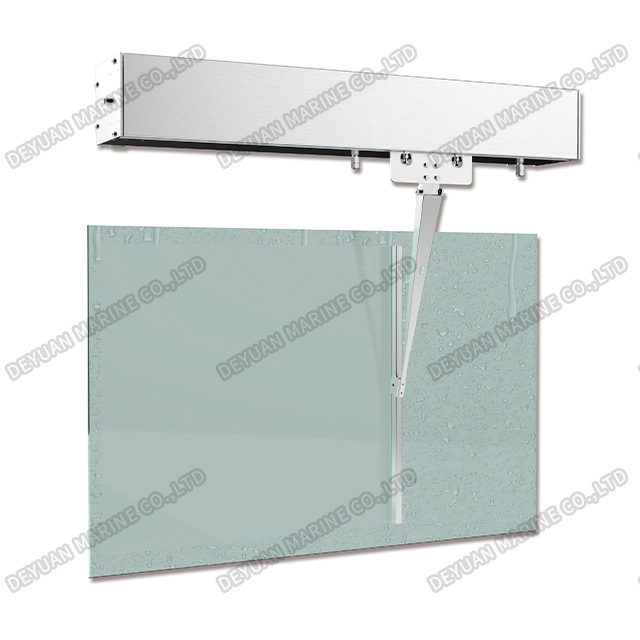

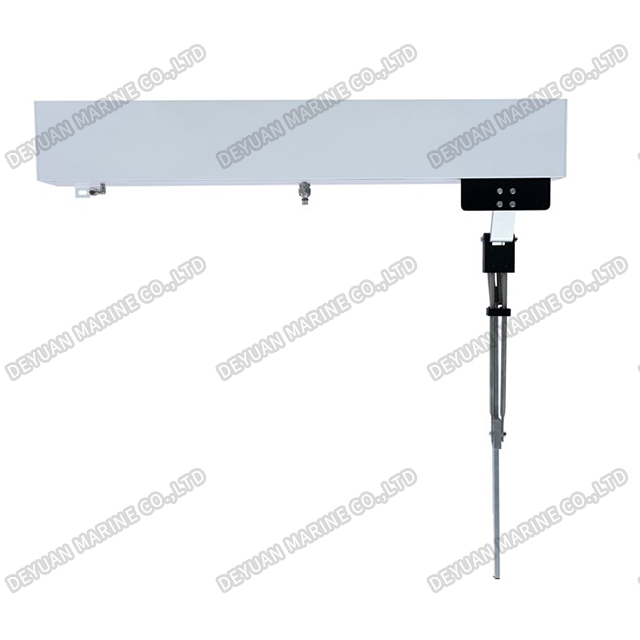

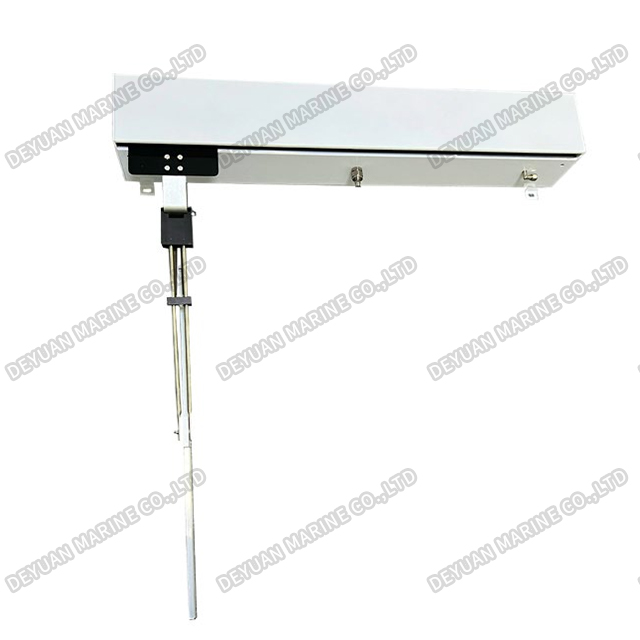

WGP-ZR Straight Line Wiper
Product Introduction

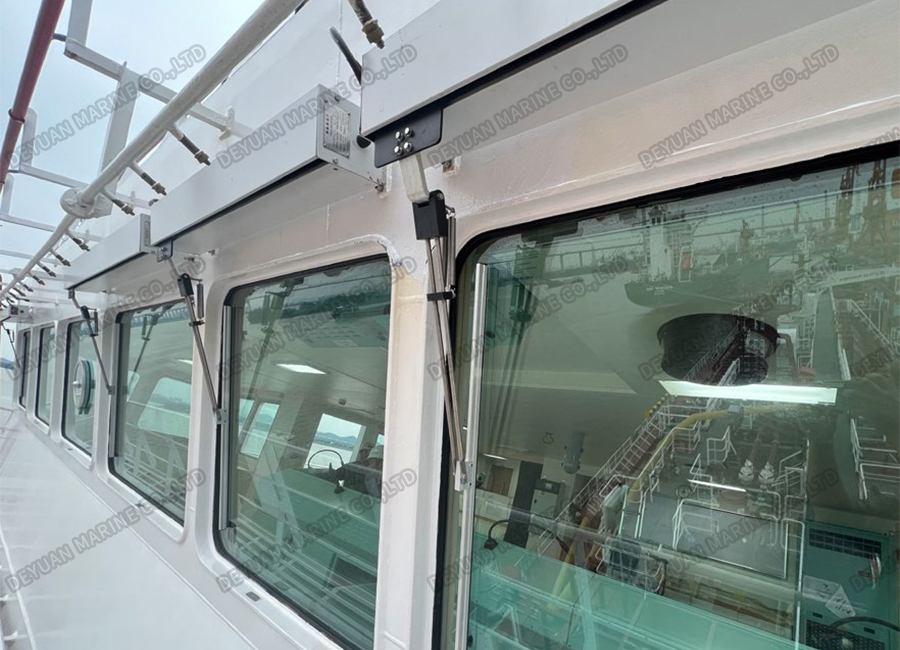

WGP-ZR type Straight line wiper is a type of electrical product for clearing rain and snow on the windows of ships and large machinery operating rooms. It uses regulated motor as the power source and an aluminum alloy shell as the guide rail.
The reduction gear and drive gear transfer the power to drive the rubber blade on the bottom of the stainless-steel arm, making a parallel reciprocating wiping on the glass, to achieve a clear view when it is raining, snowing or wave flapping.
This product is suitable for various types of warships, military auxiliary ships, commercial ships, and large mechanical equipment.
This product complies with the standard CB1366-2002 "General Specification for Ship Windshield Wipers"; complies with the international standard ISO17899:2004 "Ships and marine technology – Marine electric window wipers"; complies with IEC 60945(2002) Environmental Tests.
Main functions
Functions such as water spraying, air spraying, heating, continuous scraping, gap scraping, synchronous scraping, and side parking.

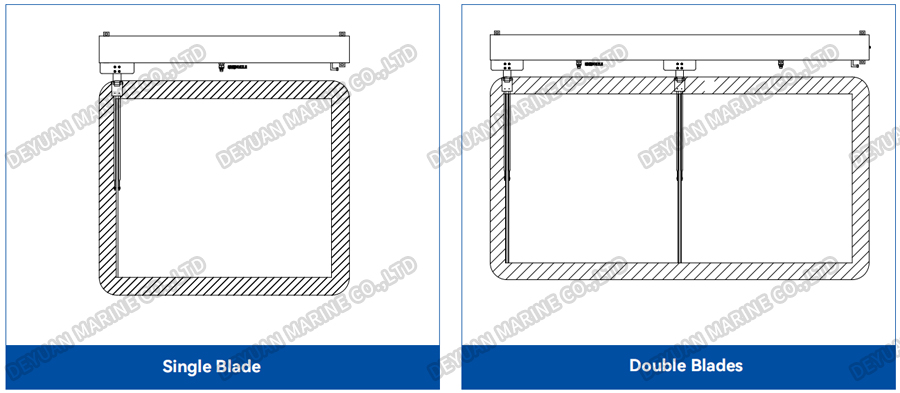

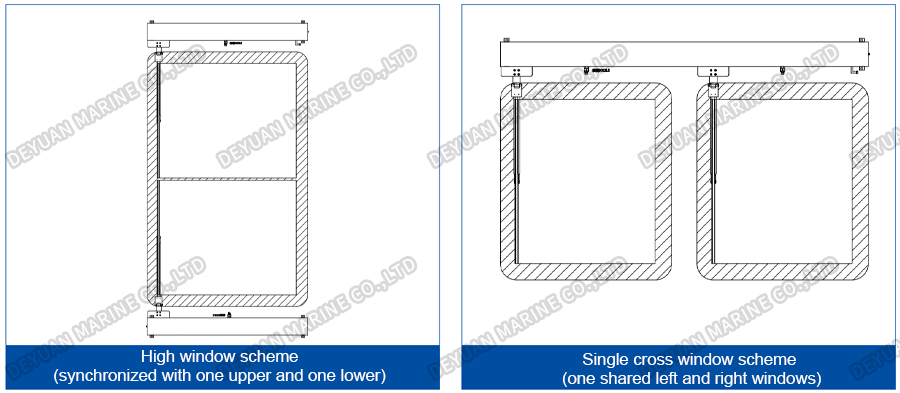

Drawing
Main technical parameters
| Motor power | ≤ 120W |
| Heater power | ≤ 300W |
| Scraping speed | 0.3m/s~1.2m/s |
| Installation method | The main engine housing is installed above or below the outdoor porhole, and the control panel is embedded and installed on the driver's control panel or embedded and installed on the cabin wall. |
| Communication methods | RS485 communication, CAN communication. |
