Product Description
CVS Clear View Screen
Product Introduction
The airtight type of CVS adopts a double-layer glass structure, completely preventing external rainwater and waves from entering the room directly from this window. Under normal conditions, it has airtightness and better visibility, making it more suitable for various oil tankers, chemical ships, and high-speed ships. the CVS utilizes the centrifugal force generated by the high-speed rotation of the glass optic disc directly driven by an electric motor installed in the center of the main frame to remove rain, snow, waves, and splashes attached to the window, in order to maintain a clear view. This product is equipped with an electric melting ice device, suitable for allweather navigation.
This product complies with the CB644-1992 《Marine Clear View Screen》.

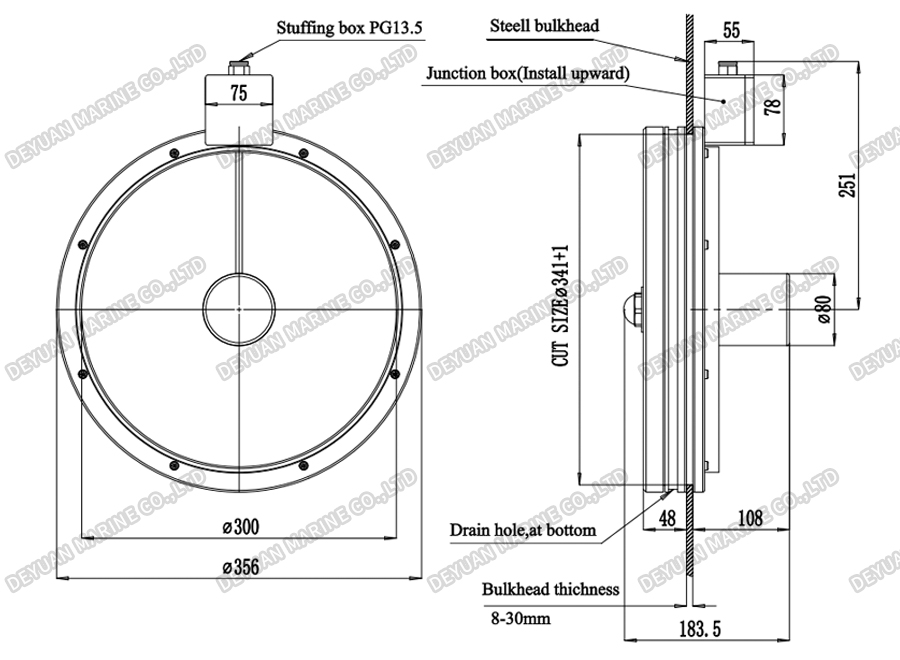

Drawing
Main Technical Specifications
1. Power Supply Voltage: AC220V, AC110V, DC24V
2. Rotation Speed: ≥1400rpm
3. Motor Power: ≤80W
4. Heating Power: ≤250W
5. Installation Glass Thickness: 8~28mm
| Model Number | Outer Diameter | Light Transmission Diameter | Porthole Opening Size | Weight |
| CVS300 | φ300 | 341+10 | 10.5 | |
| CVS350 | φ350 | 391+10 | 12.5 |
