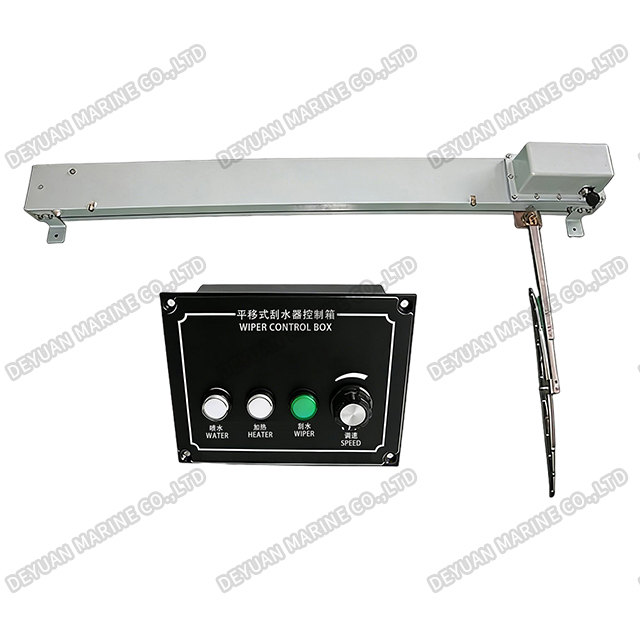

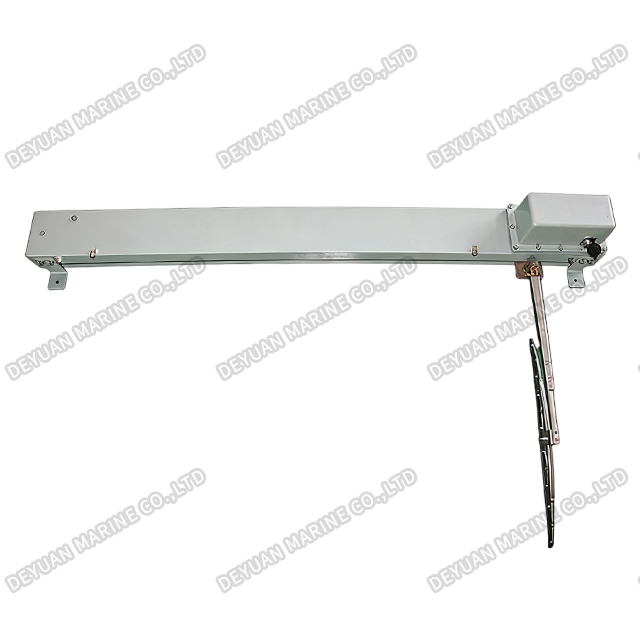

WGP Horizontal Electric Window Wiper

WGP Horizontal Electric Window Wiper

Product Introduction

WGP type horizontal electric window wiper is a kind of electrical window wiper to be used for windows in wheelhouse or operating cab in a vessel.it has a speed-adjustable motor-driven power,rails are made of aluminum alloy,and it drives rubber wiper blade installed at bottom of stainless steel swing rod to wipe the glass horizontally through the transmission, and in order to maintain a clear vision in the ocean waves crashing, rain and snow and other environments. This product is appropriate for various vessels and civil vessels.

Application

This product complies with CCS《Rules For Classification Of Sea-going Steel Ships》(2006)and CB1366-2002《General Specification for Naval Vessel Window Wiper》

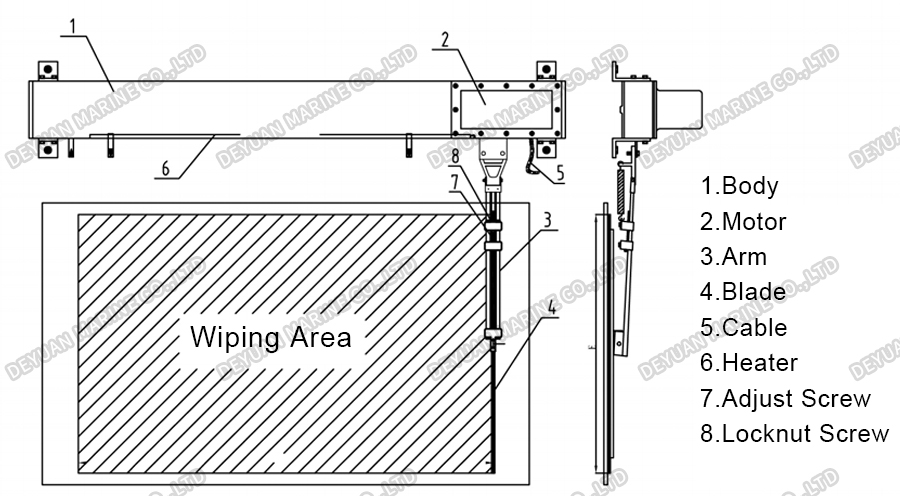

Drawing

Technological Parameters

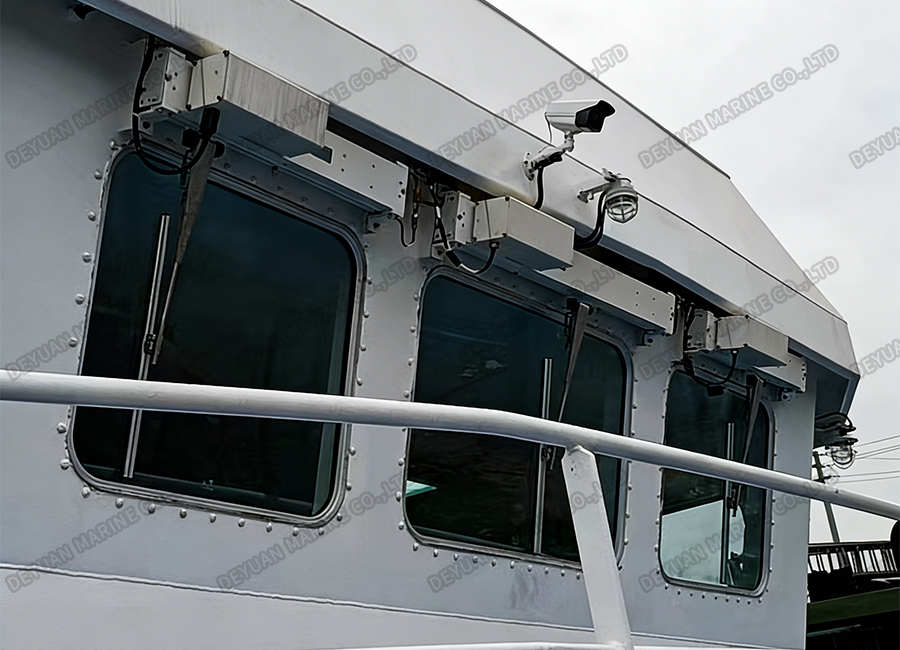

Installation

Main unit is mounted above the outdoor side scuttle and the rod is downwards. If the customer has other installation requirements, we can confirm both technologies for custom-designed;
