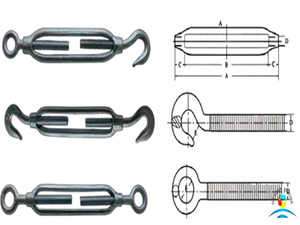

JIS F-3403 Galvanized Carbon Steel Rigging Screws
This carbon steel rigging screws or turnbuckles are fabricated as per the JIS F3403 standard,available material is Carbon Steel & Alloy Steel,with size ranging from 3/16”-3/4”
Drop Forged technology are adopted during the production,surface treatment finish by Galvanized,painted and others.
Except JIS F3403 rigging screws or turnbuckles,deyuan marine also offer other type turnbuckles,such as US type,DIN type,Korean type etc.If you need any help with any of our rigging screws or turnbuckles,pls donot hesitate to contact our sales team for more details.
| SIZE | DIA.OF WIRE ROPE | SWL | WEIGHT |
| MM | MM | TON | KG/PC |
| 14 | 14 | 2.1 | 5.97 |
| 16 | 16 | 2.6 | 8.58 |
| 18 | 18 | 3.3 | 11.6 |
| 22 | 22/22.4 | 5.1 | 14.8 |
| 24 | 24 | 5.9 | 19.4 |
| 25 | 25 | 6.9 | 23.9 |
| 30 | 28/30 | 9.2 | 30.2 |
| 32 | 32 | 10.5 | 36.2 |
| 34 | 34 | 11.5 | 43.2 |
| 36 | 36 | 13 | 51.1 |
| 38 | 38 | 14.5 | 59.9 |
| 40 | 40 | 16.5 | 70.7 |
| 42 | 42.5 | 18.5 | 93.5 |
| 45 | 45 | 21 | 105 |
| 48 | 47.5 | 23 | 117 |
| 50 | 50 | 25.5 | 124 |
Other Turnbuckles for reference
1)Malleable Iron Commercial Type Turnbuckle
| SIZE | WILL | L | C | WEIGHT EACH |
| MM | KG | MM | MM | KG |
| 6X100 | 100 | 100 | 215 | 0.16 |
| 8X125 | 200 | 125 | 280 | 0.24 |
| 10X150 | 300 | 150 | 325 | 0.39 |
| 12X200 | 500 | 200 | 430 | 0.64 |
| 16X250 | 1000 | 250 | 540 | 1.44 |
| 20X300 | 1500 | 300 | 670 | 2.45 |
| 22X320 | 2200 | 325 | 740 | 3.6 |
| 24X350 | 3000 | 350 | 830 | 5 |
| 28X360 | 3500 | 360 | 790 | 3.66 |
| 30X385 | 3800 | 385 | 865 | 4.89 |
| 32X385 | 3800 | 385 | 865 | 4.89 |
| 38X490 | 5350 | 490 | 1125 | 11.26 |
| 40X490 | 5350 | 490 | 1125 | 11.26 |
2)Korean Type Turnbuckles
| Size(in) | Dimensions(mm) | Weight (lbs) | ||||||
| A | B | C | D | E | F | G | ||
| 3/16" | 57.4 | 41.2 | 41.5 | 18.4 | 15 | 36 | 54.6 | 66 |
| 5/16" | 90 | 70 | 8 | 11 | 22 | 65 | 95 | 320 |
| 3/8" | 160 | 130 | 9 | 17 | 30 | 85 | 130 | 761 |
| 1/2" | 190 | 155 | 10 | 20 | 30 | 95 | 150 | 1236 |
| 1/2"(long) | 255 | 215 | 10 | 30 | 35 | 140 | 190 | 1743 |
| 5/8" | 250 | 200 | 15 | 25 | 45 | 130 | 190 | 2471 |
| 5/8"(long) | 350 | 300 | 15 | 30 | 45 | 180 | 240 | 3398 |
| 3/4" | 250 | 200 | 20 | 35 | 45 | 140 | 210 | 3685 |
| 3/4"(long) | 300 | 245 | 20 | 40 | 55 | 170 | 240 | 4523 |
3)Rigging Screws
