Product Description
Shipboard Wet Unit System
Wet unit system is engineered for reliable performance in demanding onboard environments. It can be fully customized to meet your specific operational requirements—whether for space constraints, capacity needs, or integration with existing shipboard systems. From layout and materials to control interfaces, we tailor every detail to ensure optimal efficiency and compliance with marine standards.
Specifications:
| NO | NAME | DESCRIPTION |
| 1 | Floor | Tile On 3.0mm Steel Plate w/Shower |
| 2 | Wall | PVC liminated steel plate with rock wool 30mm with galv.steel |
| 3 | Ceiling | PVC liminated steel plate with rock wool 30mm with galv.steel |
| 4 | Door leaf | PVC liminated galv.steel plate |
| 5 | Door frame | Baked enamel on steel sheet |
| 6 | Bathroom lock | Stainless steel |
| 7 | Glass holder | Stainless steel |
| 8 | Vacuum Toilet | Vitreous china (wall hung type) |
| 9 | Wash basin | Vitreous china (wall hung type) white,with turn up drain plug |
| 10 | Faucet | Chromium plated brass,with marked for identification of hot and cold water |
| 11 | Showers,hoses,tie rods | Showers,hoses,tie rods |
| 12 | Bathub mixer | Chromium plated brass |
| 13 | Vavle | Chromium plated brass |
| 14 | Cold&Hot water water pipes | Sus304 pipe (wrapped with insulation) with stip valve &reducer φ15x2.0mm |
| 15 | Ball Faucet | SUS304G1/2"Male thread |
| 16 | Toilet cabinet | Baked enamel on steel plate |
| 17 | Curtain rail | Plastic aluminum |
| 18 | Tassel hook | Chromium plated brass |
| 19 | Curtain | Nylon cloth 1980x1800mm |
| 20 | Grab rail | Stainless steel plated brass L=300mm |
| 21 | Hat&coat hook | Stainless steel |
| 22 | Towel bar | Stainless steel L=450mm |
| 23 | Soap dish | Stainless steel |
| 24 | Paper holder | Stainless steel |
| 25 | Toilet brush | Plastic |
| 26 | Stype trap | Stainless steel |
| 27 | Door holder | Stainless steel |
| 28 | Scupper | 150x150 Stainless steel |
| 29 | LED Mirror lamp | Water proof fluorescent lamp FL.2*4WAC220V 60HZ IP44 |
| 30 | Cable junction box | plastic 4 holes and 4 wires IP56220V50HZ |
| 31 | Cable | CJPFISC compliant with IEC standards |
| 32 | Outlet pipe | Ø48*3 Galv.steel pipe with rubber hose(L=300) |
| 33 | Sewage pipe | Ø114 Galv.steel pipe with rubber hose(L=300) &sus clamp |
| 34 | Clamp | SUS304 Stainless steel φ48-60 |
| 35 | Clamp | SUS304 Stainless steel φ90/φ114 |
| 36 | Exhaust fan | Stainless steel, white baked paint, with L=400mm aluminum foil flexible hose (including clamps) |
| 37 | Glass holder | SUS304 Stainless steel |
Deyuan Marine provides one-stop sourcing services and offers tailor-made products on request.

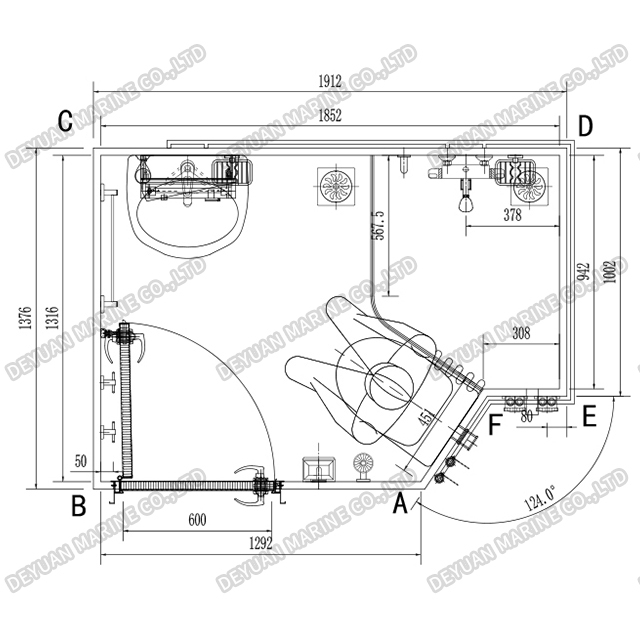

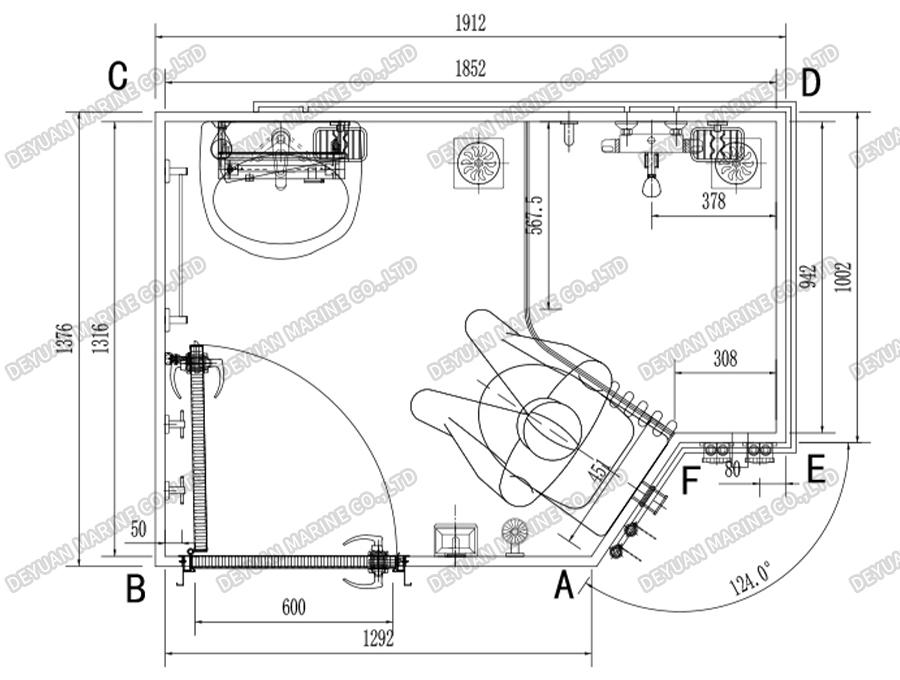

Detail Plan of Wet Unit:

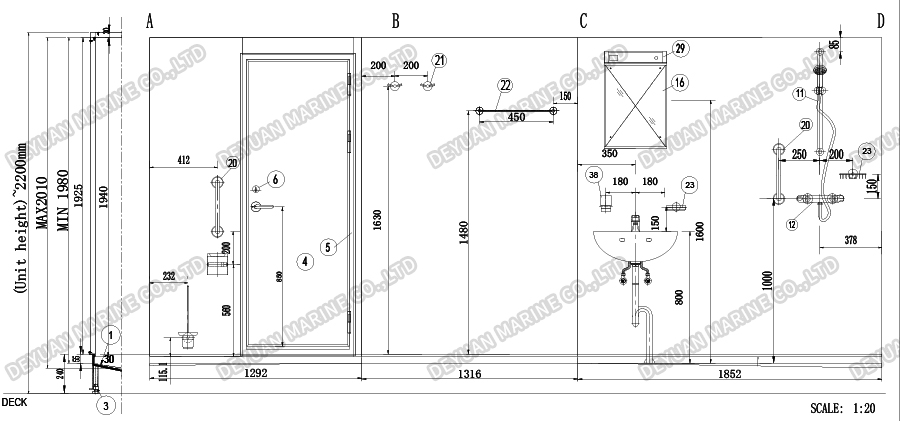

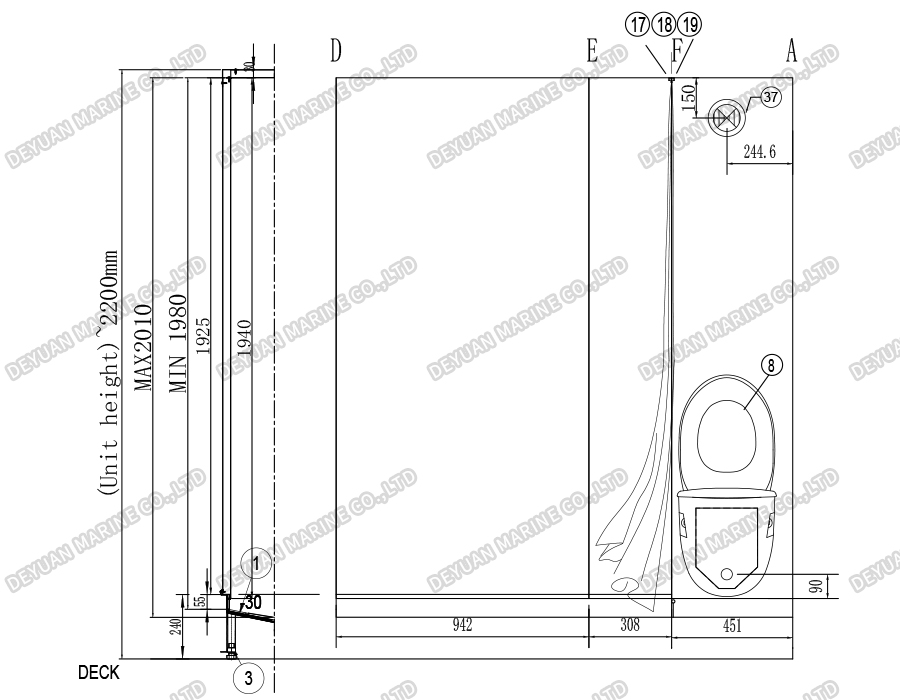

View From The Inside of Wet Unit:

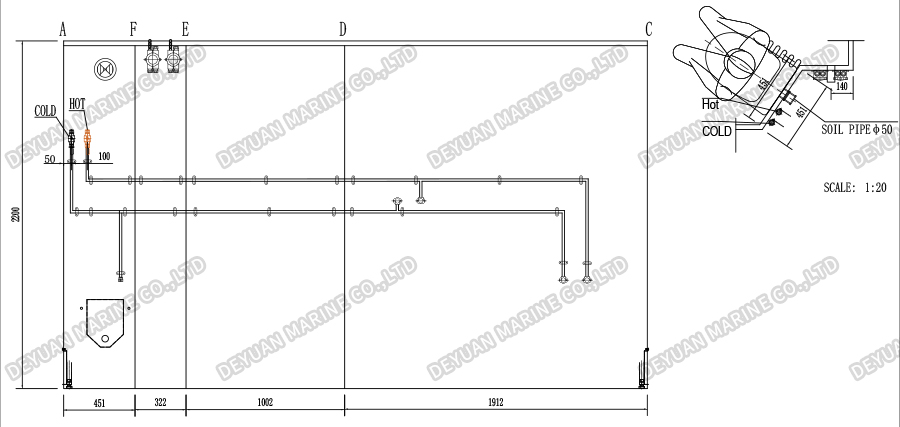

View From The Outside of Wet Unit:
