Product Description

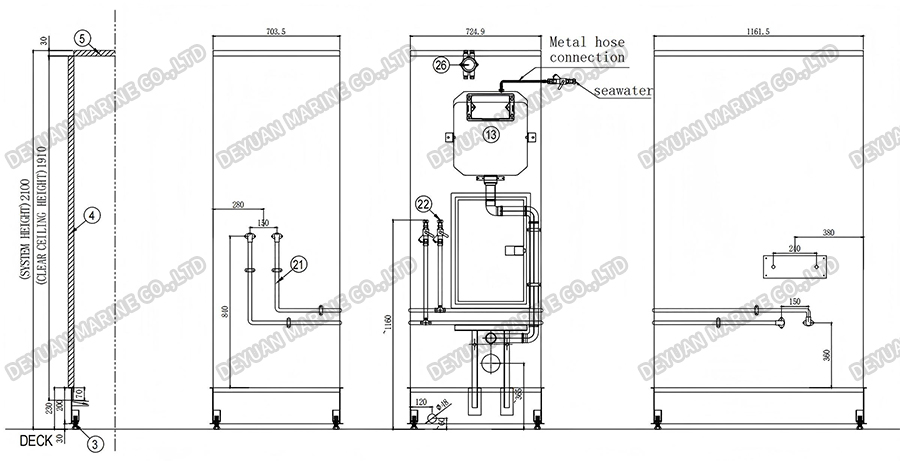

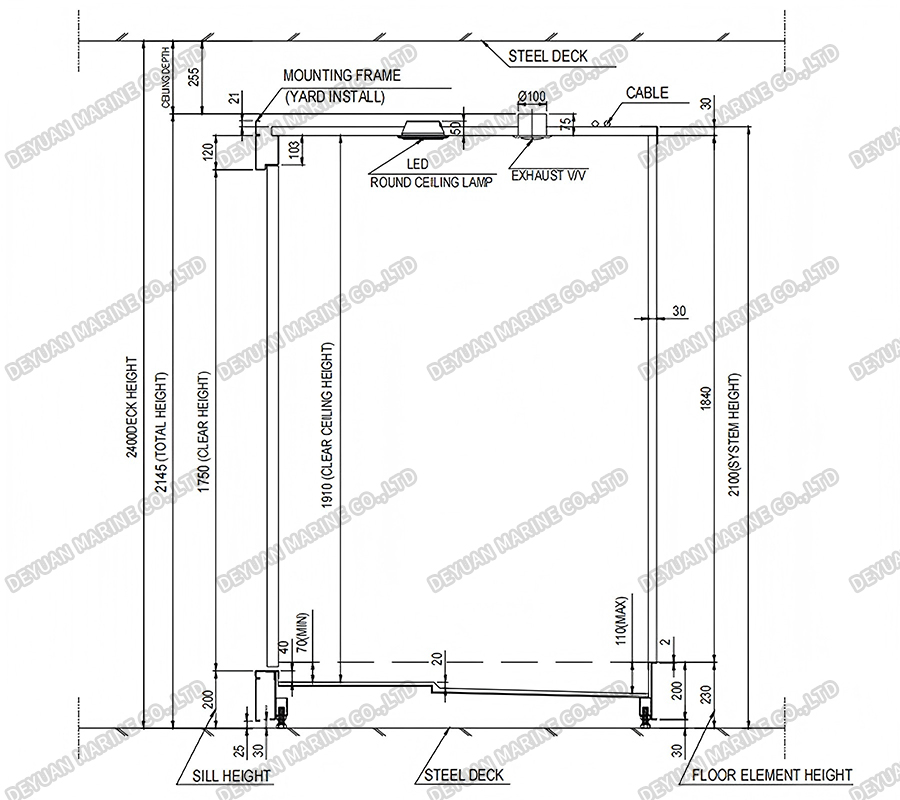

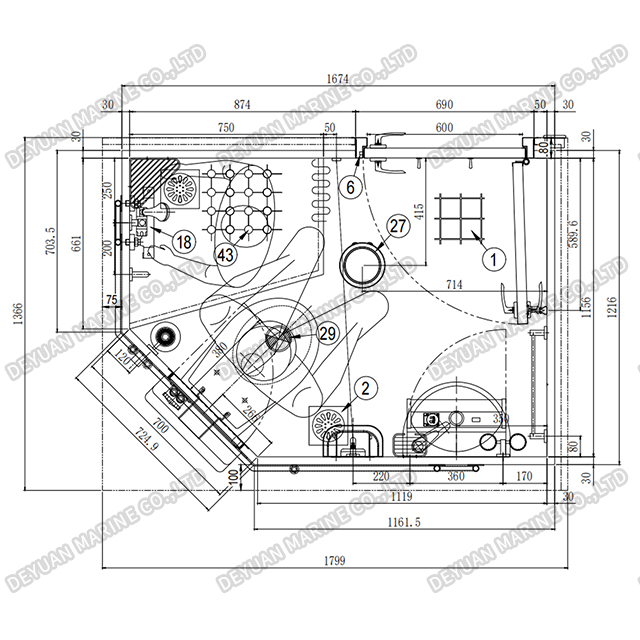

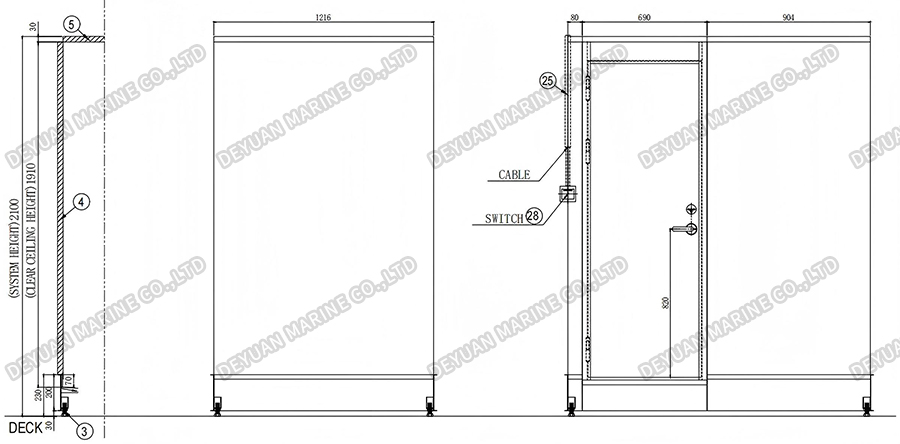

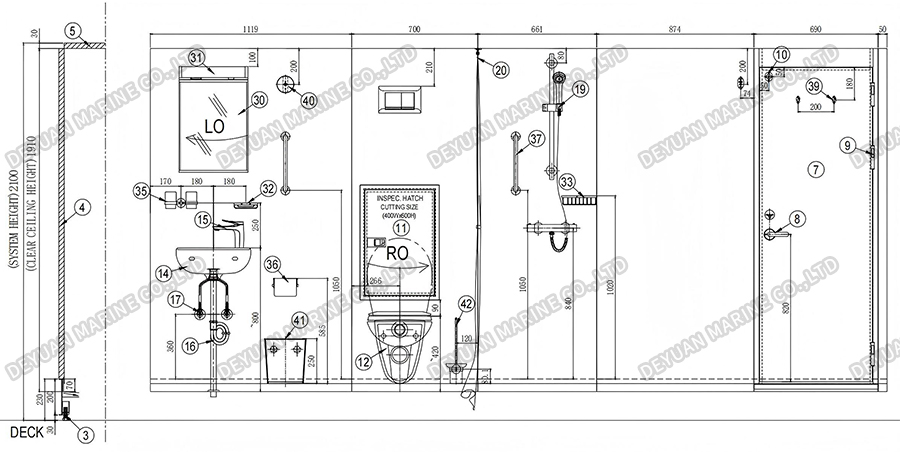

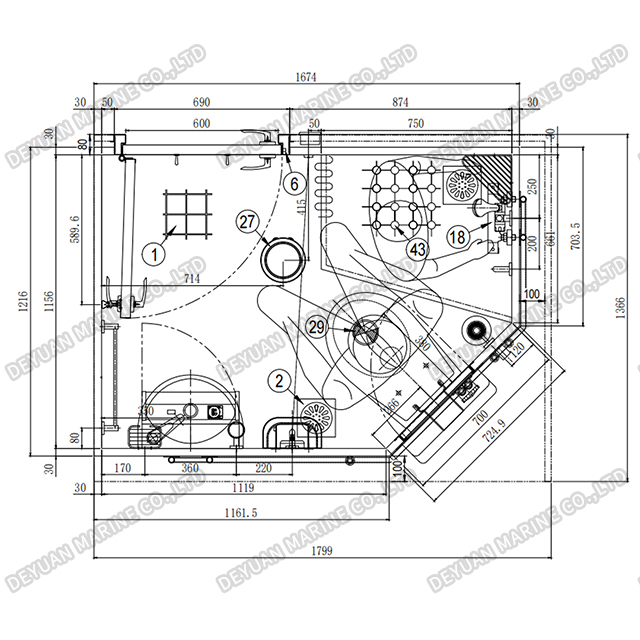

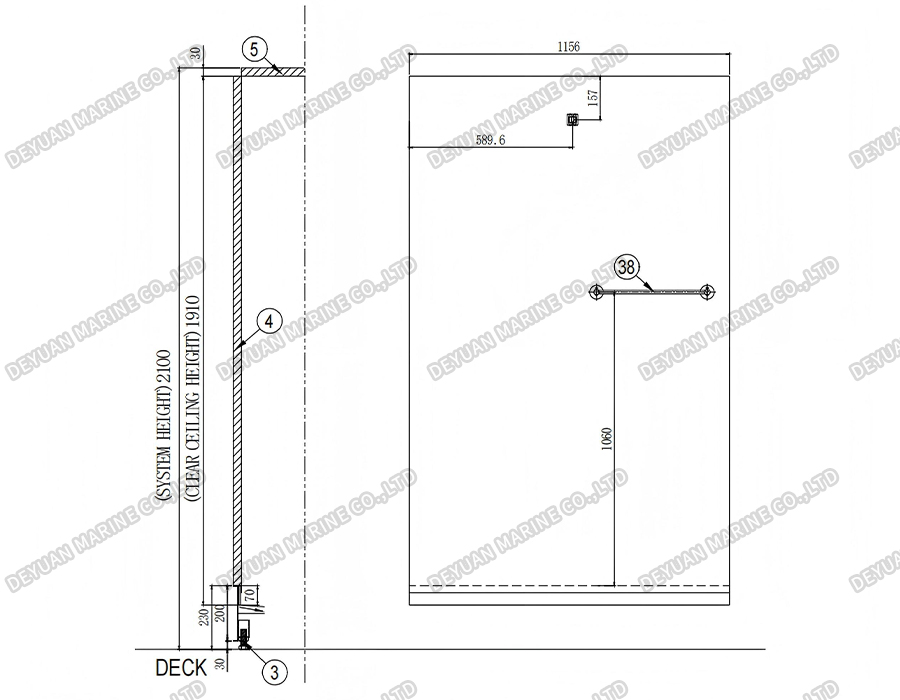

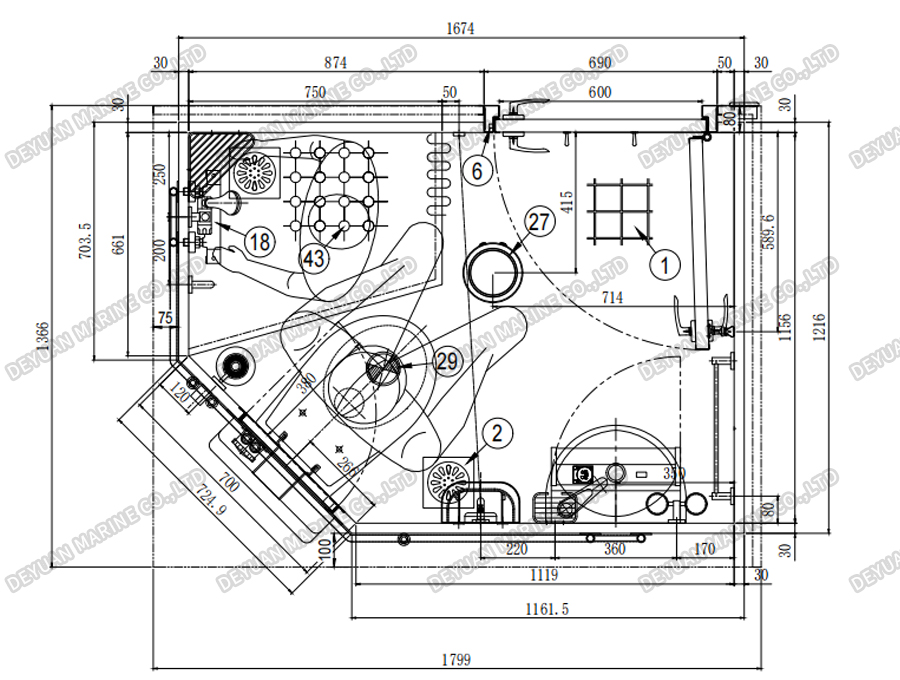

Marine Wet Sanitary Unit T3 Type
Specifications:
| NO | PART | DESCRIPTION | SPECIFICATION | MODEL NO. |
| 1 | FLOOR | FLOOR | 4.0mm STEEL PLATE IS STICKED ON SLIP-PROOF CERAMIC TILES. | DRC STANDARD |
| 2 | SCUPPER | MATERIAL SUS304,150mmx150mm | JIANXIONG | |
| 3 | ADJUSTING BOLT | GALVANIZED,M20*60 | DRC STANDARD | |
| 4 | PANEL | INSIDE WALL PANEL | PVC LAMINATED STEEL PLATE WITH ROCK-WOOL WITH GALV.STEEL PLATE T=30mm | DRC STANDARD |
| 5 | CEILING PANEL | PVC LAMINATED STEEL PLATE WITH ROCK-WOOL WITH GALV.STEEL PLATE T=30mm | DRC STANDARD | |
| 6 | DOOR | DOOR FRAME | BAKED ENAMEL ON 1.5mm STEEL PLATE 5mm | DRC STANDARD |
| 7 | DOOR LEAF | PVC LAMINATED STEEL PLATE WITH ROCK-WOOL WITH PVC LAMINATED STEEL PLATE T=38mm | DRC STANDARD | |
| 8 | DOOR LOCK | SHOW IF THE TOILET HAD BEEN HOLDEN C-4 | KANGB0 C-4 | |
| 9 | DOOR HINGE | STAINLESS STEEL | DRC STANDARD | |
| 10 | DOOR DISTANCE LIMIT | STAINLESS STEEL | KANGB01247 | |
| 11 | I.H | INSPECTION HATCH | PVC LAMINATED STEEL PLATE | DRC STANDARD |
| 12 | W.C | WATER CLOSET | WALL MOUNTED.WHITE VITREOUS (H-1001) | DRC STANDARD |
| 13 | WATER TANK | PLASTIC WHITE,6L | WDY | |
| 14 | W.B | WASH BASIN | VITREOUS CHINA W/FLAP-TYPE DRAIN (HY-3046) | EUROPE |
| 15 | FAUCET | CHROMIUM PLATED BRASS(ONE HANDLE)W/2HOSE | DRC STANDARD | |
| 16 | S-TRAP | SUS304 | DRC STANDARD | |
| 17 | ANGLE VALVE | CHROMIUM PLATED BRASS | DRC STANDARD | |
| 18 | S.H | SHOWER_MIXER WITH,THERMOSTATIC | CHROMIUM PLATED BRASS | DRC STANDARD |
| 19 | SHOWER LIFTER & HEAD &HOSE | ASS. | DRC STANDARD | |
| 20 | SHOWER CURTAIN | ASS.ALUMINUM RAIL,CURTAIN WITH WEIGHT | DRC STANDARD | |
| 21 | PIPE | WATER SUPPLY PIPE | φ20 SUS304 PIPE OUTSIDE COVERED WITH HEAT PRESERVATION | DRC STANDARD |
| 22 | BALL VALVE | 1/2"COPPER BALL VALVE 0.6mpa.WITH JOINT | DRC STANDARD | |
| 23 | DRAIN | GRAY WATER DRAIN PIPES | ø48x3 SUS304 PIPE W/RUBBER ROSE & 2 SUS304 CLAMPS | DRC STANDARD |
| 24 | BLACK WATER DRAIN PIPES | Ø89 RUBBER ROSE & 2 SUS304 CLAMPS | DRC STANDARD | |
| 25 | ELECTRIC | ELECTRIC CABLE | 3*1.5mm²,CJPF96/SC | HONGQI |
| 26 | JUNCTION BOX | NYLON,W/4-GLAND,250V×20A,IP56. | SHIPE JXF4-2 | |
| 27 | CEILING LAMP | LED CWTD-6L-A(9W),AC230V 9W 60HZ IP44 | SHIPE | |
| 28 | LIGHT SWITCH | YARD SUPPLY | YARD | |
| 29 | EXHAUST | EXHAUST VALVE | SUS304,Ø100,W/ALUMINUM FOIL HOSE &2 SUS304 CLAMP | DRC STANDARD |
| 30 | HARDWARE | MIRROR CABINET | BAKED ENAMEL ON STEEL PLATE，CM382,382×590×111 | DRC STANDARD |
| 31 | MIRROR LIGHT | WATERPROOFING LED LAMP,IP44/60HZ/230V/2×4W L=382mm | SHIPE | |
| 32 | SOAP DISH | SUS304 | DRC STANDARD | |
| 33 | SINGLE LAYER TRIANGLE SHELVING | SUS304 | DRC STANDARD | |
| 34 | SINGLE CUP HOLDER | SUS304&GLASS CUP | DRC STANDARD | |
| 35 | DOUBLE CUP HOLDER | SUS304&GLASS CUP | DRC STANDARD | |
| 36 | PAPER HOLDER | CHROME PLATED BRASS /STAINLESS STEEL | DRC STANDARD | |
| 37 | GRAB RAIL | SUS304,L=300mm | DRC STANDARD | |
| 38 | TOWEL BAR | SUS304,L=400mm | DRC STANDARD | |
| 39 | COAT HOOK | SUS304 | DRC STANDARD | |
| 40 | RETRACTABLE CLOTHESLINE | SUS304+ROPE | DRC STANDARD | |
| 41 | RUBBISH BIN | 304 STAINLESS STEEL 230×140×250，XPCP-250-00 | SHIPE | |
| 42 | TOILET BRUSH | ASS. | DRC STANDARD | |
| 43 | MAT | RUBBER | DRC STANDARD |
