Product Description
Marine Wet Sanitary Unit T2 Type
Product Introduction:
Leveraging years of experience and specialized expertise, Deyuan Marine offers fully fitted wet units that are ideally suited for marine accommodations—ranging from cruise ships to offshore installations.
Whether standard or custom-built, Deyuan Marine wet units are manufactured in compliance with the strictest rules and regulations, using only first-class materials.
In our design the emphasis is on using durable solutions to ensure maximum quality, comfort and well-being of our customers, whether being a ship owner, ship yard or end user.
Specifications:
| NO | PART | DESCRIPTION | SPECIFICATION |
| 1 | FLOOR | FLOOR | 4.0mm STEEL PLATE IS STICKED ON SLIP-PROOF CERAMIC TILES. |
| 2 | SCUPPER | MATERIAL SUS304,150mmx150mm | |
| 3 | ADJUSTING BOLT | GALVANIZED,M20*60 | |
| 4 | PANEL | INSIDE WALL PANEL | PVC LAMINATED STEEL PLATE WITH ROCK-WOOL WITH GALV.STEEL PLATE T=30mm |
| 5 | CEILING PANEL | PVC LAMINATED STEEL PLATE WITH ROCK-WOOL WITH GALV.STEEL PLATE T=30mm | |
| 6 | DOOR | DOOR FRAME | BAKED ENAMEL ON 1.5mm STEEL PLATE 5mm |
| 7 | DOOR LEAF | PVC LAMINATED STEEL PLATE WITH ROCK-WOOL WITH PVC LAMINATED STEEL PLATE T=38mm | |
| 8 | DOOR LOCK | SHOW IF THE TOILET HAD BEEN HOLDEN C-4 | |
| 9 | DOOR HINGE | STAINLESS STEEL | |
| 10 | DOOR DISTANCE LIMIT | STAINLESS STEEL | |
| 11 | I.H | INSPECTION HATCH | PVC LAMINATED STEEL PLATE |
| 12 | W.C | WATER CLOSET | WALL MOUNTED.WHITE VITREOUS (H-1001) |
| 13 | WATER TANK | PLASTIC WHITE,6L | |
| 14 | W.B | WASH BASIN | VITREOUS CHINA W/FLAP-TYPE DRAIN (HY-3046) |
| 15 | FAUCET | CHROMIUM PLATED BRASS(ONE HANDLE)W/2HOSE | |
| 16 | S-TRAP | SUS304 | |
| 17 | ANGLE VALVE | CHROMIUM PLATED BRASS | |
| 18 | S.H | SHOWER_MIXER WITH,THERMOSTATIC | CHROMIUM PLATED BRASS |
| 19 | SHOWER LIFTER & HEAD &HOSE | ASS. | |
| 20 | SHOWER CURTAIN | ASS.ALUMINUM RAIL,CURTAIN WITH WEIGHT | |
| 21 | PIPE | WATER SUPPLY PIPE | φ20 SUS304 PIPE OUTSIDE COVERED WITH HEAT PRESERVATION |
| 22 | BALL VALVE | 1/2"COPPER BALL VALVE 0.6mpa.WITH JOINT | |
| 23 | DRAIN | GRAY WATER DRAIN PIPES | ø48x3 SUS304 PIPE W/RUBBER ROSE & 2 SUS304 CLAMPS |
| 24 | BLACK WATER DRAIN PIPES | Ø89 RUBBER ROSE & 2 SUS304 CLAMPS | |
| 25 | ELECTRIC | ELECTRIC CABLE | 3*1.5mm²,CJPF96/SC |
| 26 | JUNCTION BOX | NYLON,W/4-GLAND,250V×20A,IP56. | |
| 27 | CEILING LAMP | LED CWTD-6L-A(9W),AC230V 9W 60HZ IP44 | |
| 28 | LIGHT SWITCH | YARD SUPPLY | |
| 29 | EXHAUST | EXHAUST VALVE | SUS304,Ø100,W/ALUMINUM FOIL HOSE &2 SUS304 CLAMP |
| 30 | HARDWARE | MIRROR CABINET | BAKED ENAMEL ON STEEL PLATE，CM382,382×590×111 |
| 31 | MIRROR LIGHT | WATERPROOFING LED LAMP,IP44/60HZ/230V/2×4W L=382mm | |
| 32 | SOAP DISH | SUS304 | |
| 33 | SINGLE LAYER TRIANGLE SHELVING | SUS304 | |
| 34 | SINGLE CUP HOLDER | SUS304&GLASS CUP | |
| 35 | DOUBLE CUP HOLDER | SUS304&GLASS CUP | |
| 36 | PAPER HOLDER | CHROME PLATED BRASS /STAINLESS STEEL | |
| 37 | GRAB RAIL | SUS304,L=300mm | |
| 38 | TOWEL BAR | SUS304,L=400mm | |
| 39 | COAT HOOK | SUS304 | |
| 40 | RETRACTABLE CLOTHESLINE | SUS304+ROPE | |
| 41 | RUBBISH BIN | 304 STAINLESS STEEL 230×140×250，XPCP-250-00 | |
| 42 | TOILET BRUSH | ASS. | |
| 43 | MAT | RUBBER |

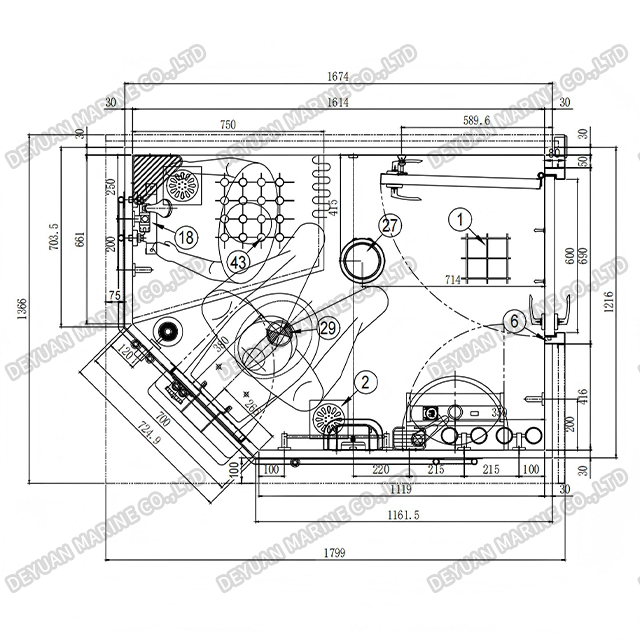

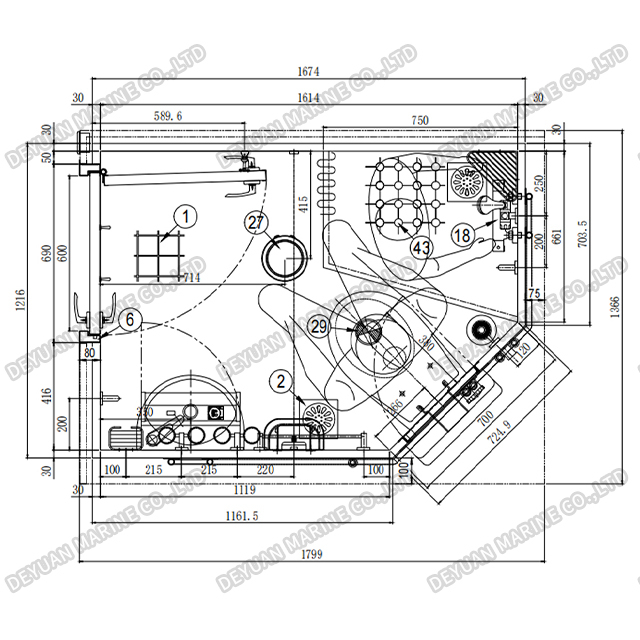

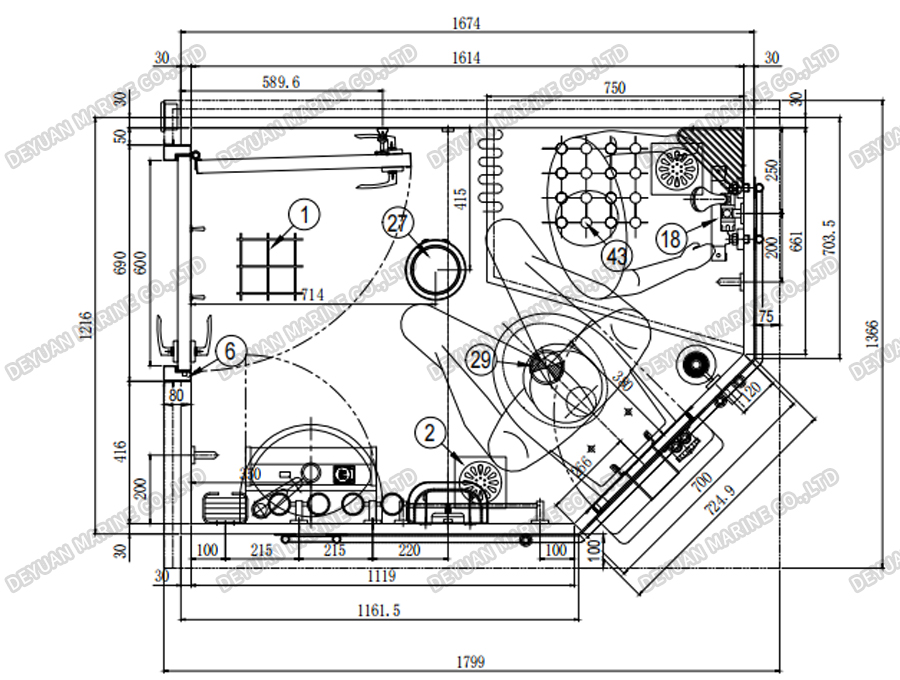

Detail Plan of Wet Unit:

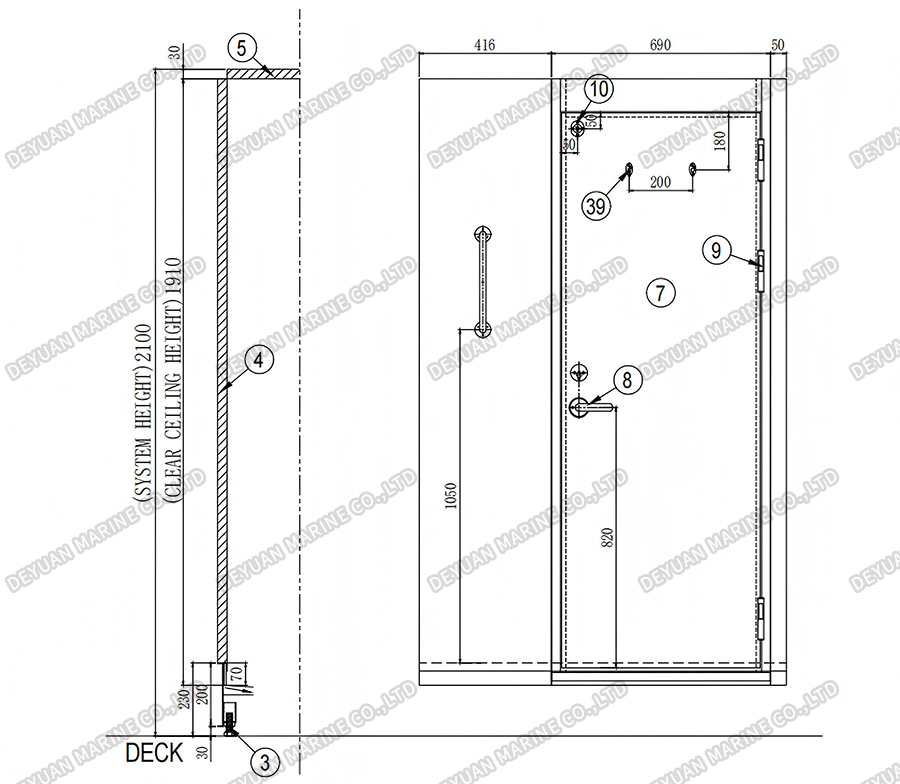

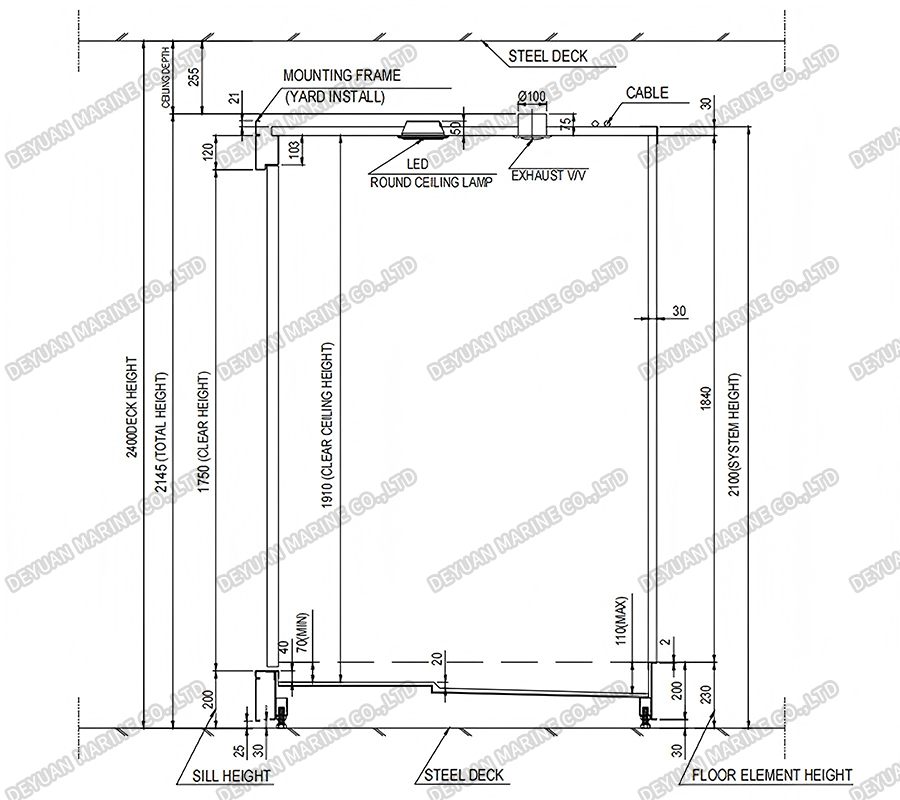

Basic Measurement of Height:

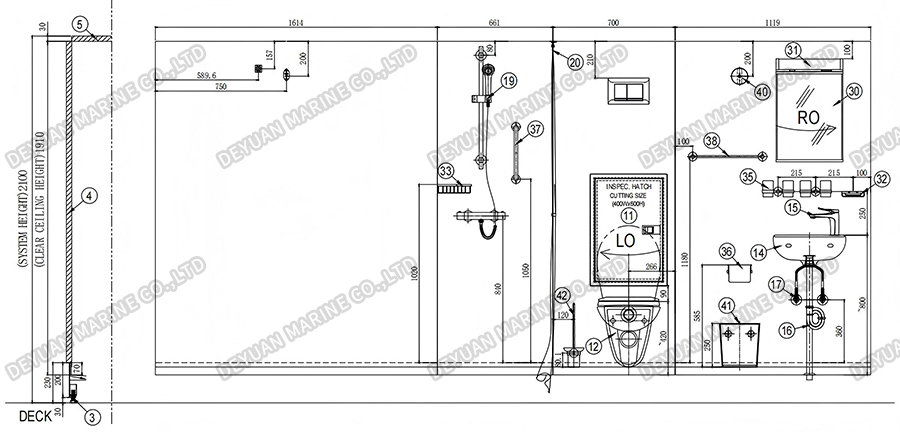

View From The Inside of Wet Unit:

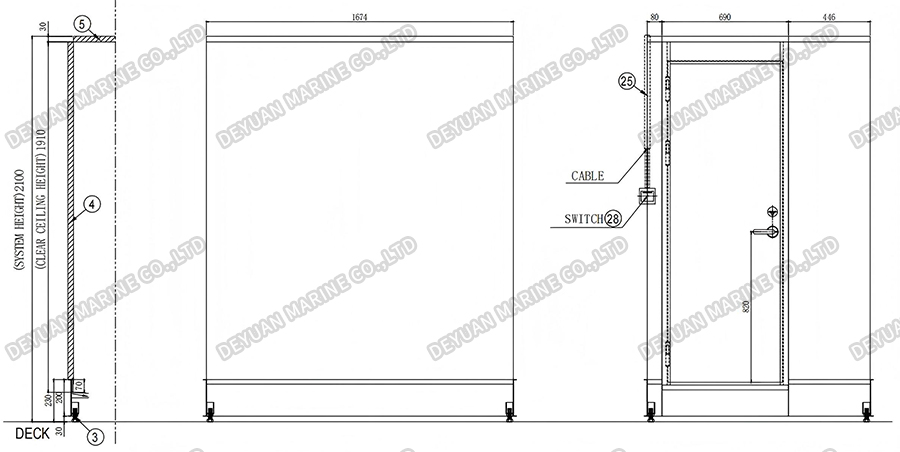

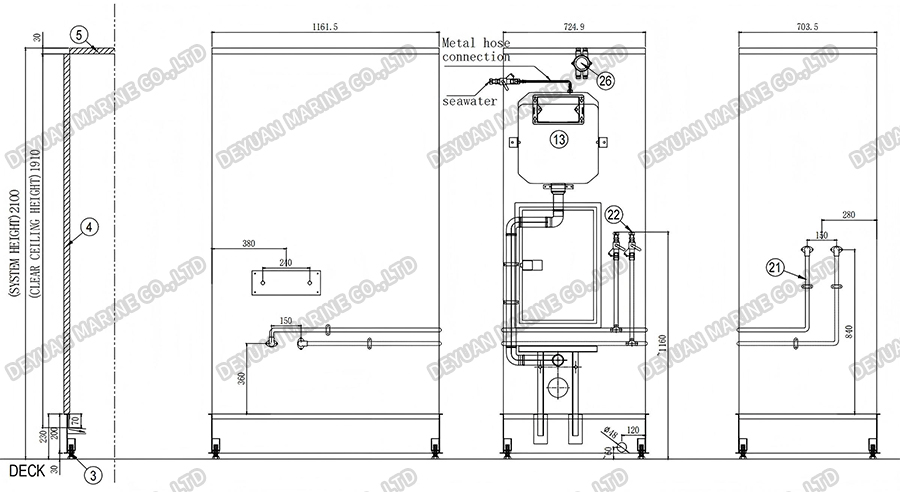

View From The Outside of Wet Unit:

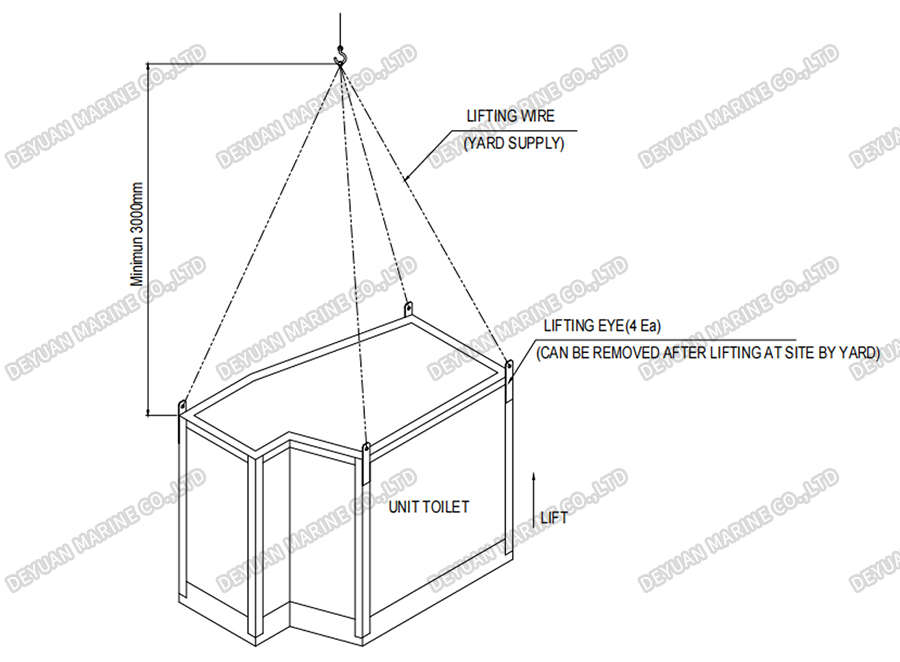

Wet Unit Lifting Method:
