Product Description

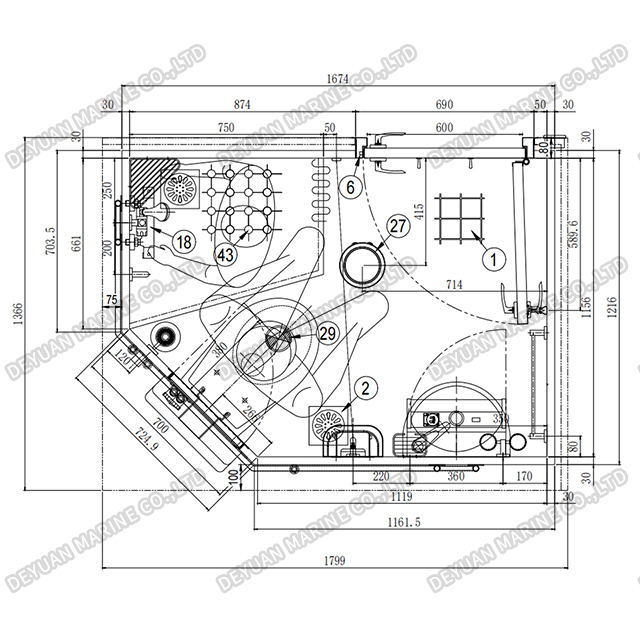

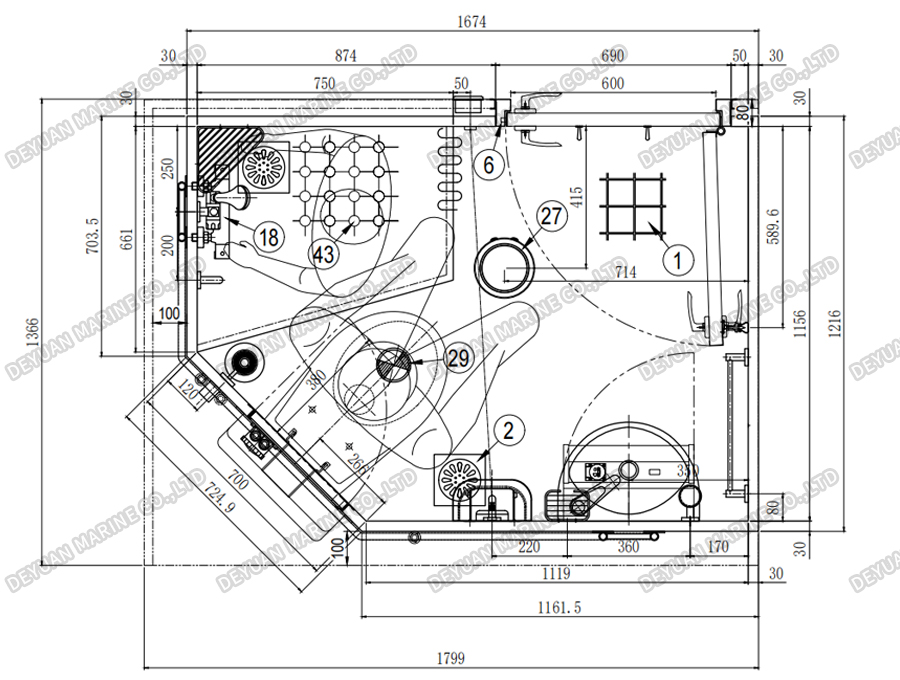

Marine Wet Sanitary Unit T5 Type
Specifications:
| NO | PART | DESCRIPTION | SPECIFICATION |
| 1 | FLOOR | FLOOR | 4.0mm STEEL PLATE IS STICKED ON SLIP-PROOF CERAMIC TILES. |
| 2 | SCUPPER | MATERIAL SUS304,150mmx150mm | |
| 3 | ADJUSTING BOLT | GALVANIZED,M20*60 | |
| 4 | PANEL | INSIDE WALL PANEL | PVC LAMINATED STEEL PLATE WITH ROCK-WOOL WITH GALV.STEEL PLATE T=30mm |
| 5 | CEILING PANEL | PVC LAMINATED STEEL PLATE WITH ROCK-WOOL WITH GALV.STEEL PLATE T=30mm | |
| 6 | DOOR | DOOR FRAME | BAKED ENAMEL ON 1.5mm STEEL PLATE 5mm |
| 7 | DOOR LEAF | PVC LAMINATED STEEL PLATE WITH ROCK-WOOL WITH PVC LAMINATED STEEL PLATE T=38mm | |
| 8 | DOOR LOCK | SHOW IF THE TOILET HAD BEEN HOLDEN C-4 | |
| 9 | DOOR HINGE | STAINLESS STEEL | |
| 10 | DOOR DISTANCE LIMIT | STAINLESS STEEL | |
| 11 | I.H | INSPECTION HATCH | PVC LAMINATED STEEL PLATE |
| 12 | W.C | WATER CLOSET | WALL MOUNTED.WHITE VITREOUS (H-1001) |
| 13 | WATER TANK | PLASTIC WHITE,6L | |
| 14 | W.B | WASH BASIN | VITREOUS CHINA W/FLAP-TYPE DRAIN (HY-3046) |
| 15 | FAUCET | CHROMIUM PLATED BRASS(ONE HANDLE)W/2HOSE | |
| 16 | S-TRAP | SUS304 | |
| 17 | ANGLE VALVE | CHROMIUM PLATED BRASS | |
| 18 | S.H | SHOWER_MIXER WITH,THERMOSTATIC | CHROMIUM PLATED BRASS |
| 19 | SHOWER LIFTER & HEAD &HOSE | ASS. | |
| 20 | SHOWER CURTAIN | ASS.ALUMINUM RAIL,CURTAIN WITH WEIGHT | |
| 21 | PIPE | WATER SUPPLY PIPE | φ20 SUS304 PIPE OUTSIDE COVERED WITH HEAT PRESERVATION |
| 22 | BALL VALVE | 1/2"COPPER BALL VALVE 0.6mpa.WITH JOINT | |
| 23 | DRAIN | GRAY WATER DRAIN PIPES | ø48x3 SUS304 PIPE W/RUBBER ROSE & 2 SUS304 CLAMPS |
| 24 | BLACK WATER DRAIN PIPES | Ø89 RUBBER ROSE & 2 SUS304 CLAMPS | |
| 25 | ELECTRIC | ELECTRIC CABLE | 3*1.5mm²,CJPF96/SC |
| 26 | JUNCTION BOX | NYLON,W/4-GLAND,250V×20A,IP56. | |
| 27 | CEILING LAMP | LED CWTD-6L-A(9W),AC230V 9W 60HZ IP44 | |
| 28 | LIGHT SWITCH | YARD SUPPLY | |
| 29 | EXHAUST | EXHAUST VALVE | SUS304,Ø100,W/ALUMINUM FOIL HOSE &2 SUS304 CLAMP |
| 30 | HARDWARE | MIRROR CABINET | BAKED ENAMEL ON STEEL PLATE，CM382,382×590×111 |
| 31 | MIRROR LIGHT | WATERPROOFING LED LAMP,IP44/60HZ/230V/2×4W L=382mm | |
| 32 | SOAP DISH | SUS304 | |
| 33 | SINGLE LAYER TRIANGLE SHELVING | SUS304 | |
| 34 | SINGLE CUP HOLDER | SUS304&GLASS CUP | |
| 35 | PAPER HOLDER | CHROME PLATED BRASS /STAINLESS STEEL | |
| 36 | GRAB RAIL | SUS304,L=300mm | |
| 37 | TOWEL BAR | SUS304,L=400mm | |
| 38 | COAT HOOK | SUS304 | |
| 39 | RETRACTABLE CLOTHESLINE | SUS304+ROPE | |
| 40 | RUBBISH BIN | 304 STAINLESS STEEL 230×140×250，XPCP-250-00 | |
| 41 | TOILET BRUSH | ASS. | |
| 42 | MAT | RUBBER |

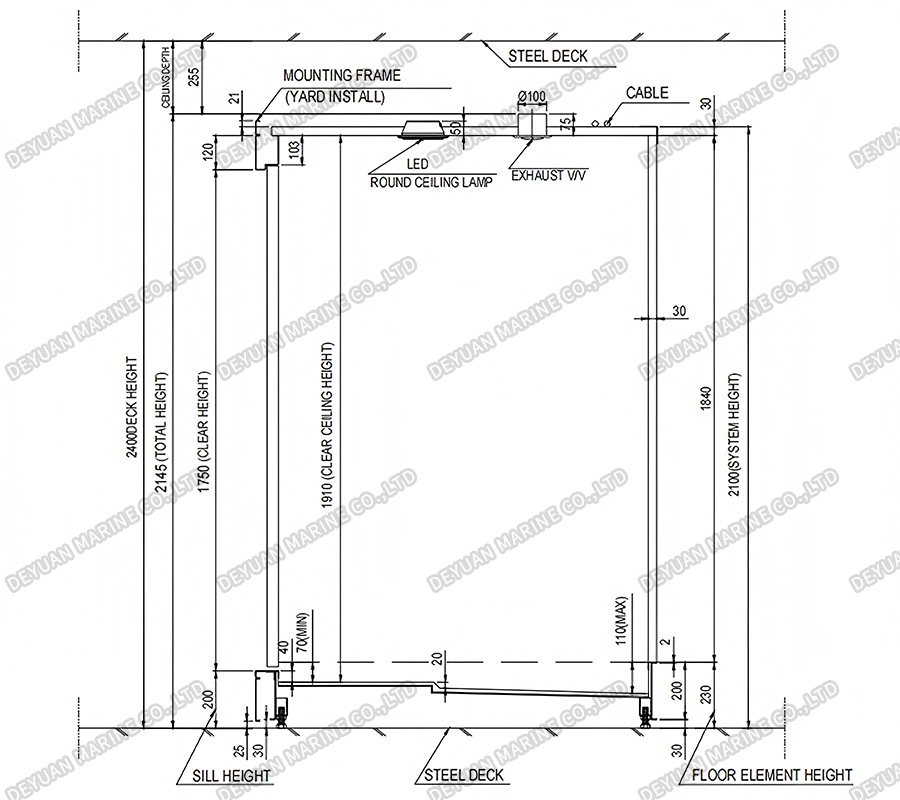

Basic Measurement of Height:

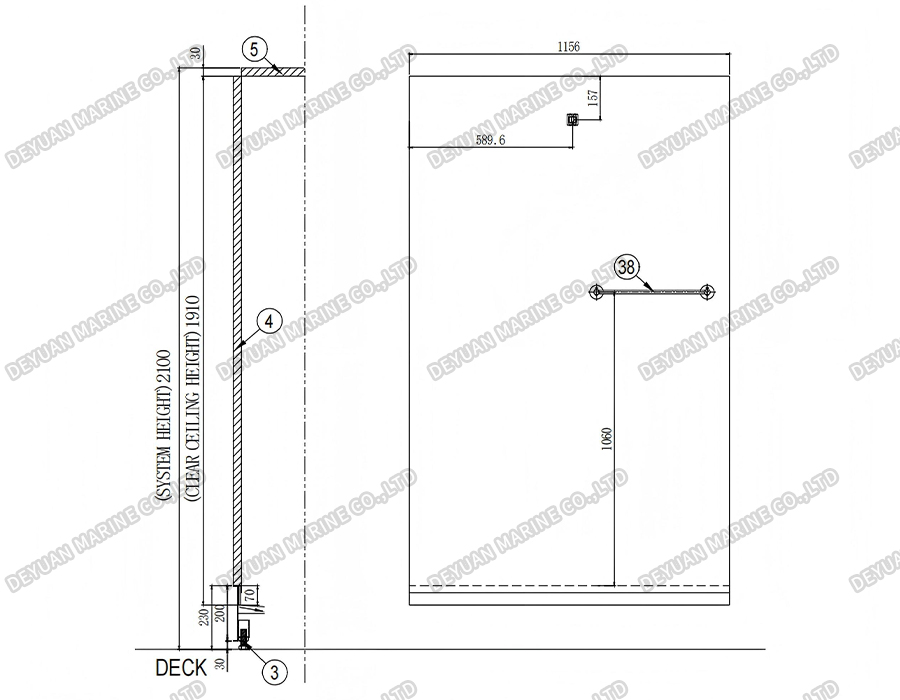

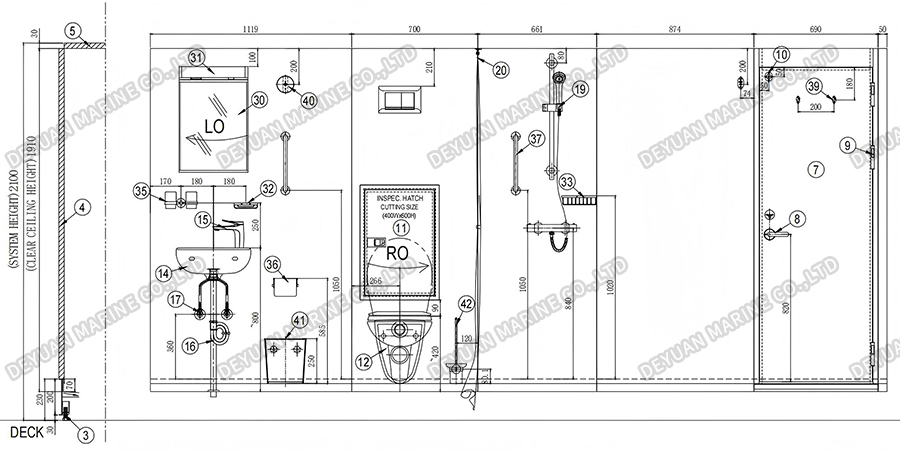

View From The Inside of Wet Unit:

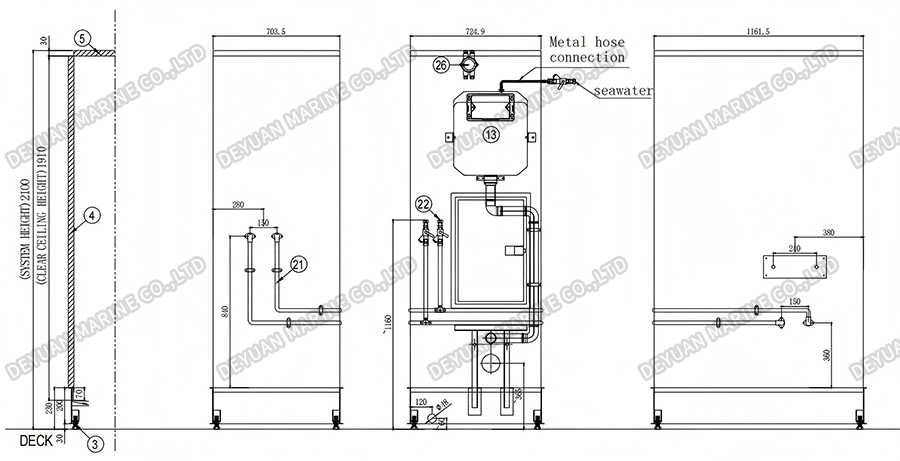

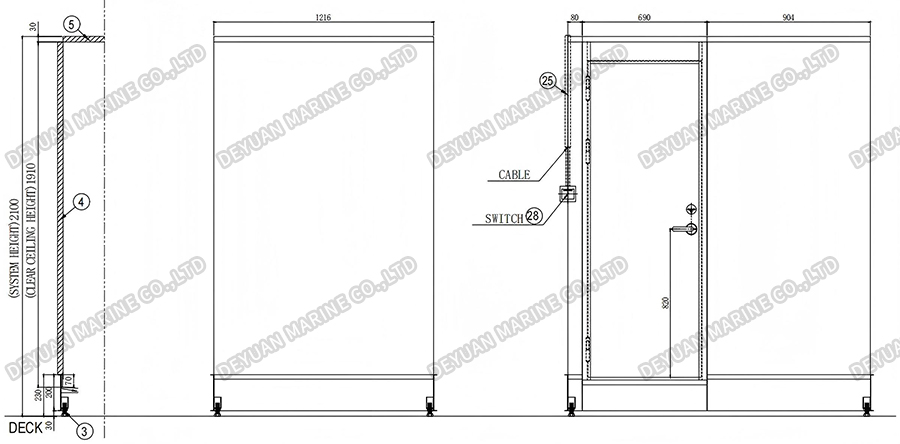

View From The Outside of Wet Unit:

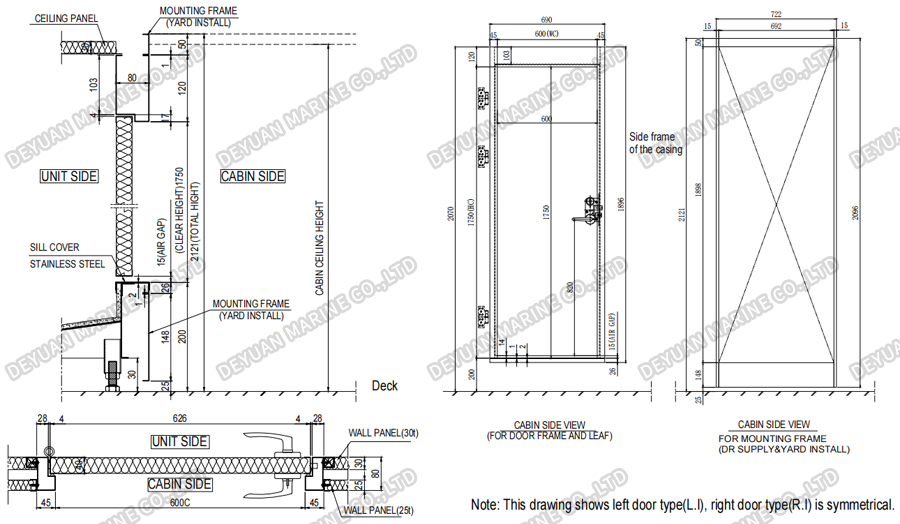

Door & Door Lock Detail:
