SOLAS Pilot Ladders With Aluminium Steps

Origin: Made in China
Length: As per customer required
Short board: 525*115*35mm
Long board: 1800*115*35mm
Certificate: CCS
Material: aluminium alloy
Delivery time: 1week
Packing: export package
Brand: Deyuan Marine
Availability:

Product Description

SOLAS Pilot  Ladders With Aluminium Steps

Pilot ladder product description

SOLAS Pilot Ladders Introduction

An embarkation ladder, often also referred to as a pilot ladder, is a special type of rope ladder used most commonly on cargo vessels. Cargo vessels require embarkation ladders so that expert ship handlers, known as pilots, can move between their small, high-speed pilot ship and the cargo vessel.

 SOLAS pilot ladder construction

Bottom 4 rubber steps:  made of resilient synthetic raw material or rubber.

Aluminium Steps: the width of step is no less than 115mm, and thickness no less than 35mm

Ropes:  should be mold-resistant manila or heat-treated polyester rope with polypropylene core and should not be covered. Ropes shall be of a diameter which is no less than 57mm in circumference, and have a braking strength more than 24KN.

Spreader : shall have the same specifications as normal steps, but length of spreader shall not be less than 1.8 meters.

Fastening Hardware: for rope and steps must be corrosion resistant, or made of similar material treated corrosion resistance.

Pilot ladder technical parameters

SOLAS pilot ladder Parameter

Number of Steps Q'ty of Spreader step Position of Spreader steps L L1 Theoretical Weight (kg)
6 1 5th 1980 1650 16.8
7 2310 1980 18.6
8 2640 2310 20.4
9 2970 2640 22.2
10 3300 2970 24
11 3630 3300 25.8
12 3960 3630 27.6
13 4290 3960 29.4
14 2 5th、 12th 4620 4290 33.2
15 5th、 13th 4950 4620 35.3
16 5th、14 th 5280 4950 36.8
17 5610 5280 38.6
18 5910 5610 40.4
19 6270 5940 42.2
20 6600 6270 44
21 6930 6600 15.8
22 7260 6930 47.6
23 3 5th、14 th、21st 7590 7260 51.4
24 5th、14 th、22nd 7920 759U 53.2
25 5th、14 th、23rd 8250 7920 55.3
26 8580 8250 56.8
27 8910 8580 58.6
28 9240 8910 60.4
29 9570 9240 62.2
30 9900 9570 64.0
31 10230 9900 65.8
32 4 5th、14th、23rd、30th 10560 10230 69.6
33 5th、14th、23rd、31st 10890 10560 71.4
34 5th、14th、23rd、32nd 11220 10890 73.2
35 11550 11220 75.1
36 11880 11550 76.8

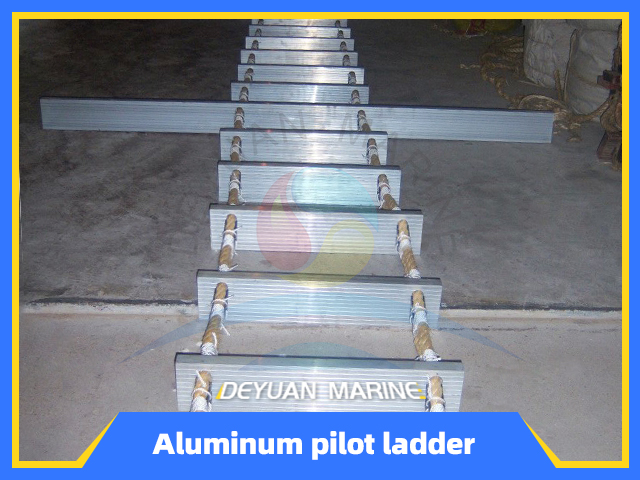

SOLAS Pilot ladders-DEYUAN MARINE

aluminium pilot ladders
