Hard Wood Pilot's Rope Ladder for Embarkation

Origin: Made in China
Length: As per request
Short board: 525*115*28
Long board: 1800*115*28
Material: Willow, etc
Delivery time: 1week
Packing: export package
Brand: Deyuan Marine
Availability:

Product Description

Hard Wood Pilot's Rope Ladder for Embarkation

Pilot ladder product description

Hard Wood Pilot's Rope Ladder

Because the decks of most commercial ships are far above the waterline, a pilot rope ladder was  designed for pilot

to embark and disembark safely.In case of high freeboard (more than 9m), the pilot ladder shall be combined with an accommodation ladder, When not being used, the pilot ladder is stowed away (usually rolled up) rather than left hanging.

DEYUAN MARINE offered two types of pilot ladders for option,one  is hard wood pilot rope ladders, the other one is aluminium pilot ladders. The design and construction of the two pilot ladders are tightly specified by international regulation under the SOLAS regime.

Features and Benefits

* Manufacture according to the standard of ISO799、GB3142

* Complies with IMO Res. Al045(27), MSC / Circ.1428ISO 799 (2004), SOLAS 74

* With MED & CCS approved certificate

* Steps of each ladder made of finest hardwood except for the last 4 rubber steps

* Each steps of the ladder would be supported by side ropes

* Mildew-resistant 20mm dia. manila side rope with breaking strength of at least 24kn

* Fitted with corrosion-resistant metal fastener

* Wooden Steps 500mm x 115mm x 28mm.

* Aluminium steps 500mm x 115mm x 35mm.

* Rubber Steps 500mm x 115mm x 28mm

* Typically used on board cargo vessels for the purpose of embarking and disembarking pilots

Pilot ladder technical parameters

Hard Wood Pilot's Rope Ladder

Number of Steps Q'ty of Spreader step Position of Spreader steps L L1 Theoretical Weight (kg)
6 1 5th 1980 1650 16.8
7 2310 1980 18.6
8 2640 2310 20.4
9 2970 2640 22.2
10 3300 2970 24
11 3630 3300 25.8
12 3960 3630 27.6
13 4290 3960 29.4
14 2 5th、 12th 4620 4290 33.2
15 5th、 13th 4950 4620 35.3
16 5th、14 th 5280 4950 36.8
17 5610 5280 38.6
18 5910 5610 40.4
19 6270 5940 42.2
20 6600 6270 44
21 6930 6600 15.8
22 7260 6930 47.6
23 3 5th、14 th、21st 7590 7260 51.4
24 5th、14 th、22nd 7920 759U 53.2
25 5th、14 th、23rd 8250 7920 55.3
26 8580 8250 56.8
27 8910 8580 58.6
28 9240 8910 60.4
29 9570 9240 62.2
30 9900 9570 64.0
31 10230 9900 65.8
32 4 5th、14th、23rd、30th 10560 10230 69.6
33 5th、14th、23rd、31st 10890 10560 71.4
34 5th、14th、23rd、32nd 11220 10890 73.2
35 11550 11220 75.1
36 11880 11550 76.8

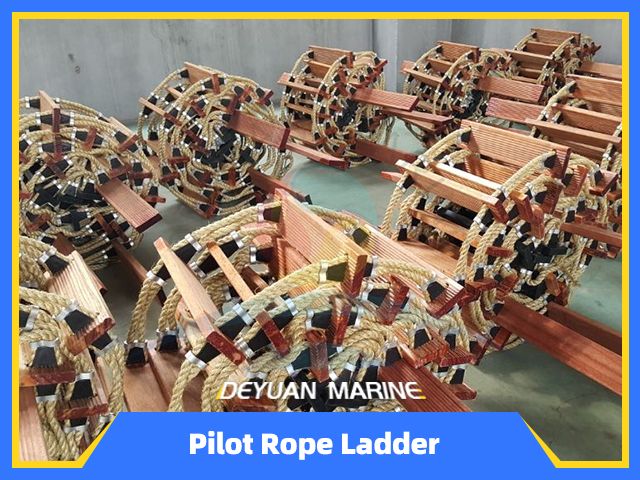

Hard wood Pilot Ladders-DEYUAN MARINE (2)

hard wood pilot rope ladder-DEYUAN MARINE
