Product Description

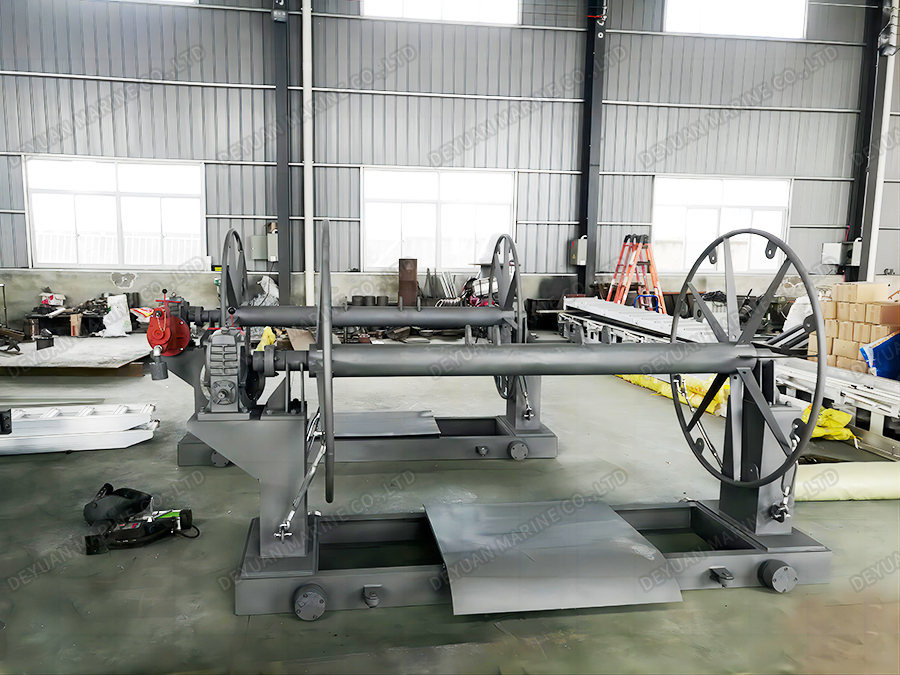

Pneumatic Drive Movable Type Pilot Ladder Reel
A Pneumatic Drive Movable Mounting Type Pilot Ladder Reel is suitable for movable on deck which belongs to Explosion-proof area, since it is driven by compressed air, no spark and heat releasing into the surroundings.
We produce the air drive movable pilot ladder reels as per CB/T 3727-2013.
CB/T 3727-2013 QM1 and QM2 Pneumatic Drive Movable Type Pilot Ladder Reel
| Reel Model | Speed m/min | Trans. Speed m/min | Max.Capa. (Ladder Leng.) m | Air press. MPa | Air Consumpt. m3/min | Rated Rotate r/min | Gear Ratio | Rated Power KW | Drum Load KN | Hold Load KN | Weight kg |
| QF | 15~21 | — | 10 | 0.6 | 2.5 | 30 | 1:30 | 1.8 | 1.5 | 3 | 470 |
| QM1 | 2.6 | 12 | 760 | ||||||||
| QM2 | — | 670 |
There are two moving ways options: Hand moving or air motor drive moving:

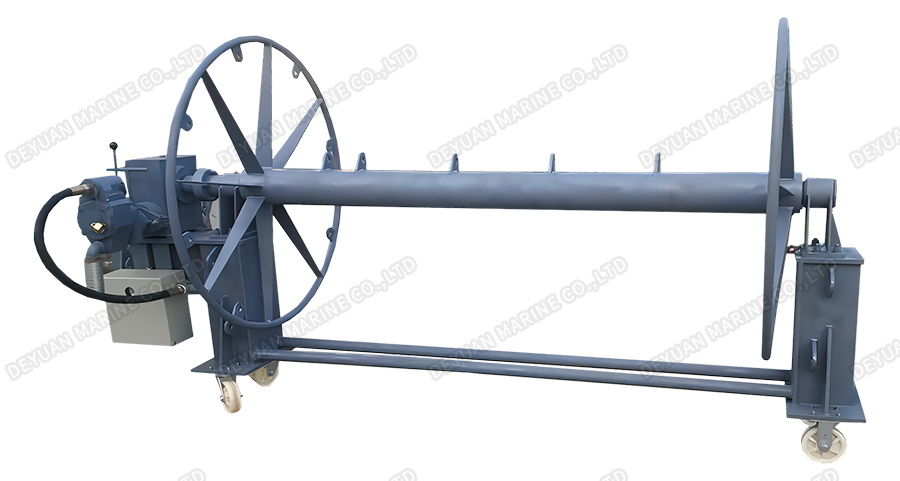

Moved by Hand Type

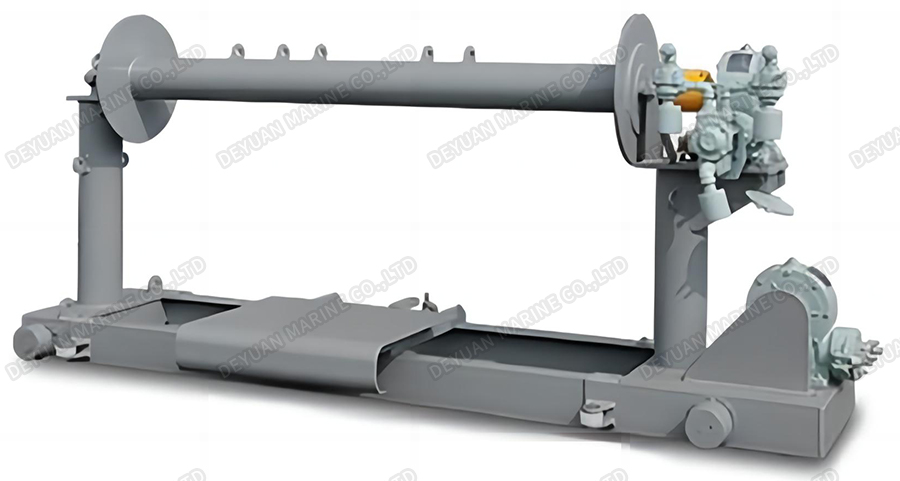

Moved by air motor type
