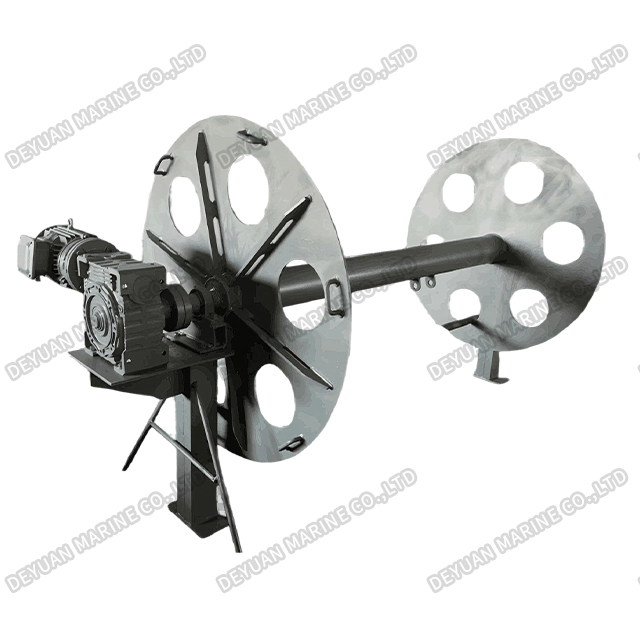

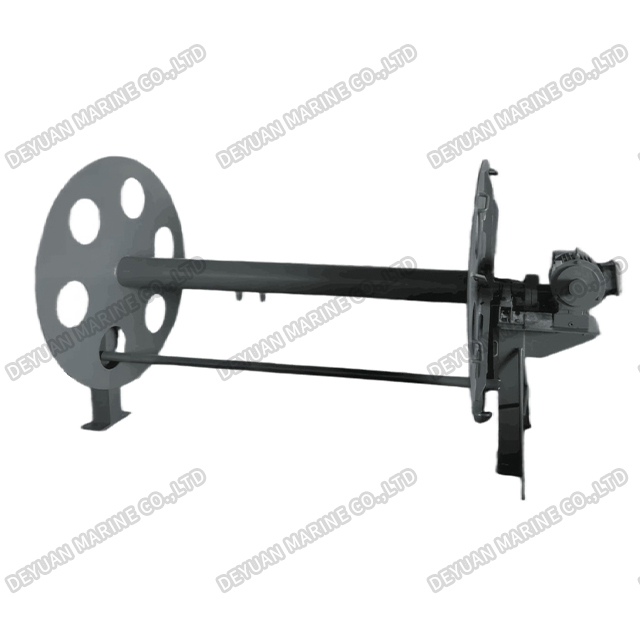

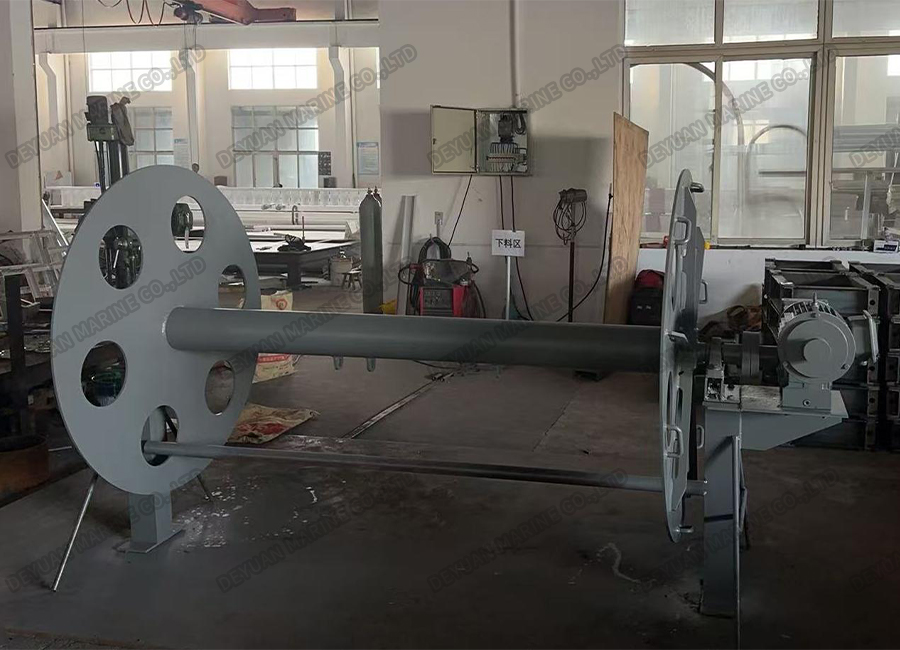

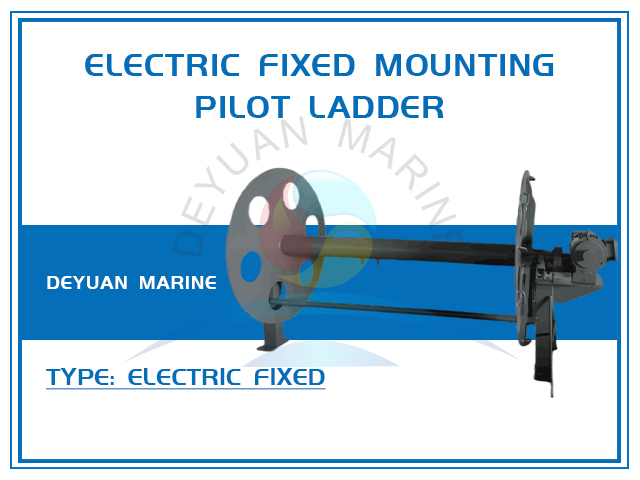

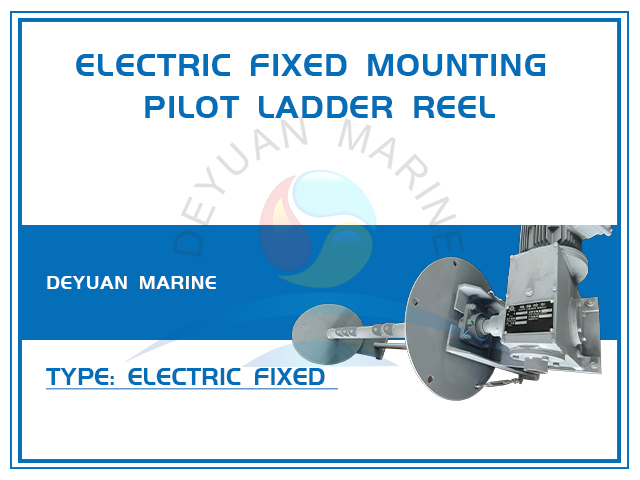

Electric Motor Drive Fixed Mounting Type Pilot Ladder Reel
An Electric Fixed Mounting Type Pilot Ladder Reel is suitable fixed mounting on deck and drive by electric motor.
We produce privious version of Electric Pilot Ladder Reel as per CB/T 3727-1995 and also the current version as per CB/T 3727-2013.

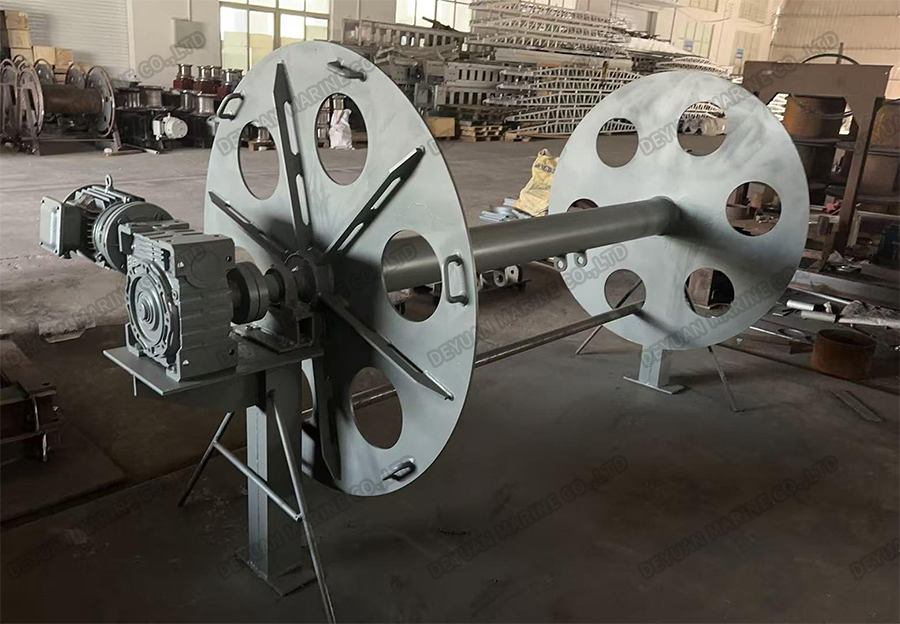

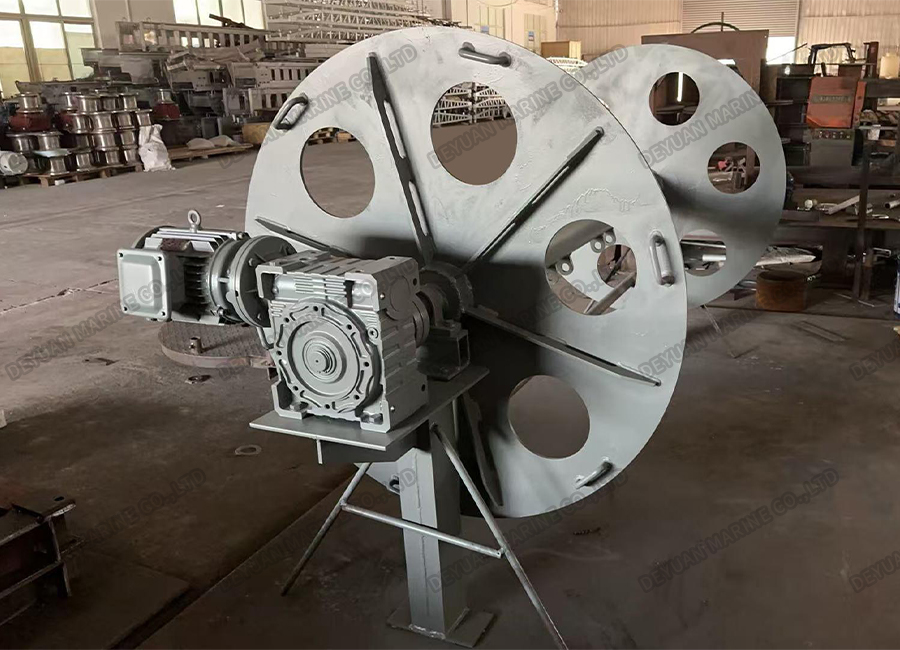

In CB/T 3727-1995, the Electric Drive Fixed Mounting Type Pilot Ladder Reel is type B, and in CB/T 3727-2013 is DF-L and DF-R, besides the fixed electric types we also offer movable types and pneumatic drive types.
CB/T 3727-1995 Electric Drive Fixed Mounting Type Pilot Ladder Reel Type B
| Reel Model | Nominal Speed m/min | Nominal Capacity (Ladder Length) m | Motor Type and Parameters | Weight kg | |||||
| A | 24 | 30 | JFH 1/24 Air Motor | 492 | |||||
| Air pressure MPa | Air Consumption m3/min | Rated Rotation r/min | Rated Power KW | Max. Pull KN | |||||
| 0.6 | 4.5~5.0 | 890 | 3.98 | 10 | |||||
| B | 26 | 30 | JZ2-12H-4T2 | Gear Ratio | Max. Pull KN | 575 | |||
| Rated Rotation r/min | Rated Power KW | Rated Current A | Voltage/Frequency V/Hz | 1:77 | 10 | ||||
| 1350 | 2.2 | 6 | 380/50 | ||||||
CB/T 3727-2013 DF Electric Fixed Type Pilot Ladder Reel Type DF
| Reel Model | Speed m/min | Max.Capa. (Ladder Leng.) m | Rated Current A | Volt./Freq. V/Hz | Rated Rotate r/min | Gear Ratio | Rated Power KW | Drum Load KN | Hold Load KN | Weight kg |
| DF | 15~21 | 10 | 4.6 | 380/50Hz /customized | 890 | 1:90 | 1.5 | 1.5 | 3 | 550 |
| DM | 12 | 695 |
