Product Description

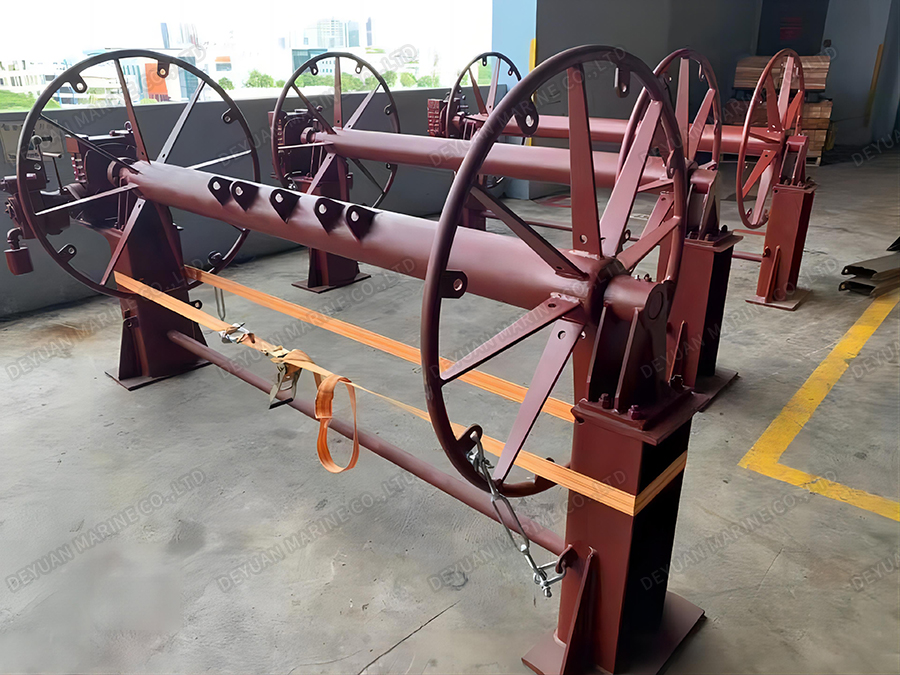

Pneumatic Drive Fixed Mounting Type Pilot Ladder Reel
A Pneumatic Drive Fixed Mounting Type Pilot Ladder Reel is suitable fixed mounting on deck which belongs to Explosion-proof area, since it is driven by compressed air, no spark and heat releasing into the surroundings.
We produce privious version of Pilot Ladder Reel as per CB/T 3727-1995 and also the current version as per CB/T 3727-2013.

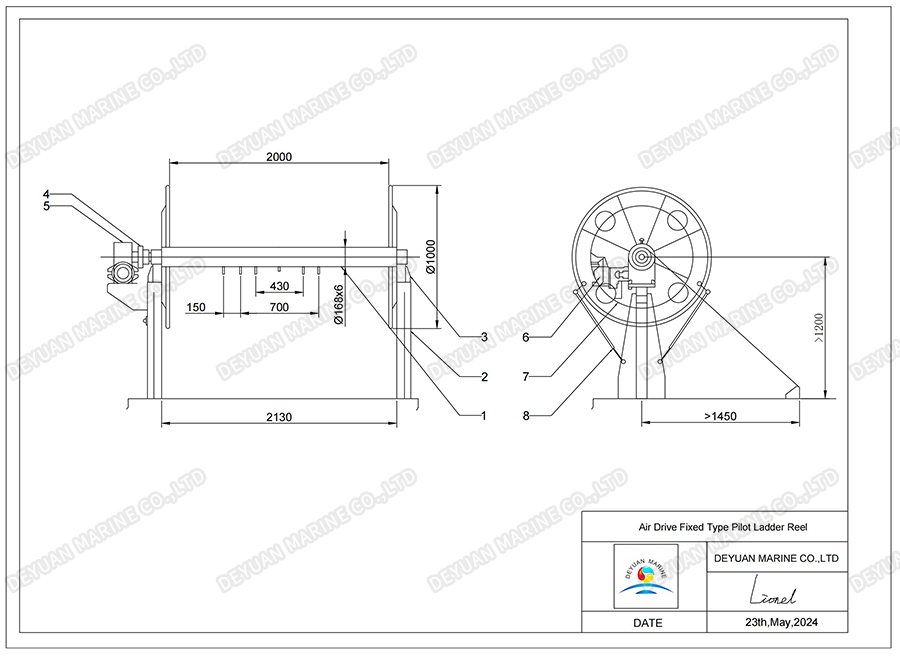

1. Roll shaft
2. Bracket
3. Shaft seat
4. Self-locking reducer
5. Shaft coupling
6. Air motor
7. Handle lever
8. Rolling stopper
In CB/T 3727-1995, the Pneumatic Drive Fixed Mounting Type Pilot Ladder Reel is type A, and in CB/T 3727-2013 is QF-L and QF-R, besides the fixed pneumatic types we also offer movable types and motor drive types.
CB/T 3727-1995 Type A Pneumatic Drive Fixed Mounting Type Pilot Ladder Reel
| Reel Model | Nominal Speed m/min | Nominal Capacity (Ladder Length) m | Motor Type and Parameters | Weight kg | |||||
| A | 24 | 30 | JFH 1/24 Air Motor | 492 | |||||
| Air pressure MPa | Air Consumption m3/min | Rated Rotation r/min | Rated Power KW | Max. Pull KN | |||||
| 0.6 | 4.5~5.0 | 890 | 3.98 | 10 | |||||
| B | 26 | 30 | JZ2-12H-4T2 | Gear Ratio | Max. Pull KN | 575 | |||
| Rated Rotation r/min | Rated Power KW | Rated Current A | Voltage/Frequency V/Hz | 1:77 | 10 | ||||
| 1350 | 2.2 | 6 | 380/50 | ||||||
CB/T 3727-2013 QF-L and QF-R Pneumatic Drive Fixed Mounting Type Pilot Ladder Reel
| Reel Model | Speed m/min | Trans. Speed m/min | Max.Capa. (Ladder Leng.) m | Air press. MPa | Air Consumpt. m3/min | Rated Rotate r/min | Gear Ratio | Rated Power KW | Drum Load KN | Hold Load KN | Weight kg |
| QF | 15~21 | — | 10 | 0.6 | 2.5 | 30 | 1:30 | 1.8 | 1.5 | 3 | 470 |
| QM1 | 2.6 | 12 | 760 | ||||||||
| QM2 | — | 670 |
