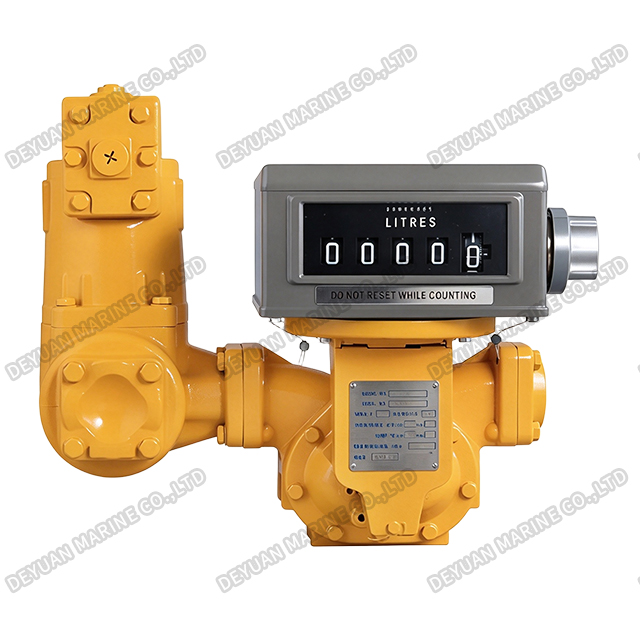

PD Flowmeters for Offshore Floating Fuel Station

PD Flowmeters for Offshore Floating Fuel Station

Product Introduction:

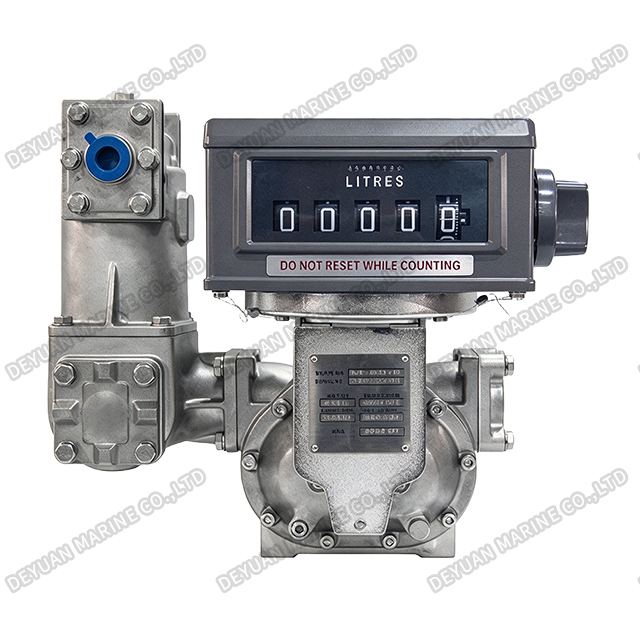

In the harsh and demanding offshore environment, precise fuel measurement and safe transfer are critical. has specifically designed the M-Series Positive Displacement (PD) Flowmeters for offshore floating fuel stations, including FPSOs, floating bunkering vessels, and offshore platforms. Combining excellent accuracy with low-pressure drop, these flowmeters are ideally suited for diesel and kerosene, serving as the core equipment for marine fuel delivery systems.

Core Features:

1.High Accuracy & Low Pressure Drop: The internal measuring chamber features a no-metal-to-metal contact design, delivering high accuracy of ±0.2% and repeatability of ±0.05%. This minimizes wear and ensures long-term metering accuracy in offshore operations, significantly reducing recalibration frequency.

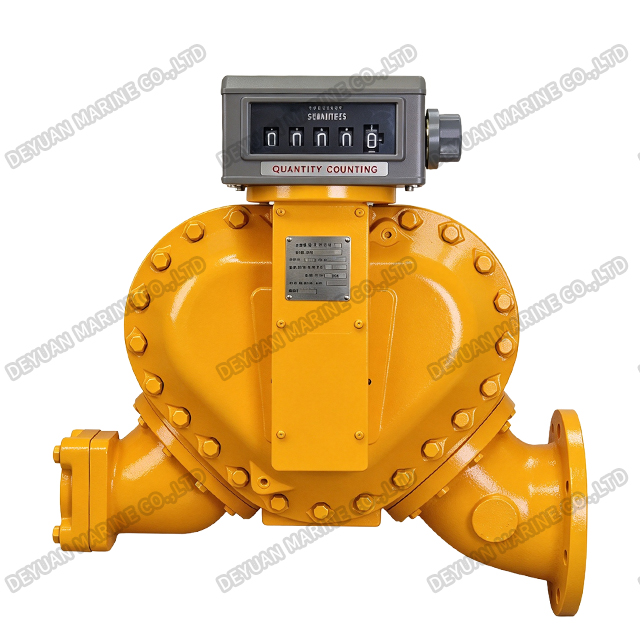

2.Wide Range of Sizes & Flow Rates: Available from the M-40 (1.5") up to the M-150 (6"), with flow rates ranging from 25 L/min to 3000 L/min. Whether it is routine supply for small vessels or high-volume bunkering for large floating facilities, there is a perfect model to meet the demand.

3.Rugged & Durable Construction: Built with high-quality Aluminum Alloy or Stainless Steel bodies, featuring a maximum working pressure of 10.5 Bar. The robust construction is designed to withstand the high-salinity and high-humidity offshore environments.

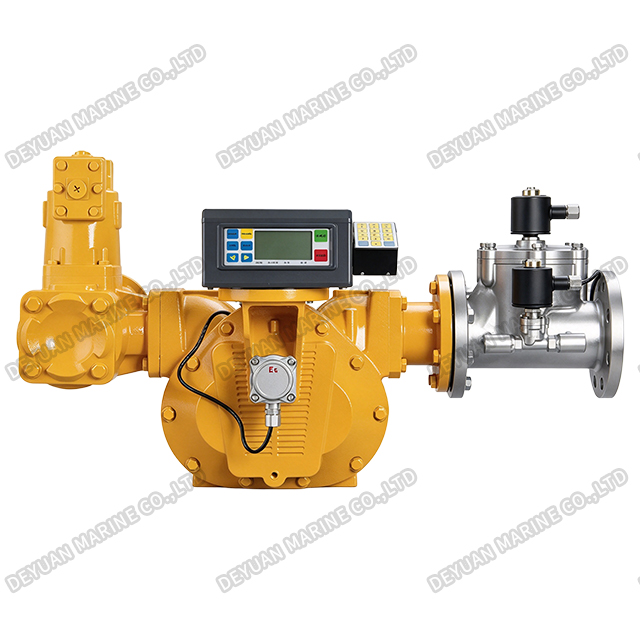

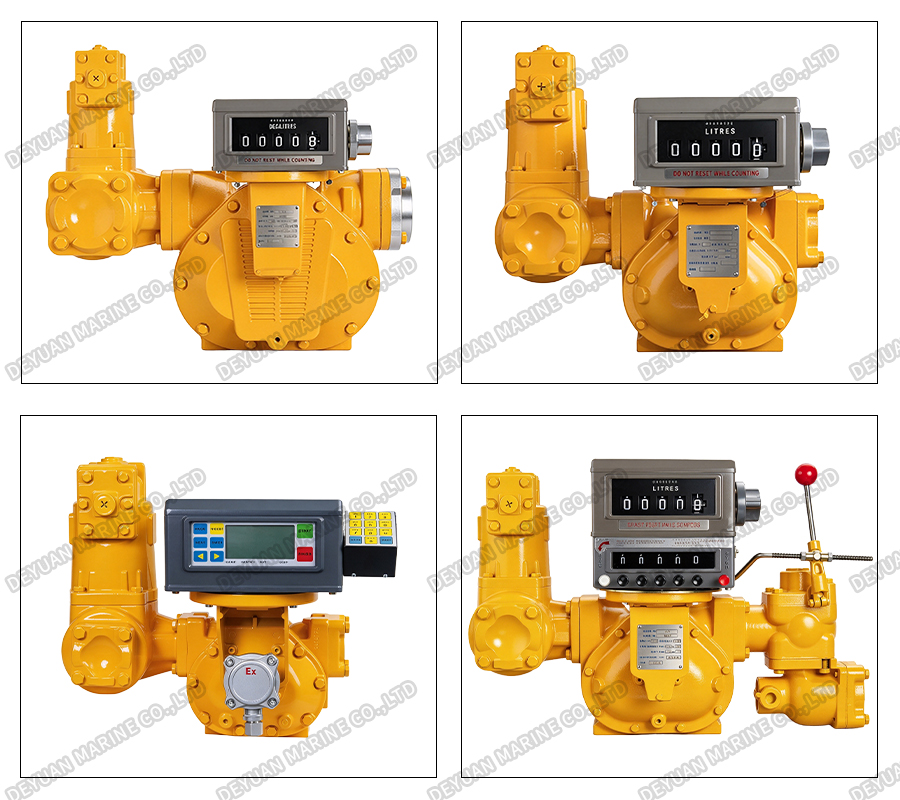

4.Versatile Configurations for Automation: Offers a full selection of accessories, including mechanical registers, electronic registers, manual preset meters, and solenoid valves. It enables "preset volume delivery" and "auto-calibration," and can be connected to a ticket printer for efficient operations.

Technical Specifications:

Applications:

Specifically designed for FPSOs, offshore floating fuel stations, port bunkering vessels, and various marine vessels for fuel consumption measurement and commercial trade settlement.
