Product Description

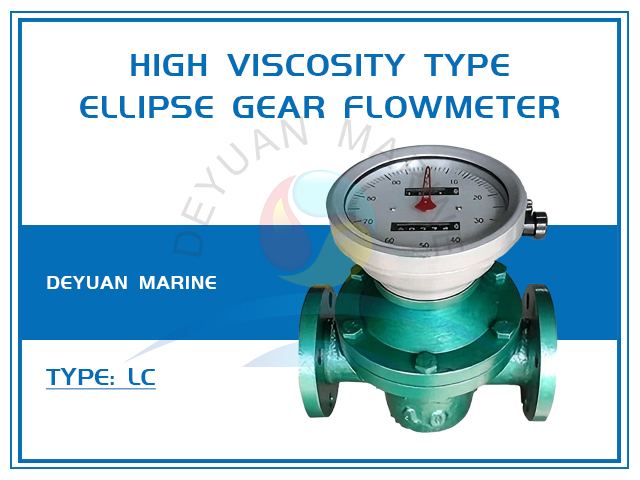

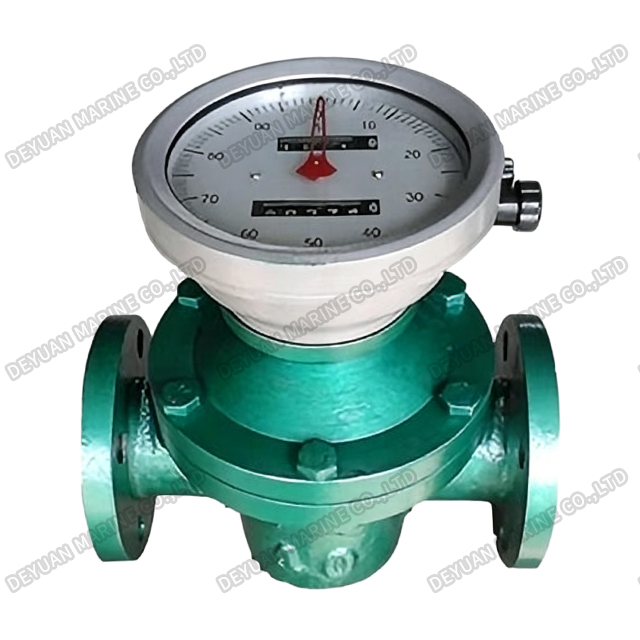

High Viscosity Type Ellipse Gear Flowmeter
Product Introduction:
Our Marine High Viscosity Type Ellipse Gear Flowmeter is a precision positive displacement meter designed for accurate measurement of thick, viscous liquids in marine environments. It excels at handling heavy fuel oil, lubricating oil, hydraulic oil, and other high-viscosity fluids commonly found aboard ships.
The flowmeter features an optimized elliptical gear mechanism with enlarged internal clearances and heavy-duty bearings, allowing smooth operation with viscosities up to 2000+ mPa·s. Harsh marine conditions are no challenge due to its corrosion-resistant stainless steel or Cast Iron housing, explosion-proof construction, and CCS type approval.
Main Technical Specification:
| Material | cast iron, cast steel, stainless steel |
| Nominal pressure | 1.6MPa（cast iron）；2.5、4.0、6.3 MPa（cast stee）；1.6、2.5 MPa（stainless steel） |
| Liquid viscosity to be measured | 200~2000 (mPa.s) |
| Liquid temp. to be measured | -10 ~ 100℃ |
| Accuracy | 0.5、0.2 |
| Nominal diameter | 15 ~ 200mm |
Flow Range:
| Model | DN(mm) | Liquid viscosity tobe measured (mPa.s) | |
| 200~2000 | |||
| LC-NA(E)15 | 15 | Flow rate range (m³/h) | 0.075~0.75 |
| LC-NA(E)20 | 20 | 0.15~1.5 | |
| LC-NA(E)25 | 25 | 0.3~3 | |
| LC-NA(E)40 | 40 | 0.75~7.5 | |
| LC-NA(E)50 | 50 | 1.2~12 | |
| LC-NA(E)80 | 80 | 3~30 | |
| LC-NA(E)100 | 100 | 5~50 | |
| LC-NA(E)150 | 150 | 9.5~95 | |
| LC-NA(E)200 | 200 | 17~170 | |
Deyuan Marine provides one-stop sourcing services and offers tailor-made products on request.
