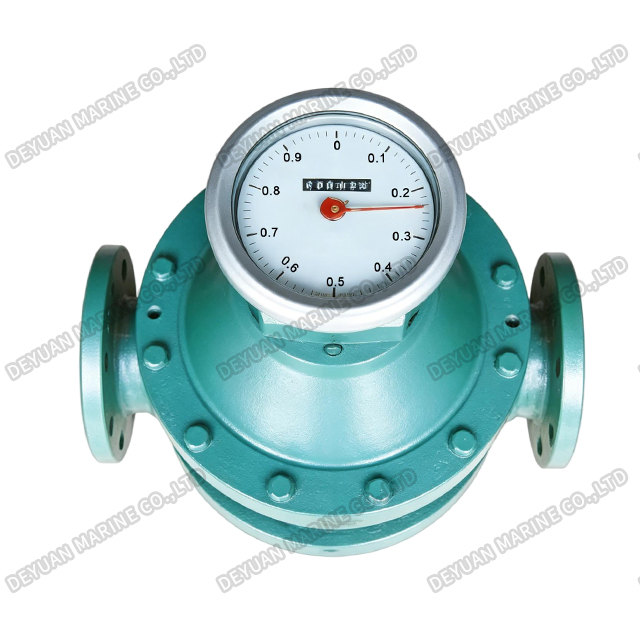

Marine LC Type Ellipse Gear Flowmeter
Product Introduction:
Our Marine Ellipse Gear Flowmeter is a positive displacement flow meter designed for precise measurement of viscous, clean, or lubricating liquids in marine applications. It operates on the elliptical gear principle, where two interlocking elliptical gears rotate with each volume of liquid passing through, ensuring high accuracy and repeatability.
Ellipse gear flowmeter is a volume type flowmeter, which measure liquid summation through pipeline. It can be used for ship, chemical, petroleum, medicine, electric power, metallurgy and food etc.
Main Technical Specification:
| Material | cast iron, cast steel, stainless steel |
| Nominal pressure | 1.6MPa（cast iron）；2.5、4.0、6.3 MPa（cast stee）；1.6、2.5 MPa（stainless steel） |
| Liquid temp. to be measured | -10 ~ 100℃ |
| Accuracy | 0.5、0.2 |
| Nominal diameter | 10 ~ 200mm |
Flow Range:
| MODEL | DN | Liquid viscosity tobe measured (mPa.s) | ||||||||||
| <0.3 | 0.3~0.8 | 0.8~2 | 2~8 | 8~200 | 200~1000 | 1000~2000 | ||||||
| Precision class | 0.5 | 0.5 | 0.2 | 0.5 | 0.2 | 0.5 | 0.2 | 0.5 | 0.2 | 0.5 | 0.5 | |
| LC-A(E)10 | 10 | 0.2-0.4 | 0.08-0.4 | 0.1-0.4 | 0.08-0.4 | 0.08-0.4 | 0.04-0.4 | 0.06-0.3 | 0.03-0.3 | 0.3-0.2 | ||
| LC-A(E)15 | 15 | 0.8-1.5 | 0.08-0.4 | 0.3-1.5 | 0.3-1.5 | 0.3-1.5 | 0.15-1.5 | 0.2-1.0 | 0.1-1.05 | 0.075-0.75 | ||
| LC-A(E)20 | 20 | 1.5-3 | 1-3 | 0.3-1.5 | 0.6-3 | 0.4-3 | 0.5-3 | 0.3-3 | 0.42-2.1 | 0.21-2.1 | 0.15-1.5 | |
| LC-A(E)25 | 25 | 4-6 | 3-6 | 2-6 | 0.4-3 | 1.2-6 | 0.8-6 | 1-6 | 0.6-6 | 0.84-4.2 | 0.42-4.2 | 0.3-3 |
| LC-A(E)40 | 40 | 9-15 | 7.5-15 | 5-15 | 0.8-6 | 3-15 | 2-15 | 2.5-15 | 1.5-15 | 2.1-10.5 | 1.05-10.5 | 0.75-7.5 |
| LC-A(E)50 | 50 | 10-24 | 8-24 | 8-24 | 2-15 | 4.8-24 | 3-24 | 4-24 | 2.4-24 | 3.36-16.8 | 1.68-16.8 | 1.2-12 |
| LC-A(E)80 | 80 | 30-60 | 24-60 | 20-60 | 3-24 | 12-60 | 6-60 | 10-60 | 6-60 | 8.4-42 | 4.2-42 | 3-30 |
| LC-A(E)100 | 100 | 50-100 | 40-100 | 34-100 | 10-100 | 20-100 | 10-100 | 16-100 | 10-100 | 14-70 | 6-70 | 5-50 |
| LC-A(E)150 | 150 | 95-190 | 75-190 | 64-190 | 19-190 | 38-190 | 19-190 | 32-190 | 19-190 | 26.6-133 | 13.3-133 | 9.5-95 |
| LC-A(E)200 | 200 | 170-340 | 140-340 | 114-340 | 34-340 | 68-340 | 34-340 | 56-340 | 34-340 | 47.6-238 | 23.8-238 | 17-170 |
| Note: when the temperature of liquid to be measured is higher than 80℃ , max. flow rate of flow meter is 90% of designed max. flow rate, min. flow rate if 120% of designed min. flow rate. | ||||||||||||
| MODEL | DN | Liquid viscosity to be measured (mPa.s） | ||||||
| <0.3 | 0.3~0.8 | 0.8~2 | 2~8 | 8~200 | 200~1000 | 1000~2000 | ||
| LC-B10 | 10 | 0.5-0.75 | 0.2-0.4 | 0.25-0.75 | 0.15-0.75 | 0.13-0.75 | 0.05-0.75 | 0.03-0.75 |
| LC-B15 | 15 | 1-1.5 | 0.75-1.5 | 0.5-1.5 | 0.3-1.5 | 0.25-1.5 | 0.1-1.05 | 0.075-0.75 |
| LC-B20 | 20 | 2-3 | 1.5-3 | 1-3 | 0.6-3 | 0.5-3 | 0.21-2.1 | 0.15-1.5 |
| LC-B25 | 25 | 4-6 | 3-6 | 2-6 | 1.2-6 | 1-6 | 0.42-4.2 | 0.3-3 |
| LC-B40 | 40 | 8-20 | 7-20 | 2.5-20 | 2-20 | 2-20 | 2-20 | 1-10 |
| LC-B50 | 50 | |||||||
| LC-B80 | 80 | 24-60 | 20-60 | 12-60 | 8-60 | 6-60 | 4.5-45 | 3-30 |
| LC-B100 | 100 | 40-100 | 38-100 | 34-100 | 20-100 | 16-100 | 14-70 | 5-50 |
| LC-B150 | 150 | 75-190 | 70-190 | 64-190 | 38-190 | 32-190 | 28-135 | 9.5-95 |
| LC-B200 | 200 | 140-340 | 125-340 | 114-340 | 68-340 | 56-340 | 48-238 | 17-170 |

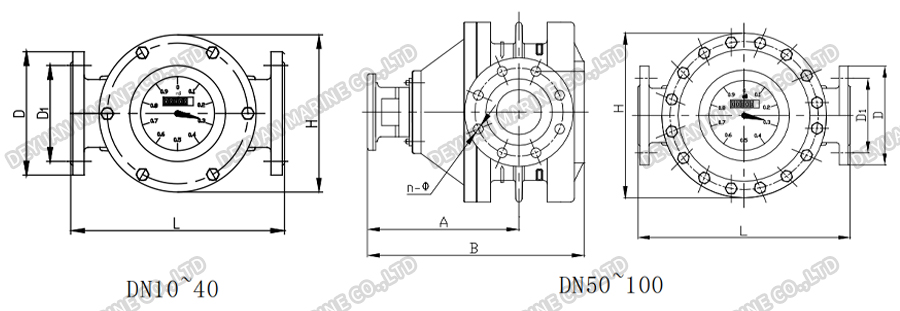

Outline Dimensions(DN10~100):

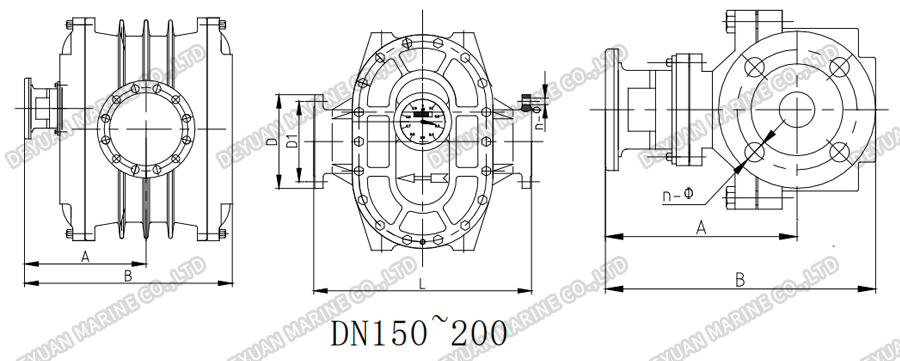

Outline Dimensions(DN150~200):
Outline Dimensions For Cast Iron Type (Unit: mm):
| model | DN | L | H | B | A | D | D₁ | N(pc) | ~ |
| LC-A10 | 10 | 150 | 100 | 210 | 165 | 90 | 60 | 4 | 14 |
| LC-A15 | 15 | 170 | 118 | 226 | 175 | 95 | 65 | 4 | 14 |
| LC-A20 | 20 | 200 | 150 | 238 | 180 | 105 | 75 | 4 | 14 |
| LC-A25 | 25 | 260 | 180 | 246 | 194 | 115 | 85 | 4 | 14 |
| LC-A40 | 40 | 245 | 180 | 271 | 200 | 145 | 110 | 4 | 18 |
| LC-A50 | 50 | 340 | 250 | 372 | 285 | 160 | 125 | 4 | 18 |
| LC-A80 | 80 | 420 | 325 | 433 | 360 | 195 | 160 | 8 | 18 |
| LC-A100 | 100 | 515 | 418 | 458 | 380 | 220 | 180 | 8 | 18 |
| LC-A150 | 150 | 540 | 510 | 557 | 400 | 280 | 240 | 8 | 23 |
| LC-A200 | 200 | 650 | 650 | 720 | 476 | 340 | 295 | 12 | 23 |
Outline Dimensions For Cast Steel Type (Unit: mm):
| model | DN | L | H | B | A | D | D₁ | N(pc) | ~ |
| LC-E15 | 15 | 200 | 120 | <270 | 180 | 95 | 65 | 4 | 14 |
| LC-E20 | 20 | 230 | 150 | <282 | 190 | 105 | 75 | 4 | 14 |
| LC-E25 | 25 | 280 | 202 | <290 | 198 | 115 | 85 | 4 | 14 |
| LC-E40 | 40 | 265 | 184 | <350 | 222 | 150 | 110 | 4 | 18 |
| LC-E50 | 50 | 265 | 184 | <350 | 306 | 165 | 125 | 4 | 18 |
| LC-E80 | 80 | 450 | 335 | <470 | 334 | 200 | 160 | 8 | 18 |
| LC-E100 | 100 | 555 | 440 | <498 | 348 | 220 | 180 | 8 | 18 |
| LC-E150 | 150 | 540 | 510 | 557 | 400 | 280 | 240 | 8 | 23 |
| LC-E200 | 200 | 650 | 650 | 720 | 476 | 340 | 295 | 12 | 23 |
Outline Dimensions For Stainless Steel Type (Unit: mm):
| Model | DN | L | H | B | A | D | D₁ | N(pc) | ~ |
| LC-B10 | 10 | 179 | 100 | <270 | 167 | 90 | 60 | 4 | 14 |
| LC-B15 | 15 | 200 | 120 | 216 | 172 | 95 | 65 | 4 | 14 |
| LC-B20 | 20 | 230 | 150 | <282 | 225 | 105 | 75 | 4 | 14 |
| LC-B25 | 25 | 280 | 202 | <290 | 232 | 115 | 85 | 4 | 14 |
| LC-B40 | 40 | 265 | 184 | <350 | 265 | 150 | 110 | 4 | 18 |
| LC-B50 | 50 | 265 | 184 | <350 | 265 | 165 | 125 | 4 | 18 |
| LC-B80 | 80 | 300 | 247 | <470 | 324 | 200 | 160 | 8 | 18 |
| LC-B100 | 100 | 515 | 400 | <498 | 373 | 220 | 180 | 8 | 18 |
| LC-B150 | 150 | 540 | 515 | 554 | 397 | 280 | 240 | 8 | 23 |
| LC-B200 | 200 | 650 | 650 | 607 | 399 | 340 | 295 | 12 | 23 |
Note: Outline dimensions for cast steel high temp. ellipse gear flow meter: DN15-DN25, sizes for A and B add 160mm (have hot extend tube), other sizes are same as the table above; DN40 － DN200, sizes for A and B add 300mm (have hot extend tube), other sizes are same as the table above.
