Model F Both Side Opened/Closed Non-weathertight Hatch Cover (Dog Clip)

  • DEYUAN MARINE

Product Description

Small size steel hatch cover
CB*3728-1995

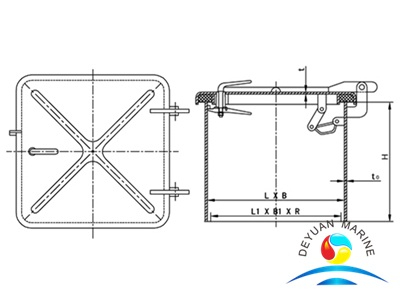

Model F Both Side Opened/Closed Non-weathertight Hatch Cover (Dog clip)

(mm)
Nominal size clear size Cover plate thickness Coaming thickness Weight of Corresponding Height (kg)
L*B L1*B1*R t t0 100 150 200 250 300 400 450 500 600 800
450*630 420*600*100 4 4 30 33 36 39 42 48 52 55 61 74
6 33 38 43 48 52 62 67 72 81 101
6 6 40 45 49 54 59 69 74 78 88 107
8 43 49 56 62 69 82 88 94 107 133
530*530 500*500*100 4 4 29 32 35 39 42 48 51 54 61 72
6 33 37 42 47 52 61 66 70 80 99
6 6 39 44 48 53 58 68 72 77 97 105
8 42 49 55 61 68 80 87 93 105 131
630*630 600*600*100 4 4 35 39 43 46 50 57 61 65 72 87
6 39 45 51 56 62 73 79 85 96 119
6 6 48 54 59 65 71 82 88 93 105 128
8 52 59 67 75 82 97 105 112 128 158
630*830 600*800*100 4 4 43 47 51 56 60 69 73 77 86 103
6 47 54 61 67 74 87 94 100 114 140
6 6 58 65 72 78 85 98 105 112 125 151
8 63 72 81 89 98 116 125 134 151 187
830*830 800*800*100 4 4 51 56 60 65 70 80 85 90 100 120
6 56 64 71 79 86 102 109 114 132 162
6 6 70 78 85 93 100 116 123 131 146 175
8 75 85 95 106 116 136 146 156 177 217

Marked sample: Model F hatch cover which nominal size 630*830, cover plate thickness 6, coaming thichness 6, coaming height 100.
Marked as: HATCH COVER F630*830*6-6*100 CB/T 3728-1995
