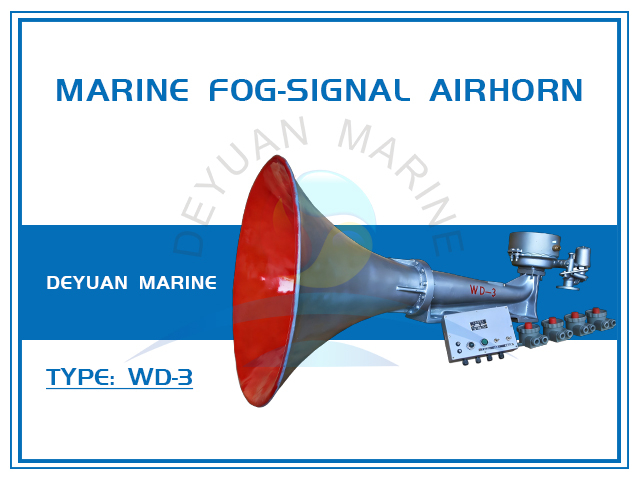

Marine Fog-signal Airhorn Type WD-3
Product Introduction

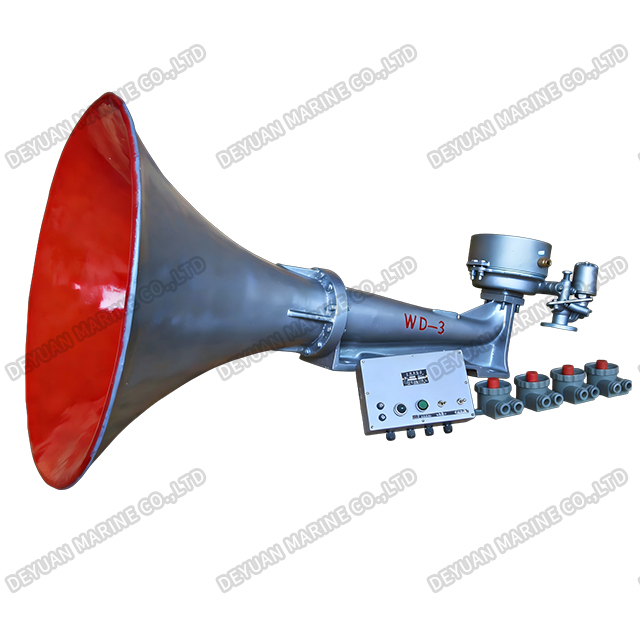

The Marine Fog-signal Airhorn Type WD-3 is a high-performance pneumatic fog signal horn engineered for large vessels of 200 meters and above in length . Designed to meet international maritime collision regulations (COLREGs), this compressed air-driven horn delivers an exceptionally powerful and penetrating low-frequency sound, ensuring your vessel is heard clearly over extreme distances in the most challenging low-visibility conditions such as dense fog, heavy rain, or storms .
The WD-3 operates using compressed air as its power source, driving a diaphragm to vibrate and produce its characteristic resonant tone . This pneumatic system is renowned for its rugged reliability and ability to produce a sustained, authoritative blast that cuts through environmental noise—ideal for long-distance signaling in adverse weather . When paired with an optional automatic fog horn controller (such as the WDK series), the WD-3 can automatically emit different coded sound signals as required for navigation, collision avoidance, and port operations .
Constructed from high-quality, corrosion-resistant materials, the Type WD-3 is built to withstand the harshest marine environments with minimal maintenance requirements . It complies fully with the International Maritime Organization (IMO) Resolution A.1021 (26) and the 1972 International Regulations for Preventing Collisions at Sea (COLREG) . Certification from classification societies such as CCS, ZY, and others is available .

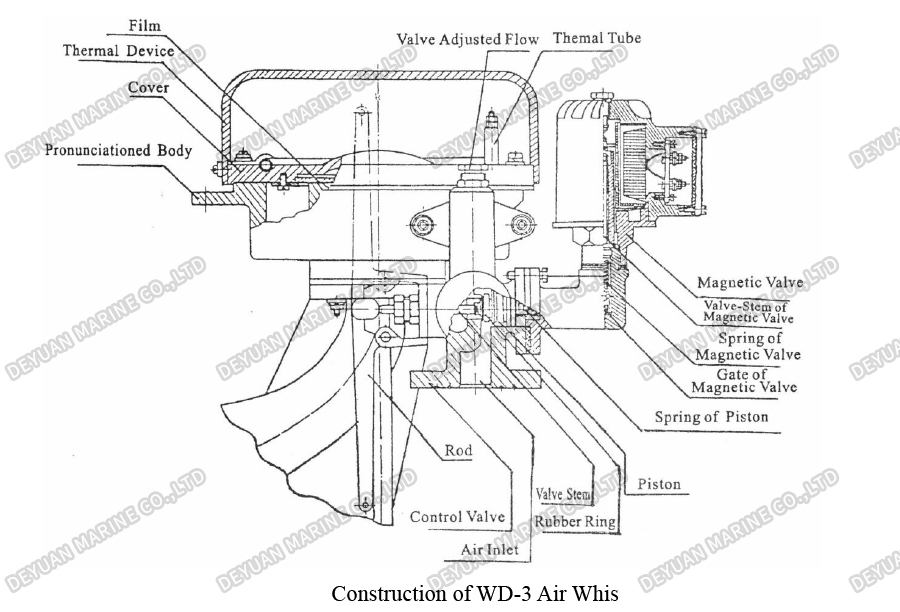

Drawing
Technical Data
| Type | Rated Voltage | Power consumed of Magnetic Valve | DN | Air Pressure | Range of Audibility | 1/3 octave band level at 1 meter | Fundame ntal Frequency | Length of ship | Air Consumed | Volta ge of Heater | Power Consumed of Heater | Weight |
| (DC) | (W) | (mm) | (Mpa) | (mile) | (dB) | (Hz) | (m) | (m³/s) | (V) | (W) | (kg) | |
| WD-1A | 220 110 24 | 45 | 25 | 1.0-0.7 | 1.0 | ≥130 | 250-700 | L<75 | ≤8.3*10³ | 220 110 | 220 | 23 |
| WD-2A | 1.5 | ≥138 | 130-350 | 75≤L<200 | 34 | |||||||
| WD-3 | 2.0 | ≥143 | 70-200 | L≥200 | ≤10*10-3 | 250 | 70 |
Key Features
*Extreme Acoustic Output: Achieves a 1/3 octave band sound pressure level of ≥143 dB at 1 meter, with an audibility range of 2 nautical miles .
*Deep Penetrating Tone: Center frequency range of 70-200 Hz, ensuring maximum penetration and recognition over long distances .
*Pneumatic Operation: Uses compressed air (1.0 MPa) as power, driving a diaphragm to produce a powerful and reliable sound .
*Low Air Consumption: Efficient design with air consumption of ≤8.3×10⁻³ m³/s .
*Cold-Weather Operation: Equipped with an optional anti-icing heater (AC220V, 150W) to ensure reliable performance in freezing conditions .
*Compliance & Certification: Meets IMO and COLREG requirements; available with CCS and other classification society certifications .
*Versatile Application: Suitable for large vessels over 200 meters, including cargo ships, tankers, and bulk carriers navigating open waters .
*Automatic Operation Ready: Can be integrated with an automatic fog signal controller for programmed sound signal emission .

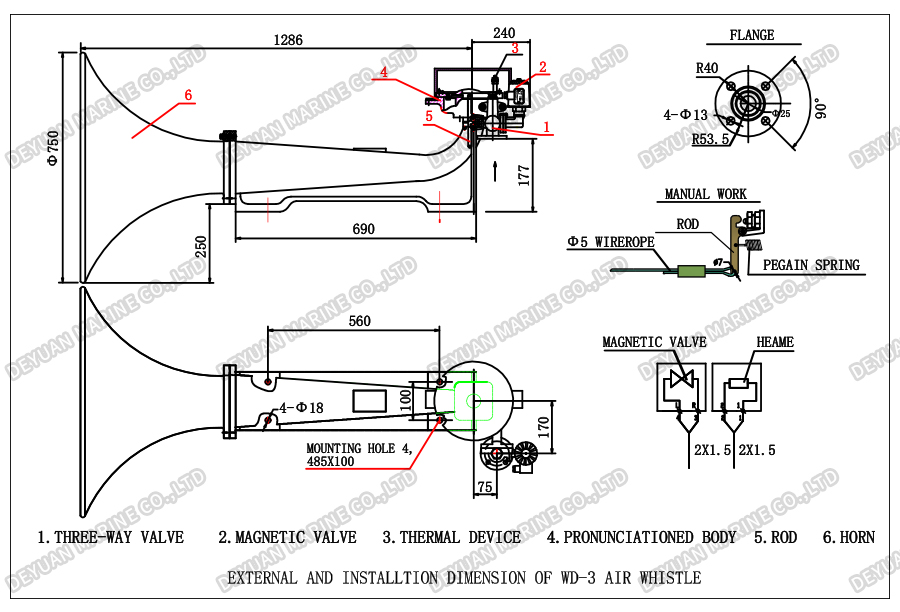

Structural Drawing
