Product Description

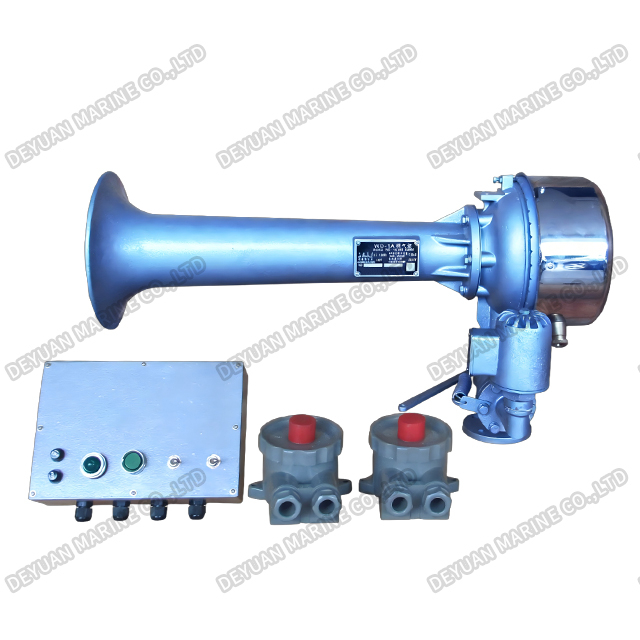

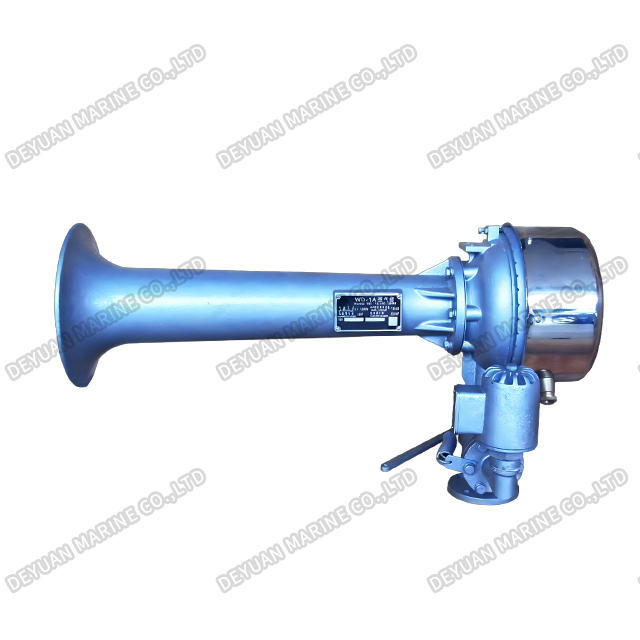

Marine Fog-signal Airhorn Type WD-1A
Product Introduction
The Marine Fog-signal Airhorn Type WD-1A is a high-decibel, corrosion-resistant audible signaling device designed specifically for vessels operating in low-visibility conditions. Engineered to comply with international maritime collision regulations (COLREGs), this airhorn delivers a deep, penetrating tone that ensures your vessel is heard clearly over long distances, even through dense fog or heavy rain.
Constructed from marine-grade aluminum and stainless steel, the WD-1A is built to withstand the harshest saltwater environments. Its robust diaphragm mechanism requires minimal maintenance while providing instantaneous sound emission upon activation. Whether connected to a built-in air compressor or a standalone air tank system, the Type WD-1A offers reliable performance for small boats, yachts, and commercial workboats.
Drawing
Technical Data
| Type | Rated Voltage | Power consumed of Magnetic Valve | DN | Air Pressure | Range of Audibility | 1/3 octave band level at 1 meter | Fundame ntal Frequency | Length of ship | Air Consumed | Volta ge of Heater | Power Consumed of Heater | Weight |
| (DC) | (W) | (mm) | (Mpa) | (mile) | (dB) | (Hz) | (m) | (m³/s) | (V) | (W) | (kg) | |
| WD-1A | 220 110 24 | 45 | 25 | 1.0-0.7 | 1.0 | ≥130 | 250-700 | L<75 | ≤8.3*10³ | 220 110 | 220 | 23 |
| WD-2A | 1.5 | ≥138 | 130-350 | 75≤L<200 | 34 | |||||||
| WD-3 | 2.0 | ≥143 | 70-200 | L≥200 | ≤10*10-3 | 250 | 70 |

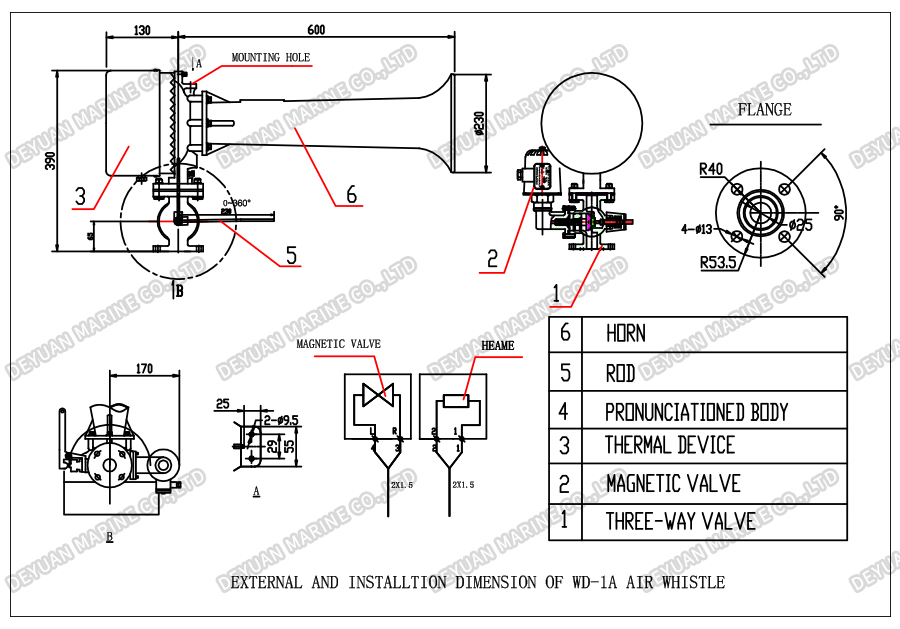

Structural Drawing
