Product Description

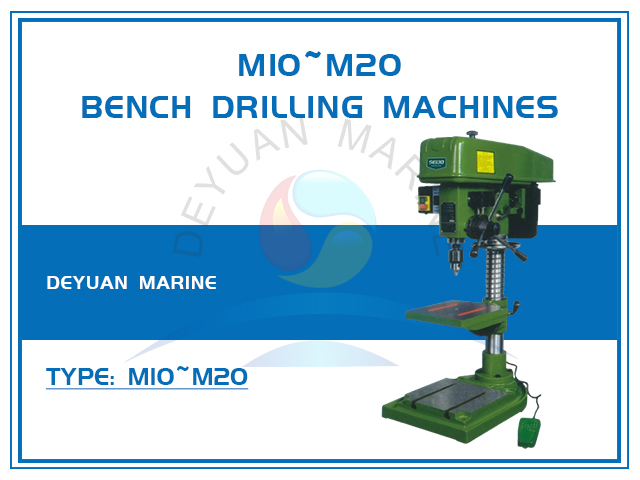

M10~M20 Bench Drilling and Tapping Machines
Our drill and tap machines are versatile tools designed for both drilling and tapping applications.

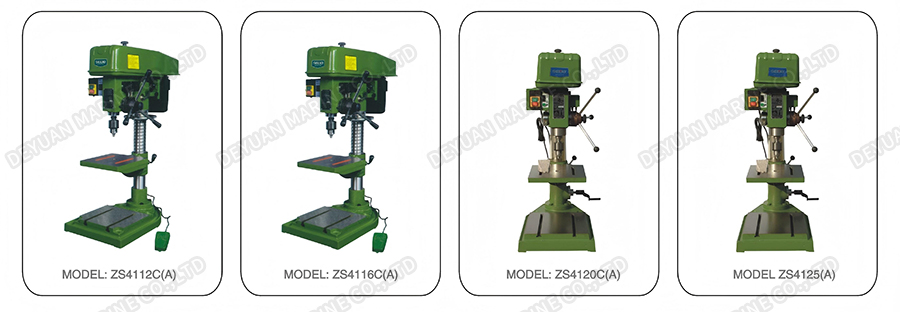

Models
Overview
1. Powerful Performance:
Equipped with motors ranging from 550W to 1100W, these machines deliver robust drilling and tapping capabilities.
2. Versatile Drilling Capacity:
Capable of drilling holes up to 25mm in diameter with thread sizes from M10 to M20, suitable for a wide range of materials and applications.
3. Adjustable and Precise:
Featuring spindle strokes between 100mm and 125mm, and spindle speeds ranging from 250-2000r/min to 320-2700r/min, providing precise control over drilling depth and speed.
4. Compact and Sturdy Design:
With working areas from 235x265mm to 315x335mm and overall heights between 1042mm and 1135mm, these machines are compact yet sturdy, suitable for various workspaces.
5. User-Friendly and Portable:
Packaged in wooden cases measuring 78x45x95cm to 84x52x103cm, ensuring easy transportation and storage.
6. Ideal for Multiple Settings:
Perfect for workshops, manufacturing facilities, and DIY enthusiasts, offering a balance of power, precision, and portability for all your drilling and tapping needs.
Experience the versatility and reliability of our drill and tap machines today!
Data sheet of models
| MODEL | ZS4112C(A) | ZS4116C(A) | ZS4120C(A) | ZS4125(A) |
| Max.Drilling capacity | 12mm/T:M10 | 16mm/T:M12 | 20mm/T:M16 | 25mm/T:M20 |
| Diameter of column | 70mm | 70mm | 85mm | 85mm |
| Spindle stroke | 100mm | 100mm | 125mm | 125mm |
| Distance spindle axis to column surface | 193mm | 193mm | 240mm | 240mm |
| Max.Distance spindle nose to table | 315mm | 340mm | 360mm | 367mm |
| Max.Distance spindle nose to base | 556mm | 580mm | 625mm | 630mm |
| Spindle taper | B16 | MT.2 | MT.2 | MT.3 |
| Spindle speeds range | 320-2700r/min | 320-2700r/min | 295-1350r/min | 250-2000r/min |
| Spindle speeds | 5 | 5 | 4 | 4 |
| Working area of table | 235×265mm | 235x265mm | 290x320mm | 280x300mm |
| Working area of base | 260x280mm | 260x280mm | 315x335mm | 590x375mm |
| Overall height | 1042mm | 1042mm | 1135mm | 1127mm |
| Motor | 550w | 750w | 1100w | 750w |
| G.W/N.W | 110/100kg | 110/100kg | 150/138kg | 150/138kg |
| Ship measurement(Wooden cases) | 78x45x95cm | 78x45x95cm | 84x52x103cm | 82x43x101cm |
