Product Description
6mm~31.5mm Industrial Type Bench Drilling Machines Small And Medium Series
Our small and medium Drilling Machine series offers a range of models designed for precision drilling across various industrial applications. The lineup includes compact benchtop units (Z406 series) with 6mm capacity and high-speed options (up to 12,000 RPM), mid-range models (Z512 series) with 12.7mm capacity and 5-speed options, and heavy-duty floor-standing units (Z516 series) capable of drilling up to 31.5mm.

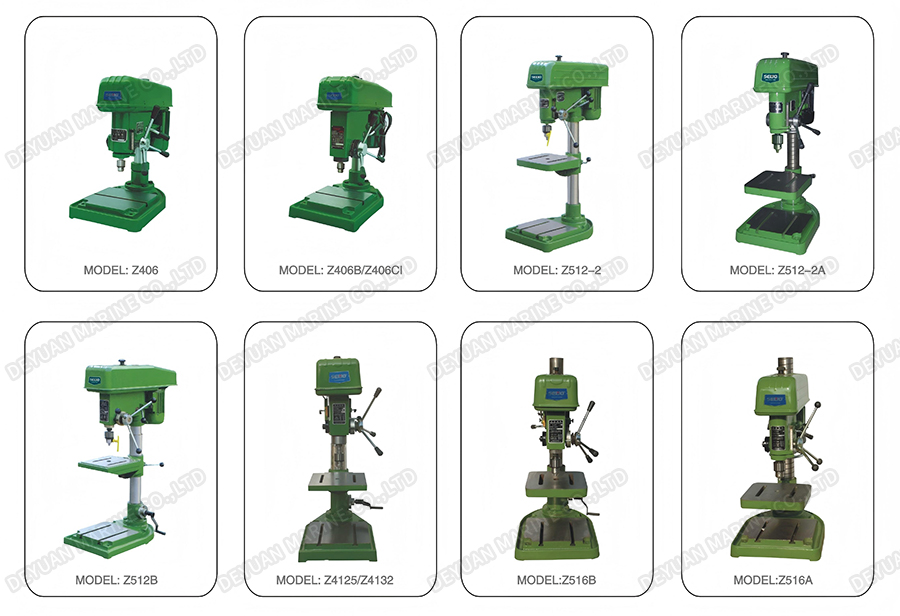

Models Available
Feature
Variable spindle speeds (from 320 to 12,000 RPM)
Durable construction with column diameters from 50-85mm
Adjustable worktables (265x265mm to 280x300mm)
Motor power ranging from 250W to 1100W
Compact to industrial sizes (overall height 556-1127mm)
Suitable for both light workshop and heavy industrial use
The machines feature standardized spindle tapers (B10, B16, MT.2/3) and offer excellent spindle travel (50-125mm) for versatile operation. All models are designed with stability and precision in mind, making them ideal for metalworking, shipyard operations, and general manufacturing applications.
Parameters of each model
| Model | Z406 | Z406B/Z406Cl | Z512-2 | Z512-2A | Z512B | Z4125/Z4132 | Z516B | Z516A |
| Max.Driling capacity(mm) | 6 | 6 | 12.7 | 12.7 | 12.7 | 25/31.5 | 16 | 16 |
| Diameter of column(mm) | 50 | 50 | 70 | 70 | 70 | 85 | 70 | 70 |
| Spindle travel(mm) | 50 | 65 | 100 | 100 | 100 | 125 | 100 | 100 |
| Distance spindce nose to base(mm) | 140 | 140 | 193 | 193 | 193 | 240 | 193 | 193 |
| Max.Distance spindle nose to worktable(mm) | 332 | 332 | 332 | 367 | 332 | 332 | ||
| Max.Distance spindle nose to base(mm) | 225 | 225 | 556 | 556 | 556 | 630 | 556 | 556 |
| Spindle taper | B10 | B10 | B16 | B16 | B16 | MT.3 | MT.2 | MT.2 |
| spindle rpm | 1450-5800 | 2000-12000 1450-5800 | 480-4100 | 480-4100 | 480-4100 | 365-3150 | 480-4100 or 320-2700 | 480-4100 or 320-2700 |
| Spindle speeds range(mm) | 3 | 3 | 5 | 5 | 5 | 5 | 5 | 5 |
| Dimension of worktable surfce(mm) | 265x265 | 265x265 | 265x265 | 280x300 | 265x265 | 265x265 | ||
| Dimension of base(mm) | 200x200 | 200x200 | 250x300 | 250x300 | 250x300 | 590x375 | 250x300 | 250x300 |
| Overall height(mm) | 556 | 615 | 1037 | 1037 | 1037 | 1127 | 1037 | 1037 |
| Motor(W) | 250 | 250 | 550 | 550 | 550 | 1100 | 750 | 750 |
| G.W.N.W. (kg) | 38/32 | 38/32 | 110/100 | 110/100 | 110/100 | 150/140 | 110/100 | 110/100 |
| Packing dimension(cm) | 62x32x56 | 62x32x56 | 78x45x95 | 78x45x95 | 78x45x95 | 82x43x101 | 78x45x95 | 78x45x95 |
